Cylinder head

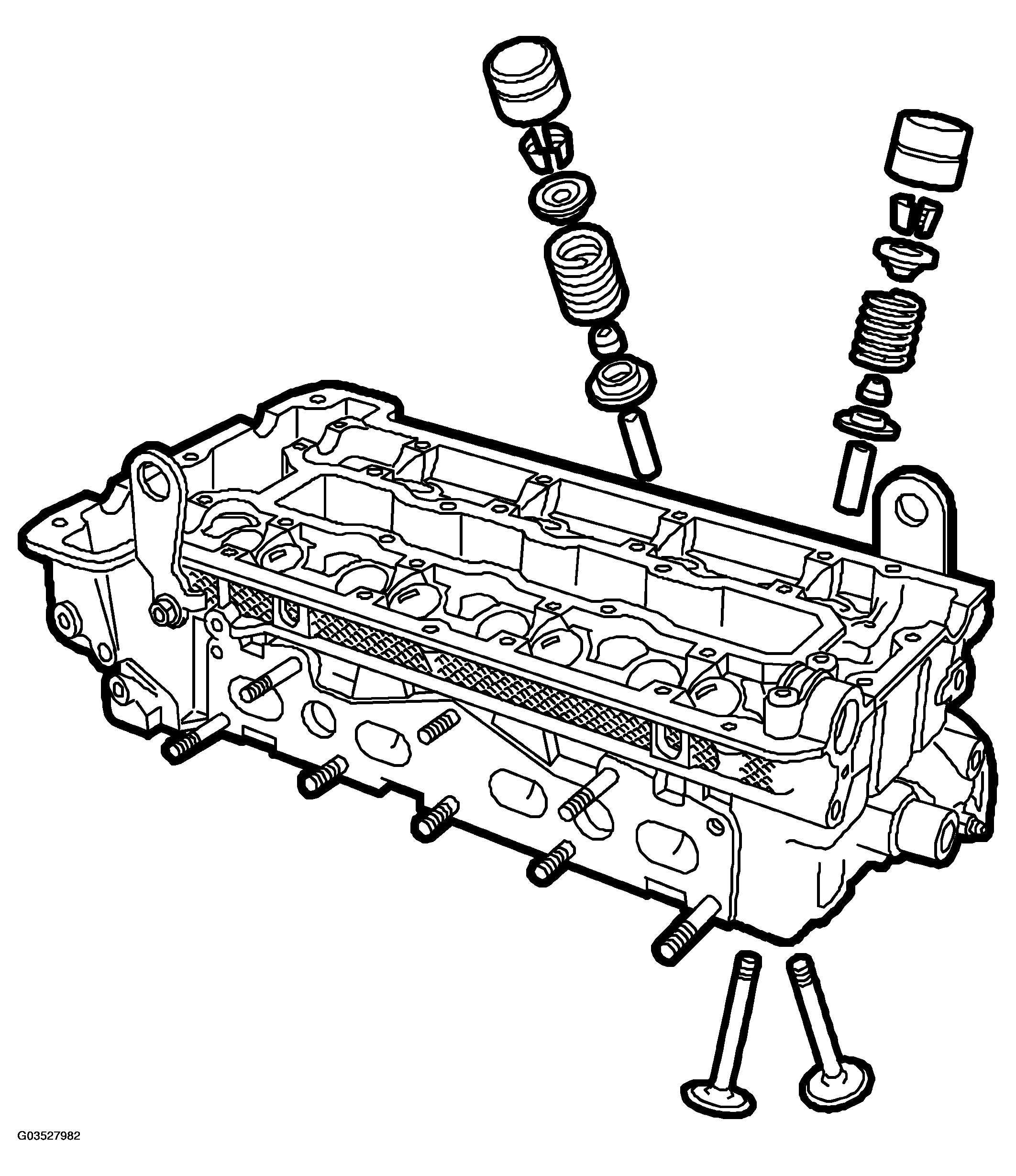

Fig 1: View Of Cylinder Head
G03527982Courtesy of SAAB-SCANIA OF AMERICA, INC.

The cylinder head is precision-manufactured in light alloy and bolted to the cylinder block. The combustion chambers are hemispherical with 4 valves per cylinder and centrally located spark plug. This improves the flow of gases in the cylinders, providing efficient combustion and increased engine power.
