Home >> Saab >> 2002 >> 9-3 SE, 2D Convertible, Automatic >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Basic Engine >> Adjustment - Replacement >> Reducing valve >> To remove

To remove

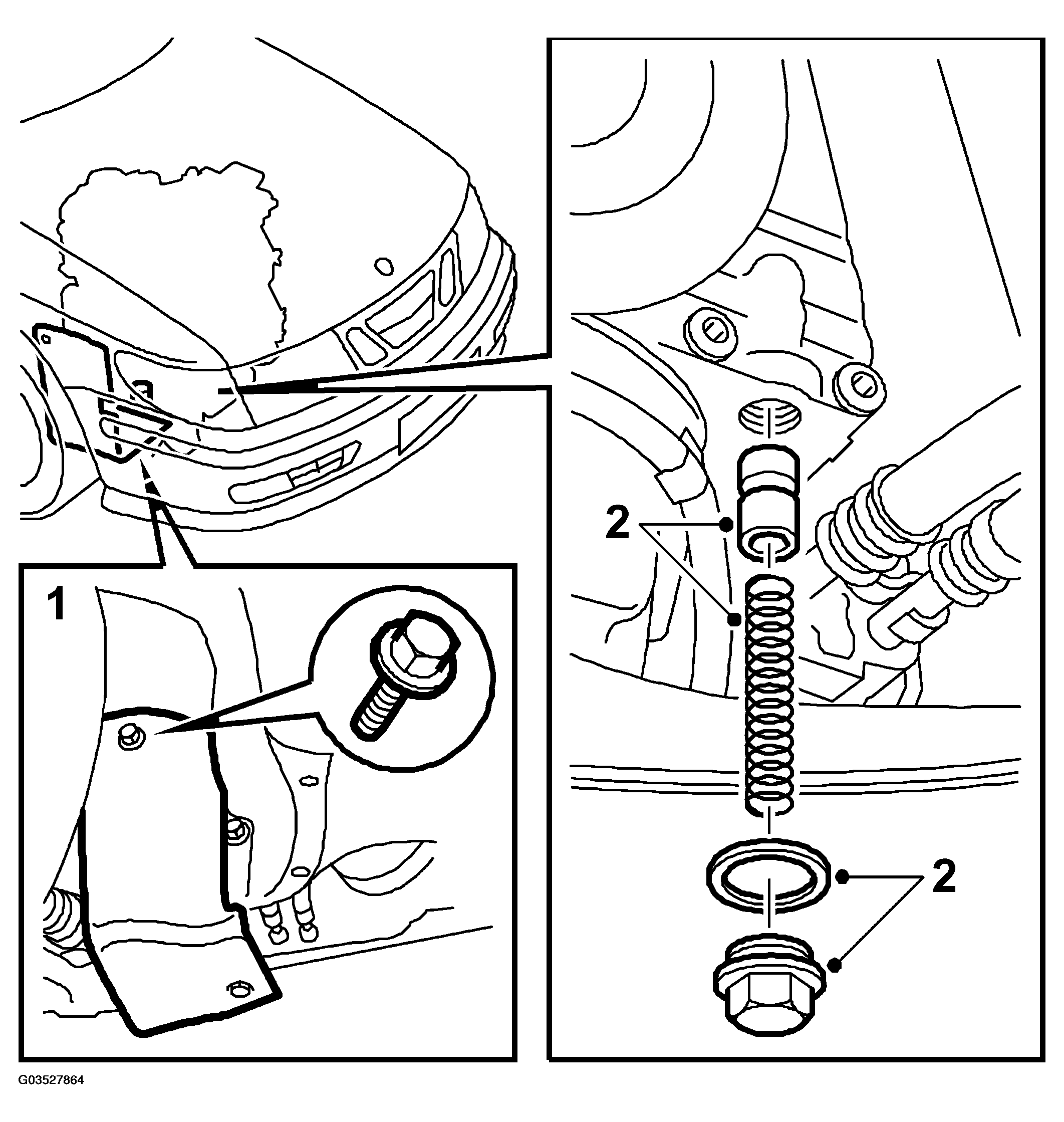

Fig 1: Illustration For Steps 1-2
G03527864Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Raise the car and remove the cover.
  2. Unscrew the plug and extract the spring and reducing valve.
