Receiver For Remote Control

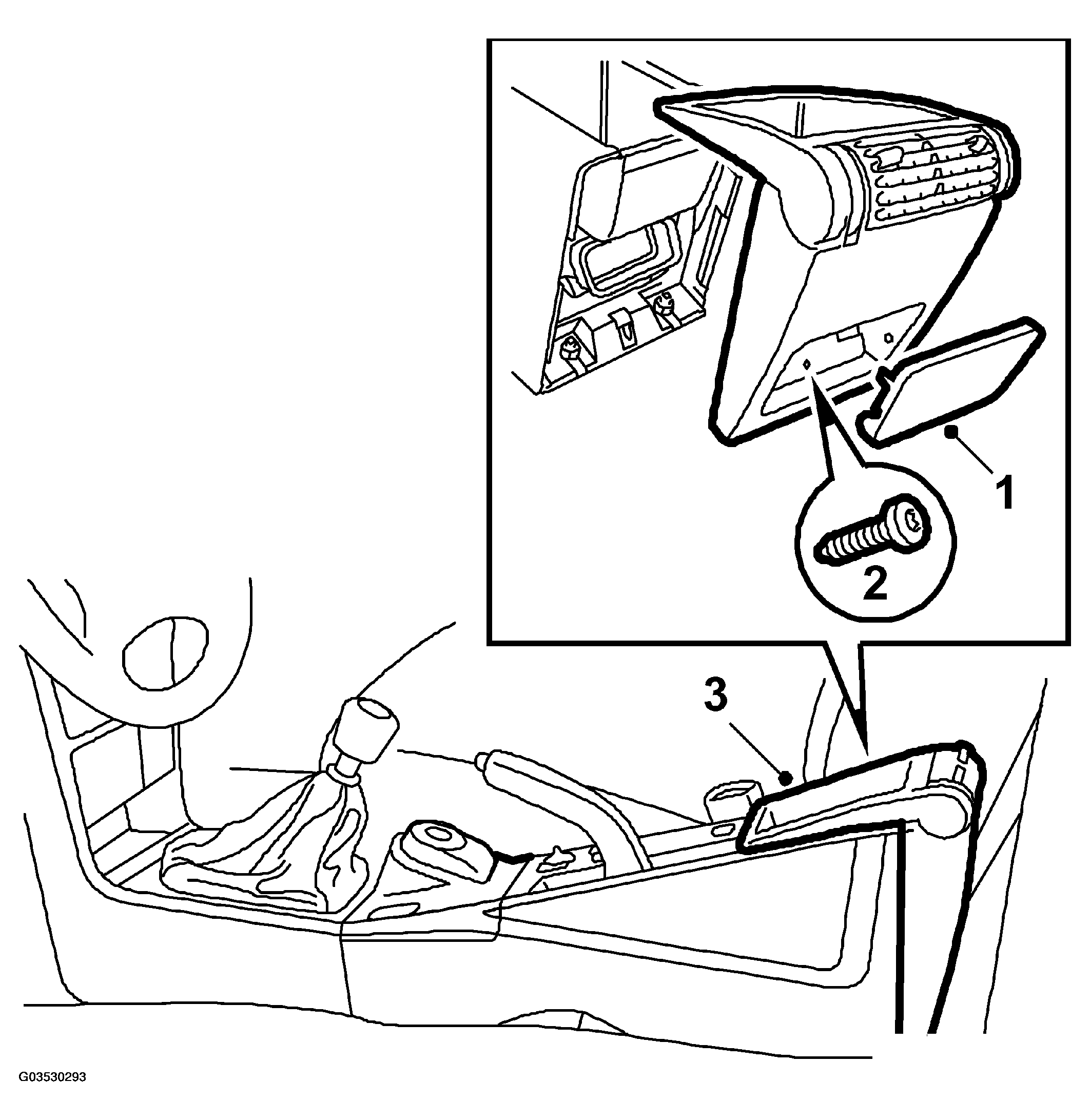

Fig 1: Illustration For Steps 1-3

Courtesy of SAAB-SCANIA OF AMERICA, INC.

NOTE: The remote control receiver and the tilt sensor are both situated underneath the floor console. So if a tilt sensor is to be included in the anti-theft alarm, it should be fitted at the same time as the remote control receiver.

Remove the cover for the rear section of the floor console.
Remove the screws.
Lift off the rear section of the floor console.
Localize the electrical connector for the receiver.

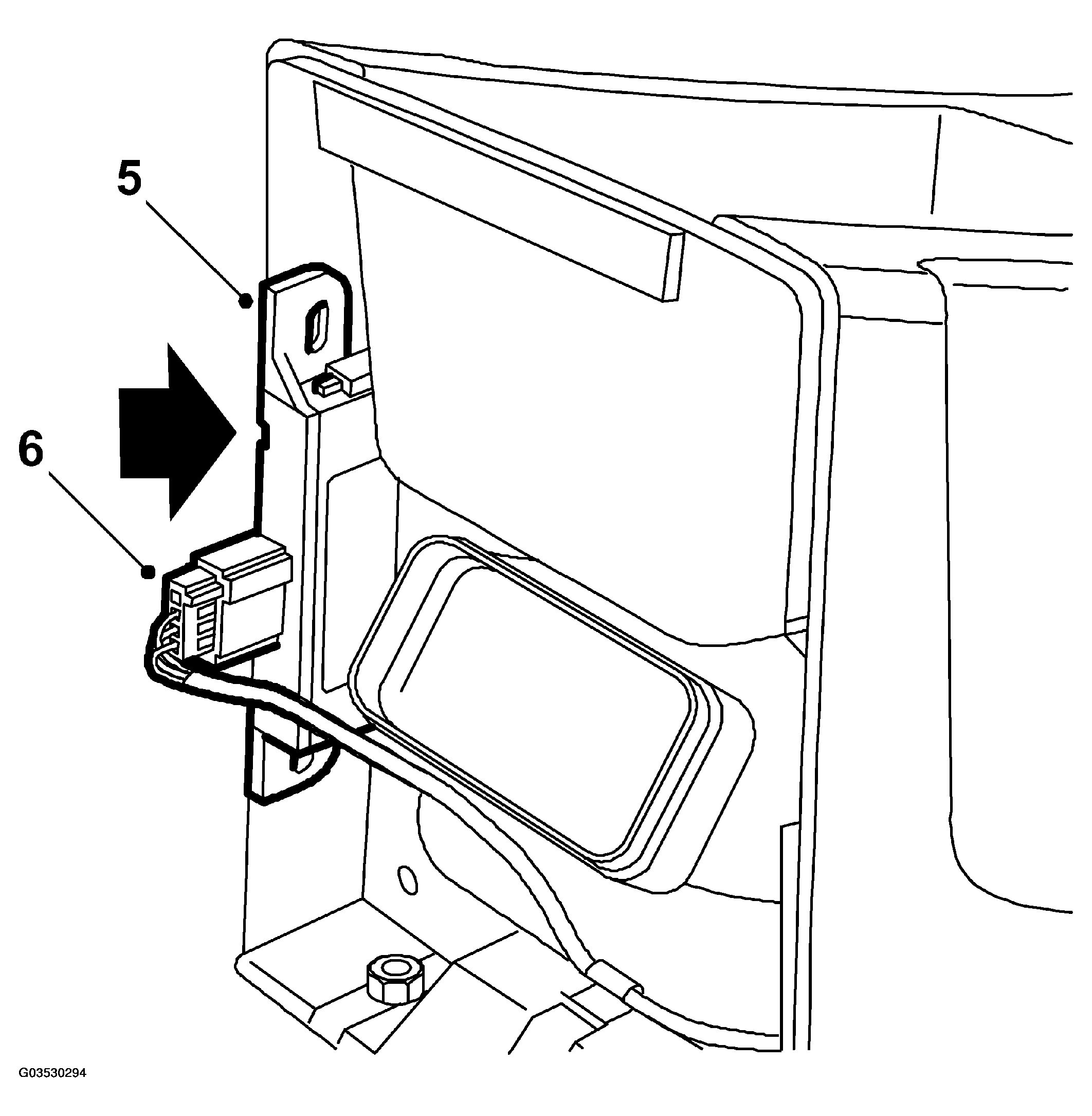

Fig 2: Illustration For Steps 5, 6
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the receiver into its holder.
Replug the connector.
Refit the rear section of the floor console.
