Control module ground: Notes

The control module is grounded at grounding point G43 through pins 31 and 32. The grounding points are connected internally.

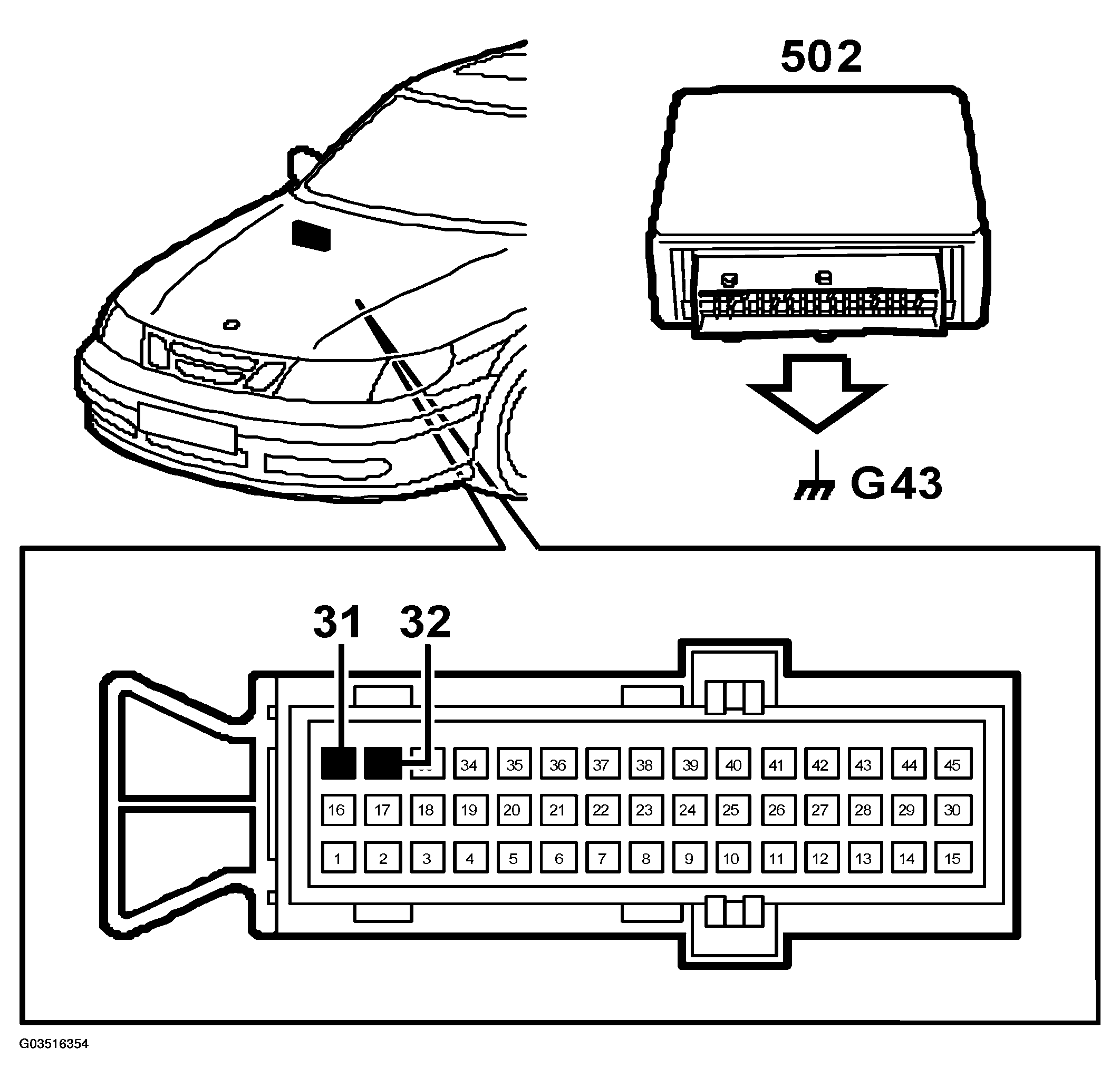

Fig 1: Locating Control Module Grounding Point G43

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fig 2: Control Module Grounding Connection Diagram (G43)

Courtesy of SAAB-SCANIA OF AMERICA, INC.
