Home >> Saab >> 2001 >> 9-5 SE, 4D Sedan >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission >> Technical description >> Bus communication >> Notes

Bus communication: Notes

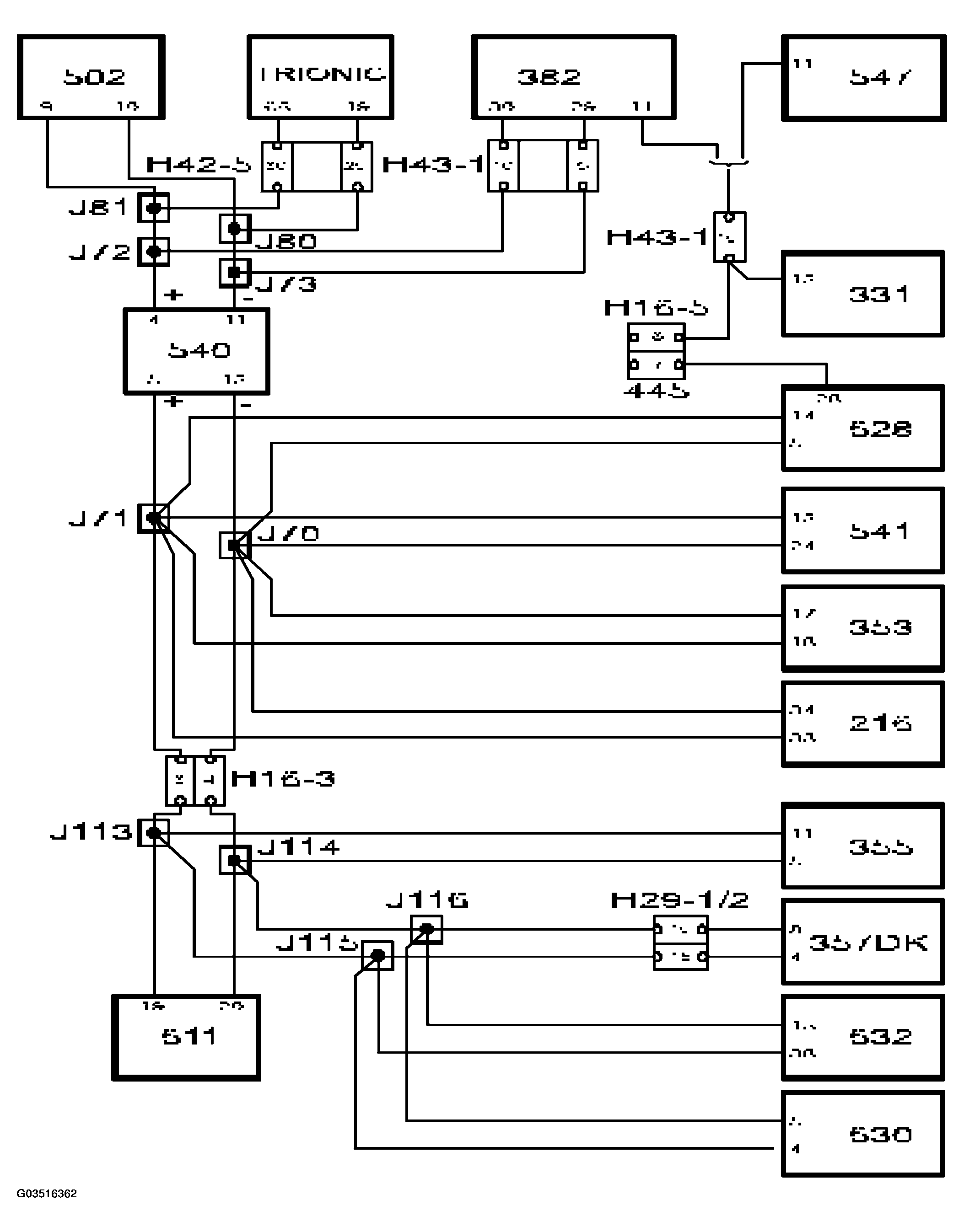

Fig 1: Bus Communication Diagram

G03516362

Courtesy of SAAB-SCANIA OF AMERICA, INC.
