Sensor, output speed

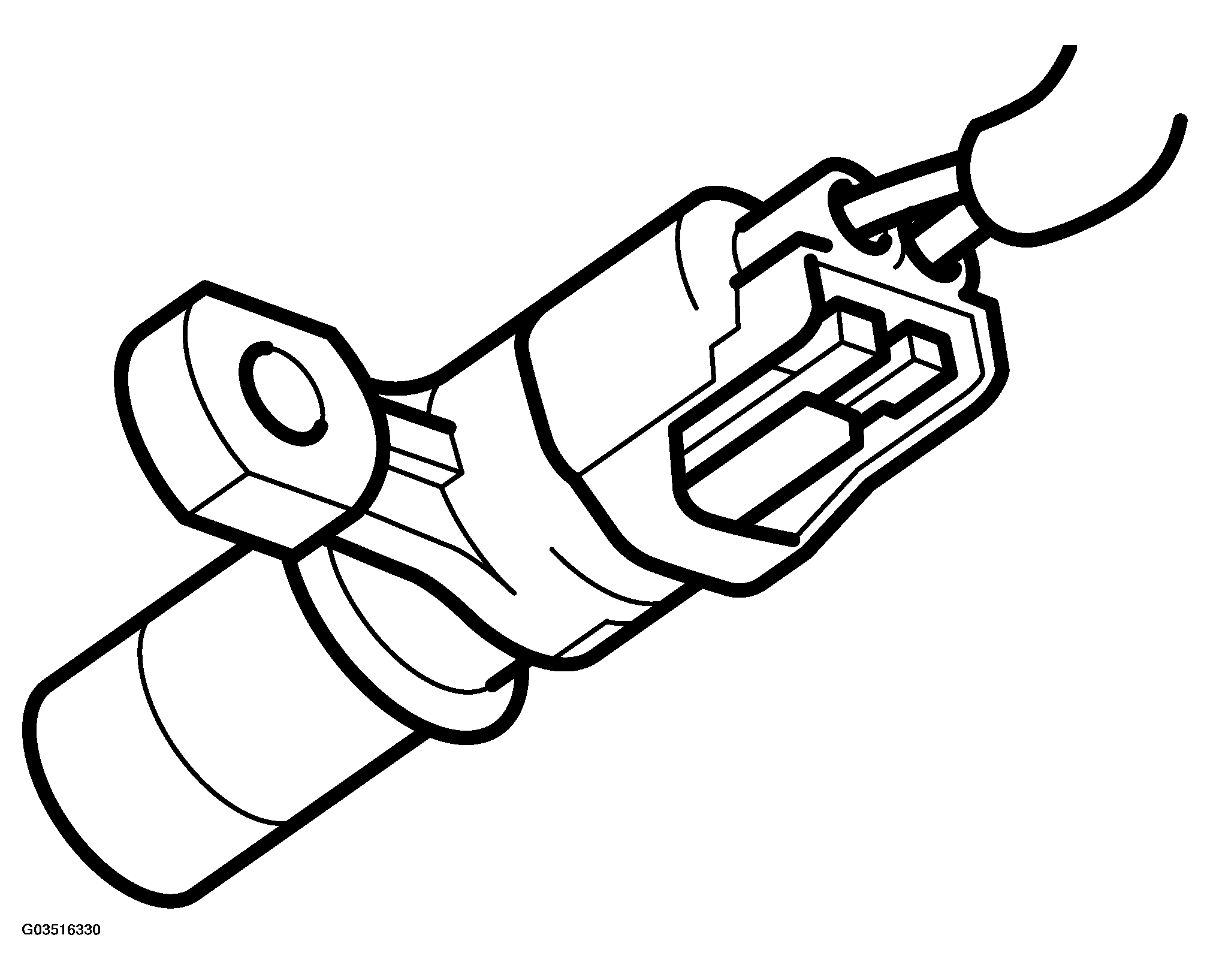

Fig 1: Identifying Output Speed Sensor
G03516330Courtesy of SAAB-SCANIA OF AMERICA, INC.
OUTPUT SPEED SENSOR SPECIFICATIONS

Location On the transmission casing
Type Inductive sensor
Resistance, shift 2-3 at 20°C Ohm 450+/-150
Toothed wheel number of teeth 18
