To remove

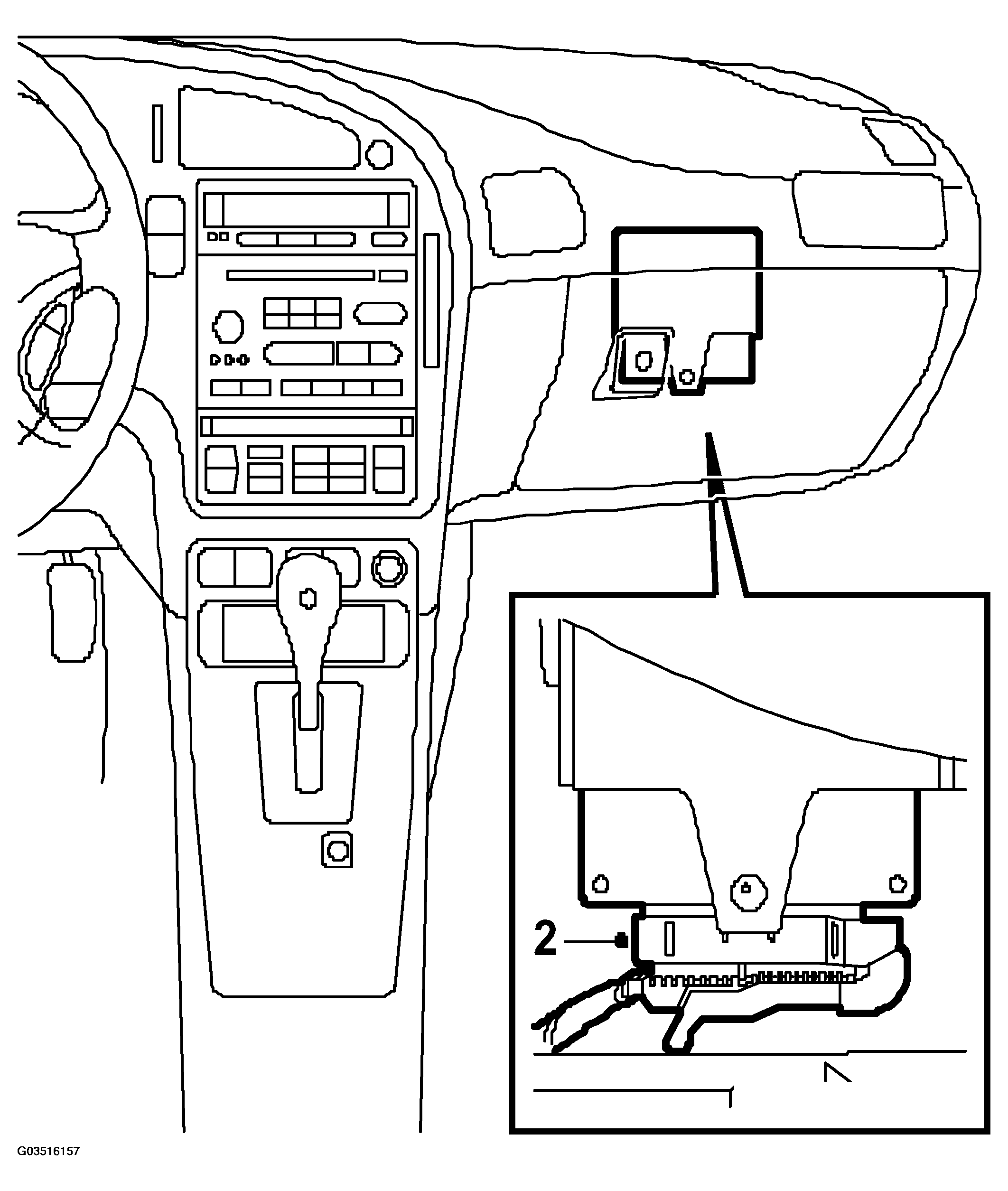

Fig 1: Illustration For Step 2
G03516157Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the lower dashboard section by the passenger seat, see group 8 Body, Climate control system, Interior equipment.
  2. Remove the control module by releasing the catches and unplugging the connector.
IMPORTANT: ESD-SENSITIVE COMPONENT
Earth yourself by touching the car body before plugging in / unplugging components. Do not touch the component pins. Read BEFORE CHANGING A CONTROL MODULE  before changing a control module.
