To remove

  1. Remove the lower part of the dashboard from under the steering wheel (data link connector and floor lighting).

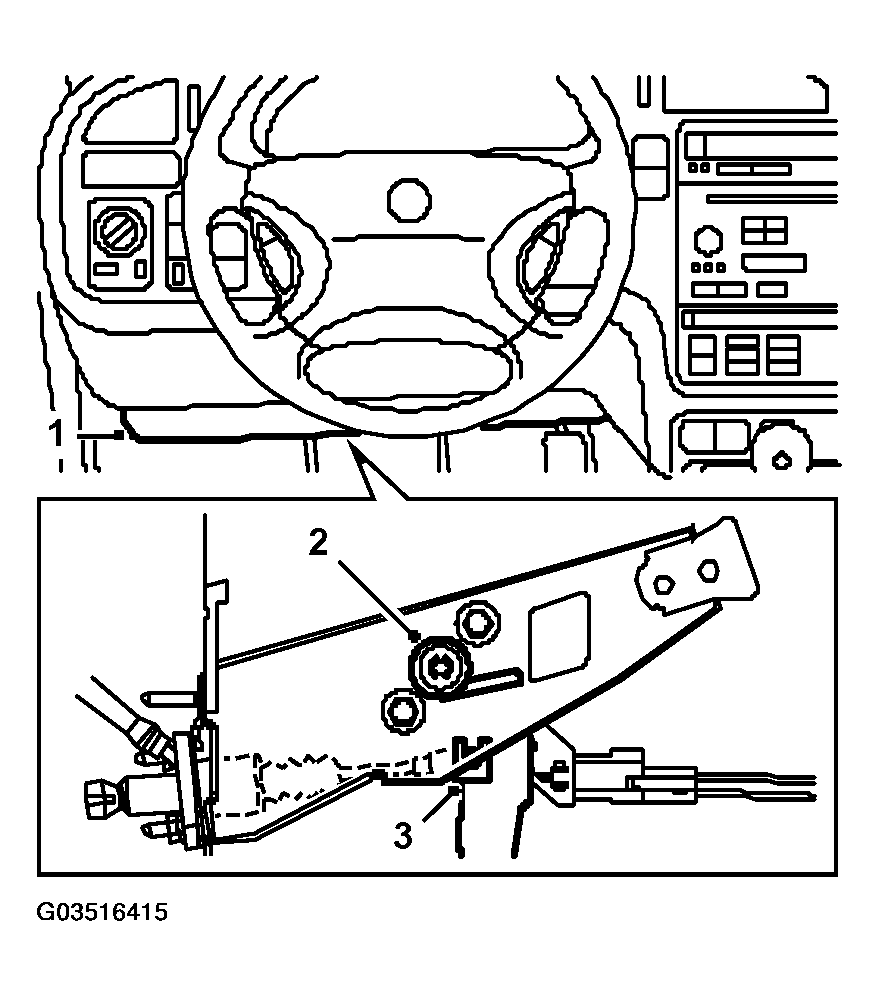

    Fig 1: Illustration For Step 2-3
    G03516415Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Lift the spring from the clutch pedal.
  3. Remove the clip and pin from the clutch pedal.
  4. (LHD) Lift up the central electric unit in the engine bay.

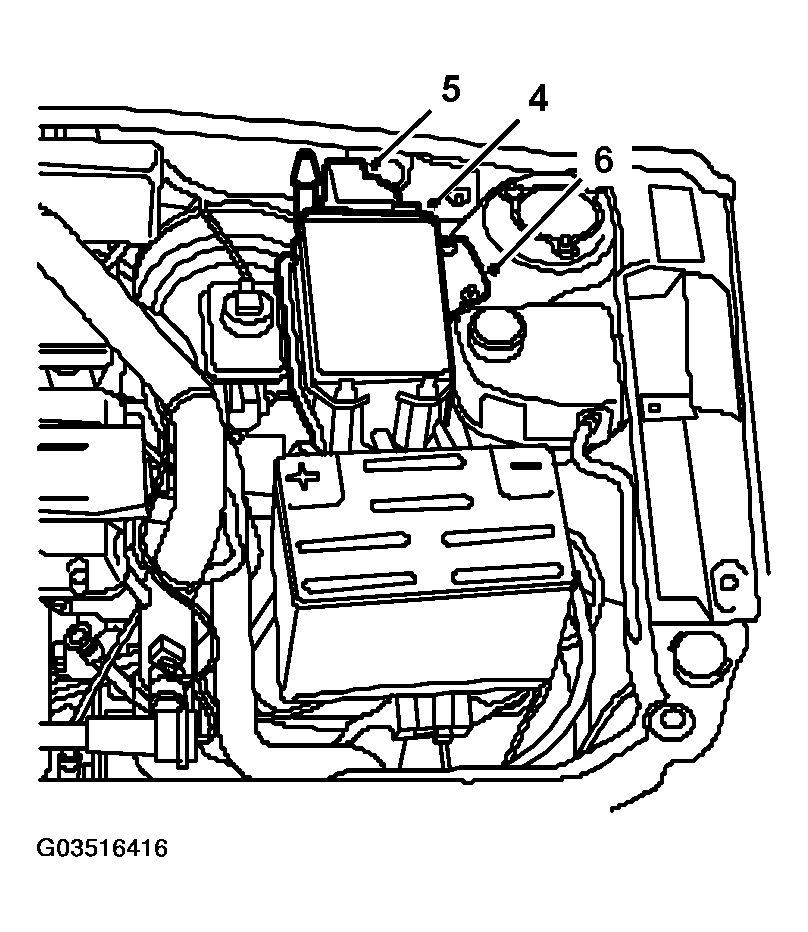

    Fig 2: Illustration For Step 4-6
    G03516416Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. (LHD) Lift up the Maxi fuse holder.
  6. (LHD) Unscrew the bracket for the central electric unit and move it to one side.
  7. (RHD) Remove the cover from the intake manifold.

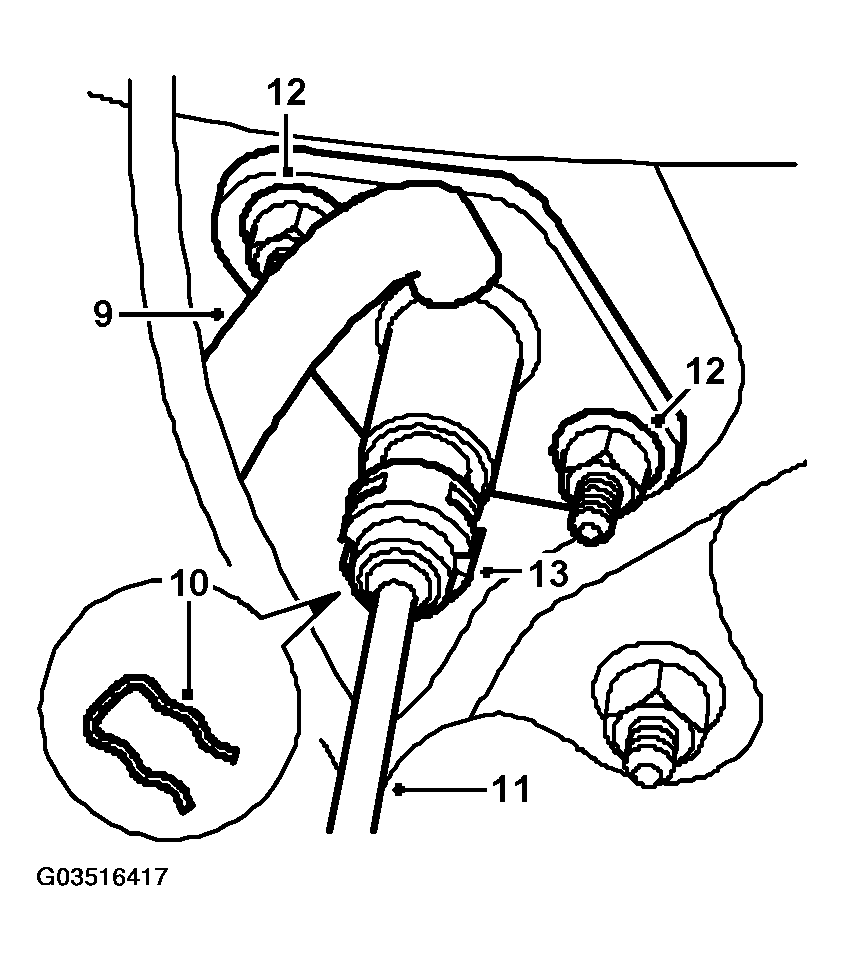

    Fig 3: Illustration For Step 9-13
    G03516417Courtesy of SAAB-SCANIA OF AMERICA, INC.
  8. Draw out the brake fluid from the reservoir with brake bleeder 88 19 096 BLEEDING EQUIPMENT .
  9. Detach the hose from the reservoir.
  10. Undo the clip securing the delivery pipe to the master cylinder.
  11. Remove the delivery pipe.
  12. Undo and remove the nuts securing the master cylinder.
  13. Remove the master cylinder.
  14. Move the hose to the new master cylinder.
