To remove

  1. (LHD) Lift up the central electric unit in the engine bay.

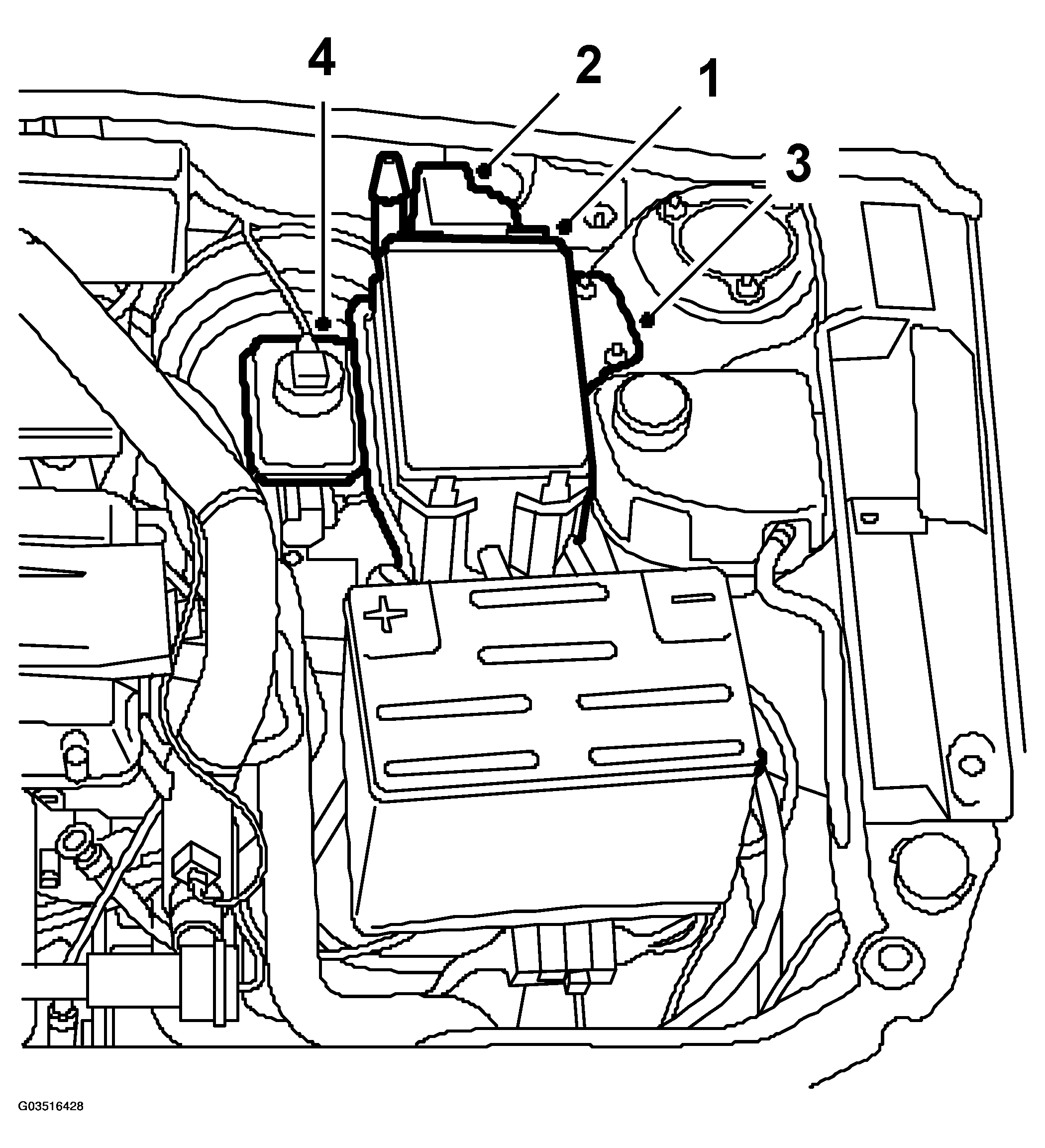

    Fig 1: Illustration For Step 1-4
    G03516428Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. (LHD) Lift up the Maxi fuse holder.
  3. (LHD) Remove the bracket for the central electric unit and move it to one side.
  4. Draw brake fluid from the reservoir. Empty the delivery pipe by connecting brake bleeder 88 19 096 BLEEDING EQUIPMENT  and draw out brake fluid through the bleed nipple.
  5. Undo the clip securing the delivery pipe to the master cylinder.

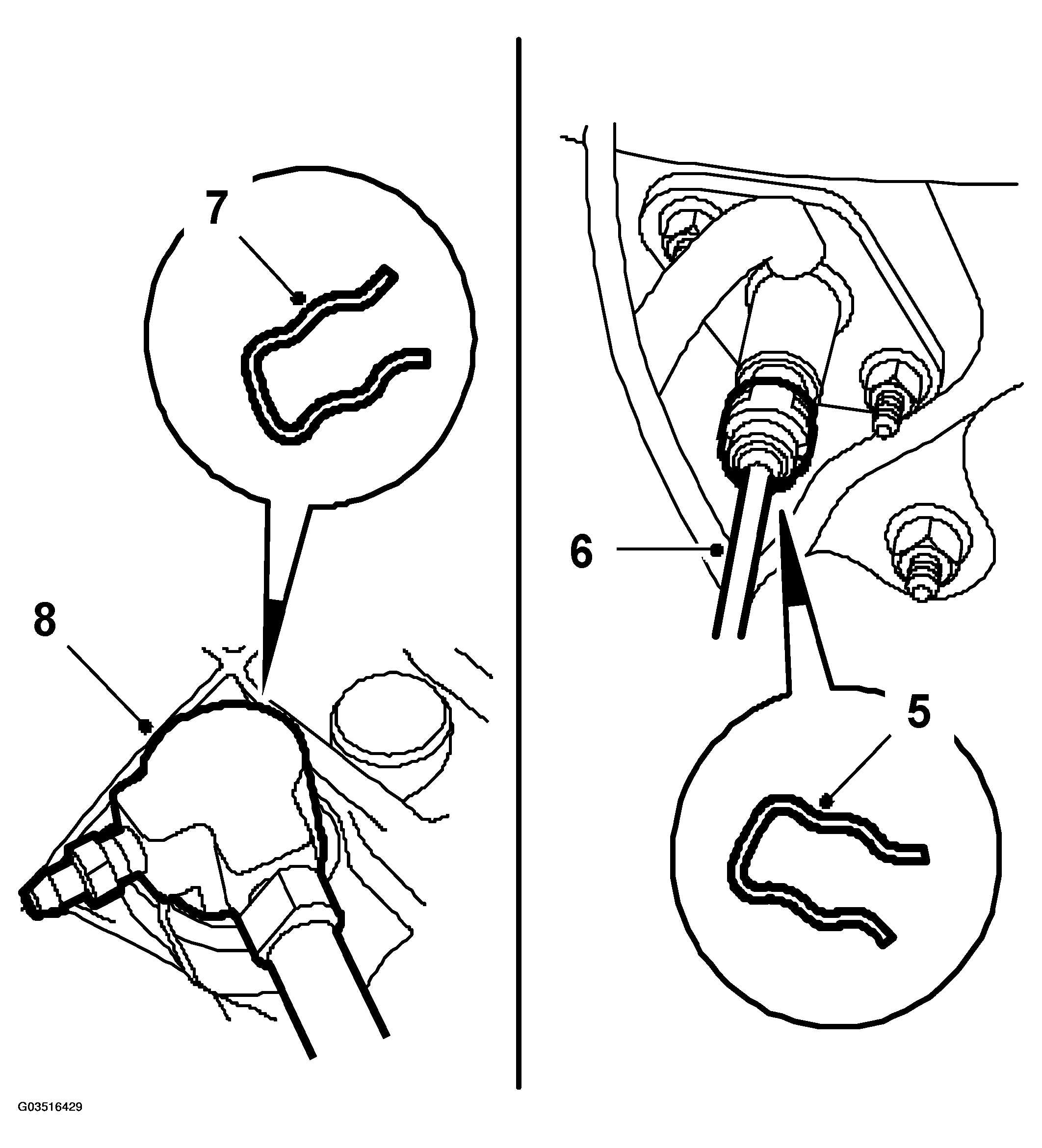

    Fig 2: Illustration For Step 5-8
    G03516429Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Pull the delivery pipe from the master cylinder. Fit the clip.
  7. Remove the clip securing the delivery pipe to the slave cylinder.
  8. Remove the delivery pipe.
