Steering Assembly

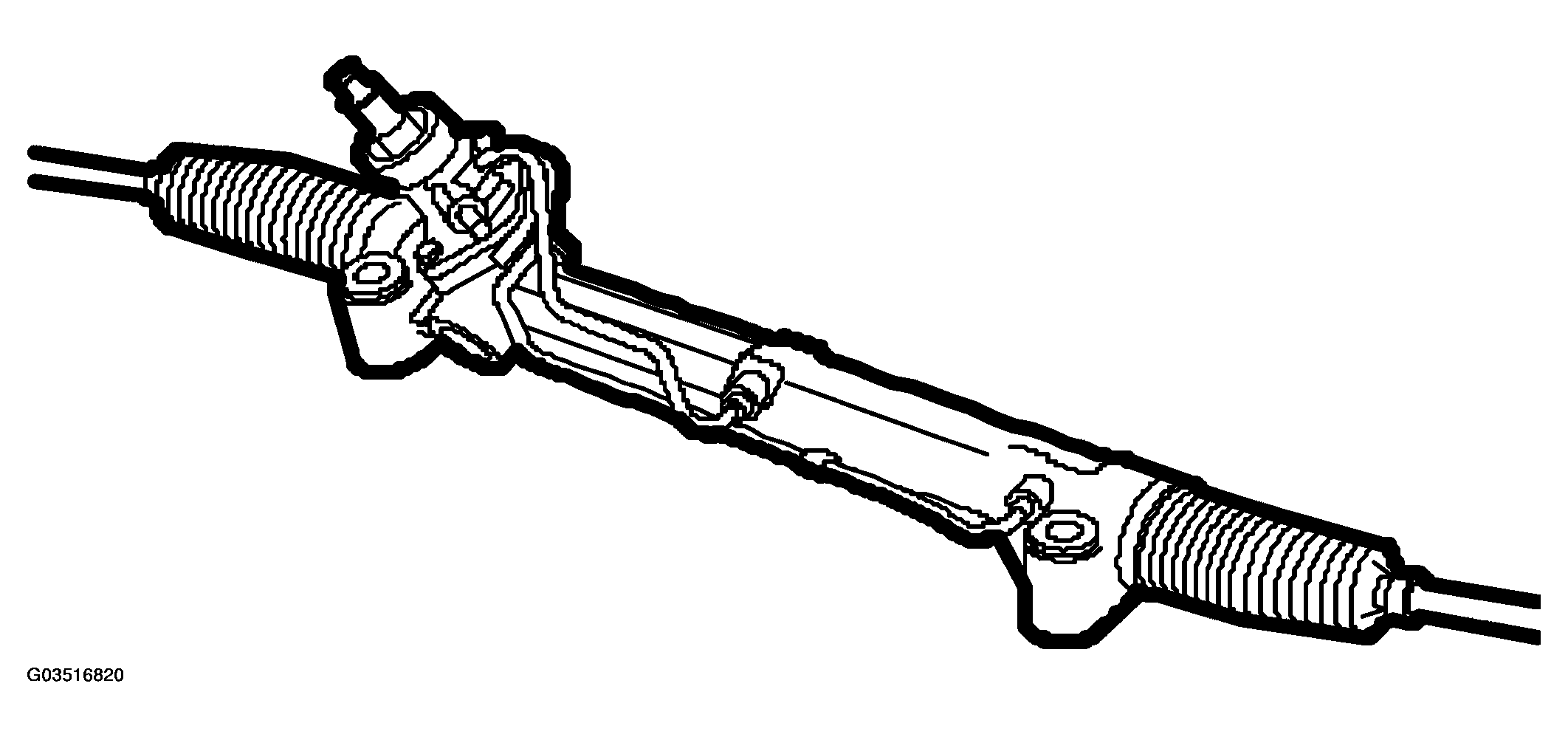

Fig 1: Identifying Steering Assembly
G03516820Courtesy of SAAB-SCANIA OF AMERICA, INC.
STEERING ASSEMBLY SPECIFICATIONS

Steering wheel turns, lock to lock 2.9 turns
Turning circle, kerb-to-kerb 10.8 m
Turning circle, wall-to-wall 11.4 m
