Grounding Point G24: Notes

Fig 1: Identifying Grounding Point G24

Courtesy of SAAB-SCANIA OF AMERICA, INC.

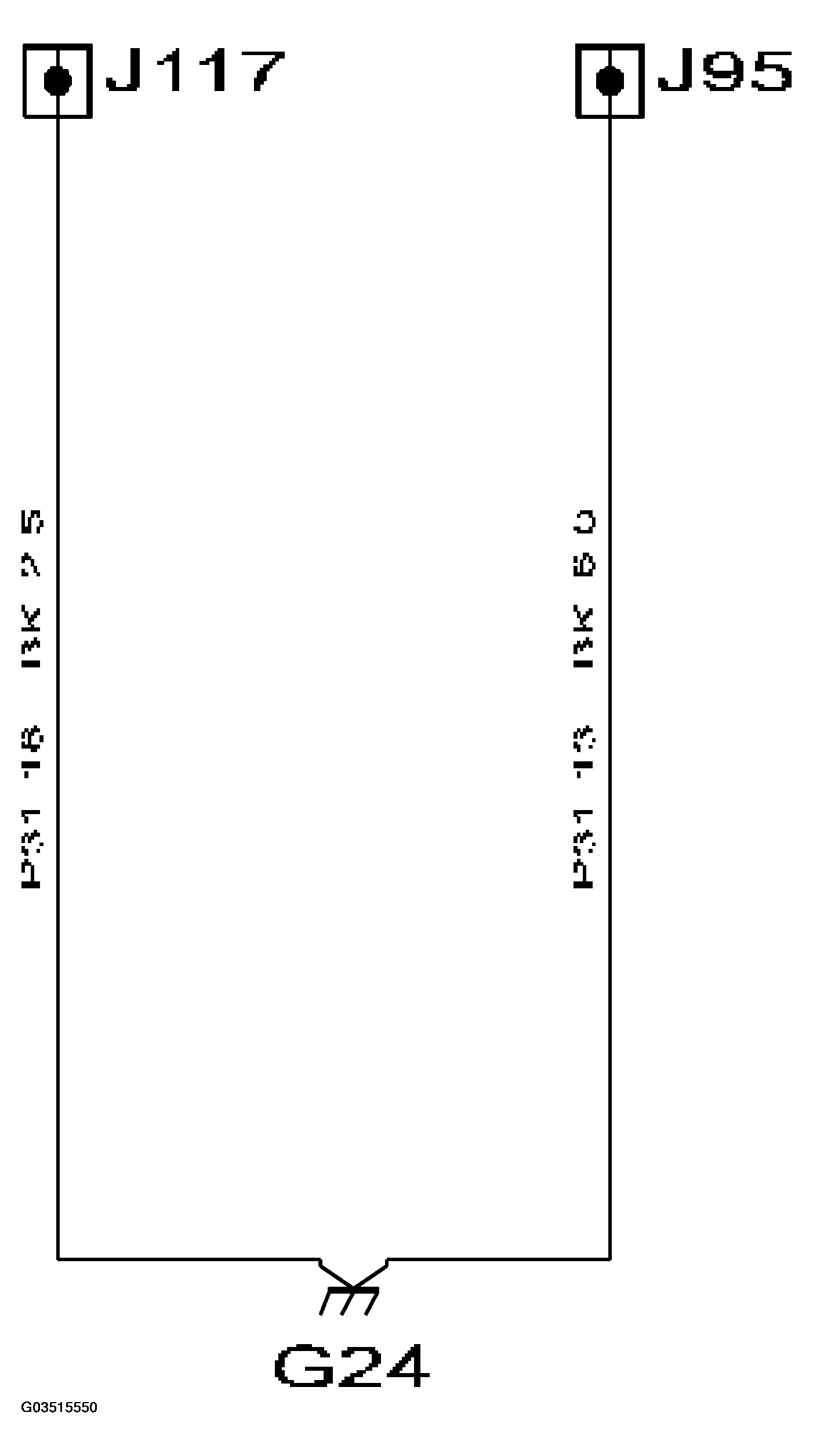

Fig 2: Grounding Point G24 Circuit Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  On the seat member under the right-hand seat.
