Grounding Point G14: Notes

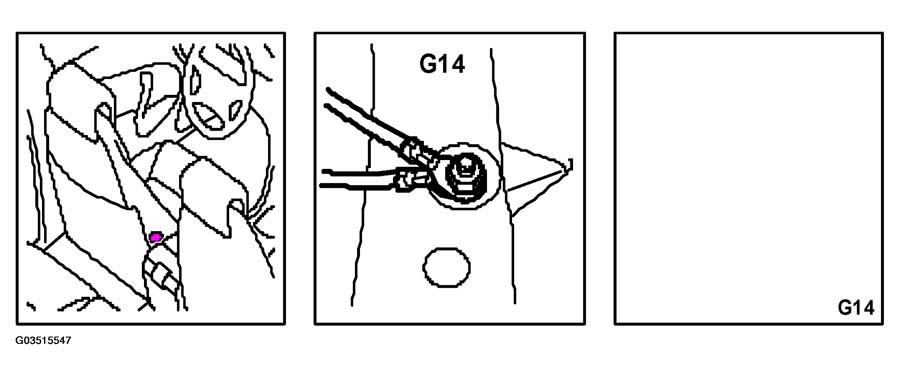

Fig 1: Identifying Grounding Point G14

Courtesy of SAAB-SCANIA OF AMERICA, INC.

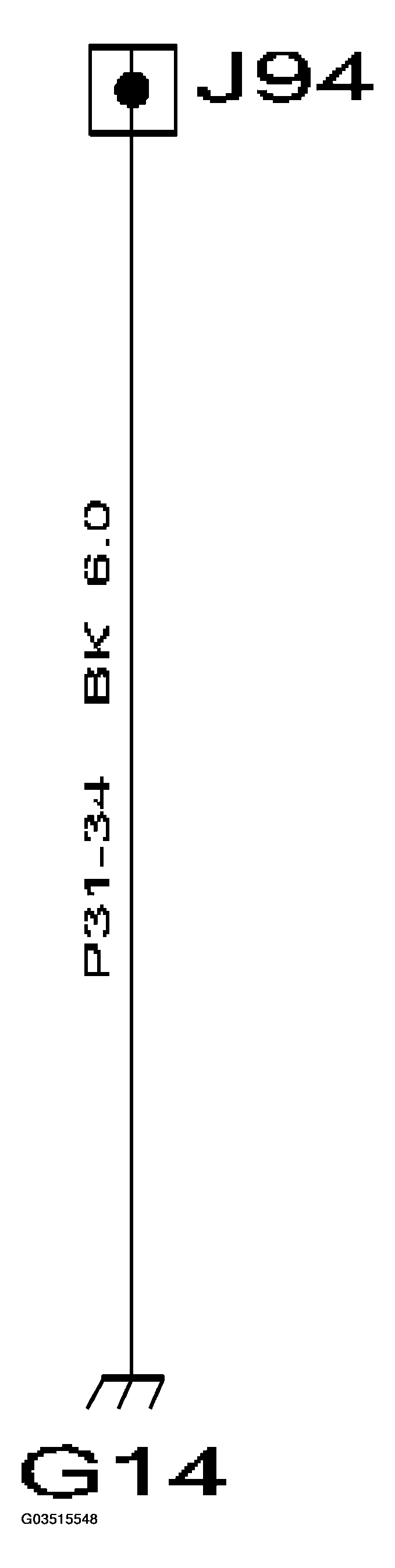

Fig 2: Grounding Point G14 Circuit Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  On the seat member under the left-hand seat.
