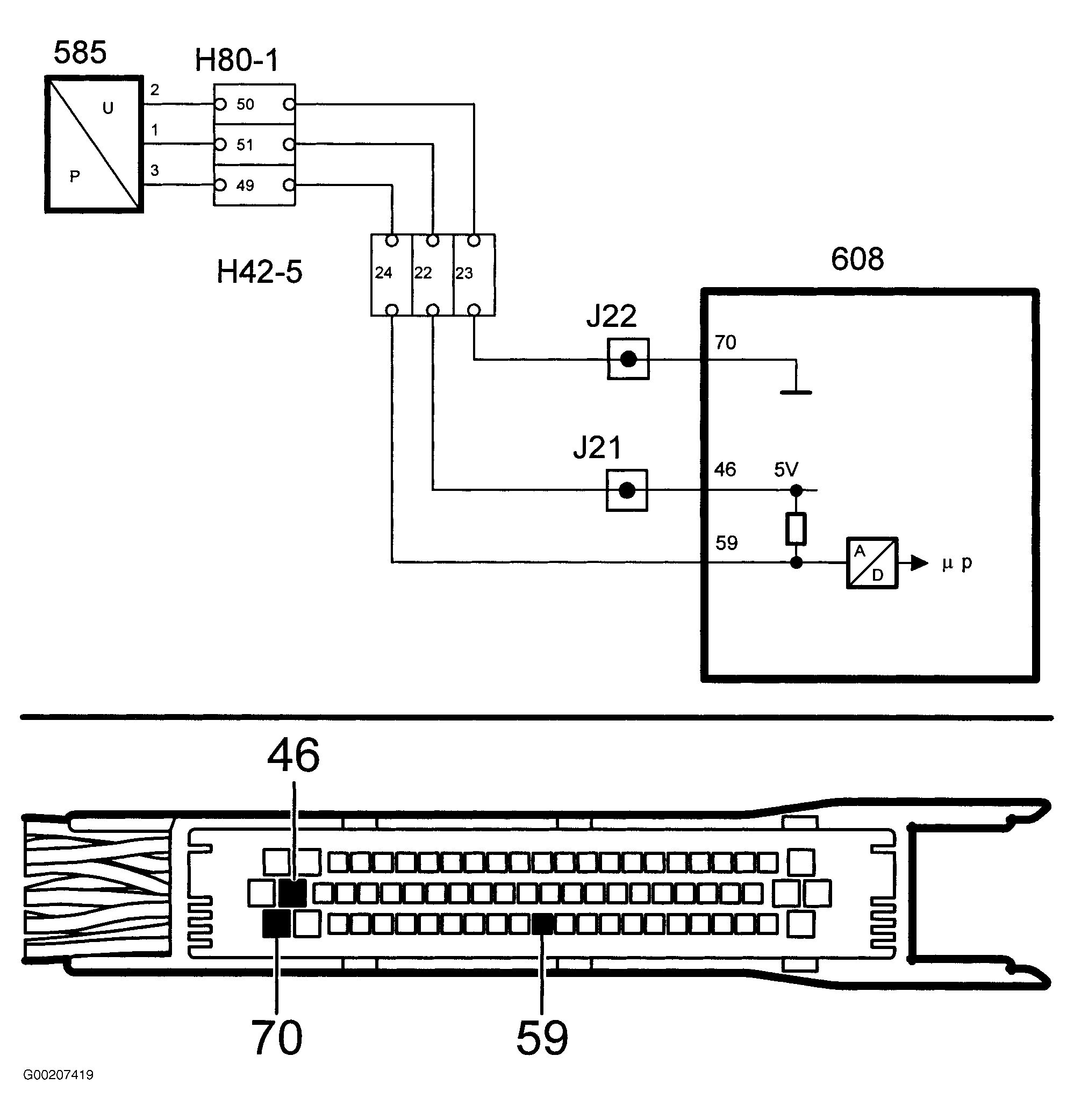

Fault Isolation Procedure
- Checking the sensor's power supply:
- Turn the ignition switch to the ON position.
- Unplug the connector: Pressure sensor, EVAP (585).
- Take a voltage reading: 585:1 and B-.
- Rectifying the lead: The lead from crimped connection J21 to pin 1 of the female connector is faulty. Rectify the fault and go to step 9.
- Checking the sensor's grounding:
- Take a voltage reading: 585:1 and 585:2.
- Jiggle the leads and in-line connectors at several places and in different directions to reveal intermittent breaks and short circuits in the wiring harness. Observe the multimeter, test lamp or diagnostic tool while doing this.
- Rectifying the lead: The lead from crimped connection J22 to pin 2 of the female connector is faulty. Rectify the fault and go to step 9.
- Checking the control module's sensor input:
- Contact ECM.
- Read value: Fuel Tank Pressure.
- Checking the control module's sensor input (continued):
- Connect a jumper lead between pins 2 and 3 of the female connector.
- Read value: Fuel Tank Pressure.
- Rectifying the lead: The lead from pin 3 of the female connector to pin 59 of the control module is faulty. Rectify the fault and go to step 9.
- Changing components: Change Pressure sensor, EVAP. When finished, go to step 9.
- Initiating diagnostics:
- Check the diagnostic status of the trouble code with the diagnostic tool.NOTE: Do not touch the brake pedal.
- Start the engine and run it at idling speed.
- Let the engine run at idling speed until the coolant temperature exceeds 60°C and for at least 4 minutes.
- State what the diagnostic tool shows:
- OK - The steps taken to rectify the fault were correct. Clear the DTCs in all systems.
- NOT READY - The diagnosis has not yet been performed or has been cancelled. If the diagnosis has been cancelled, it can be restarted if the car is rolled a few meters and then stopped with the handbrake.
- DTC - Diagnosis indicates that the fault is still present.
- Check the diagnostic status of the trouble code with the diagnostic tool.
