Injectors, Flow Capacity: V6

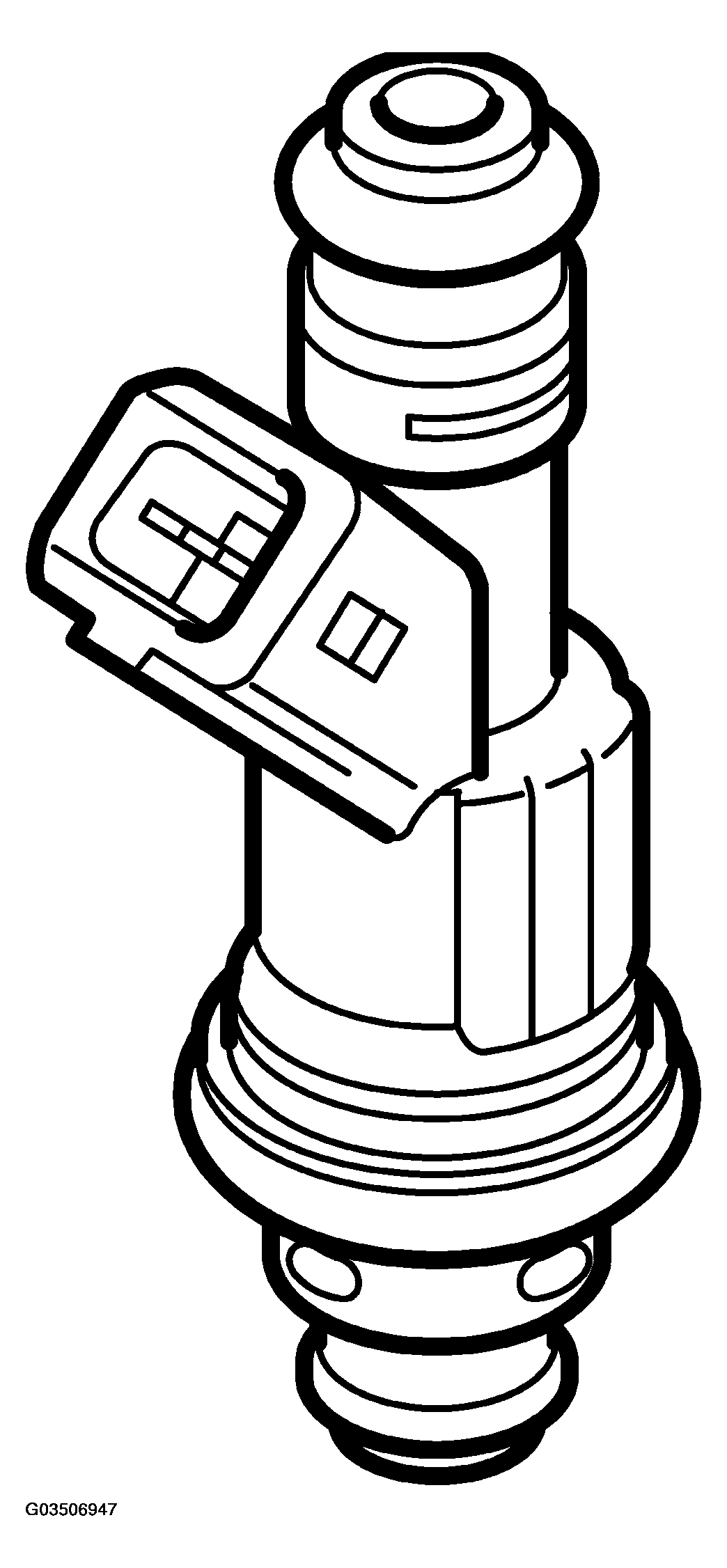

Fig 1: Identifying Injectors (V6)
G03506947Courtesy of SAAB-SCANIA OF AMERICA, INC.
INJECTORS (V6) TECHNICAL DATA

  B308E
Flow capacity ml/30s 109 +/- 4
Maximum permissible difference between injectors. ml 8
