Starter Motor: Notes

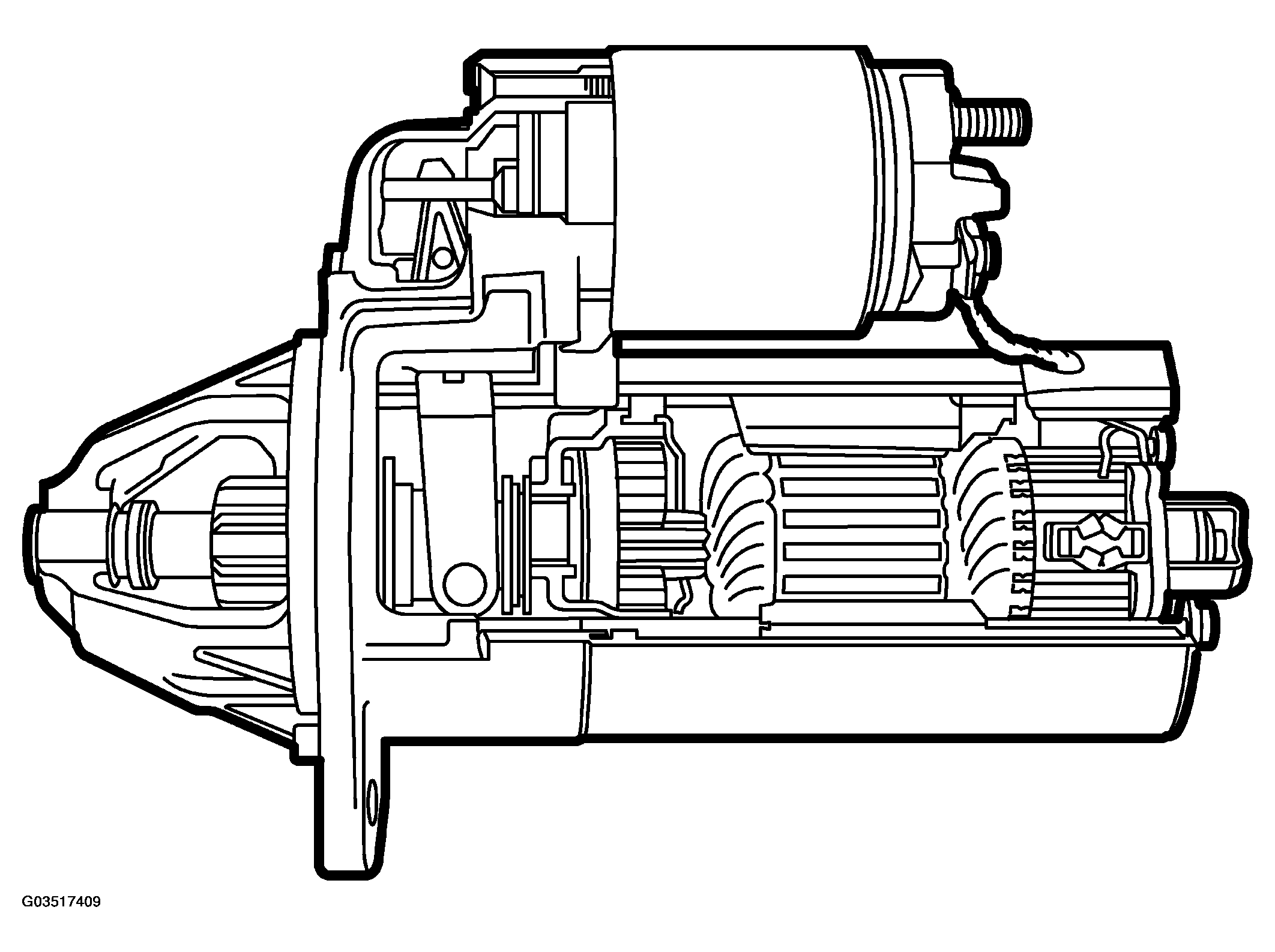

Fig 1: Cross Sectional View Of Starter Motor

Courtesy of SAAB-SCANIA OF AMERICA, INC.

The starter motor has permanent magnets to reduce strain on the battery.

A planetary gear increases the starting torque.

The starter motor circuit consists of two sub-circuits:

• the working circuit, and;
• the operating circuit.
