Grounding Point G25: Notes

Fig 1: Locating Battery Grounding Point (G25)
G03517386Courtesy of SAAB-SCANIA OF AMERICA, INC.

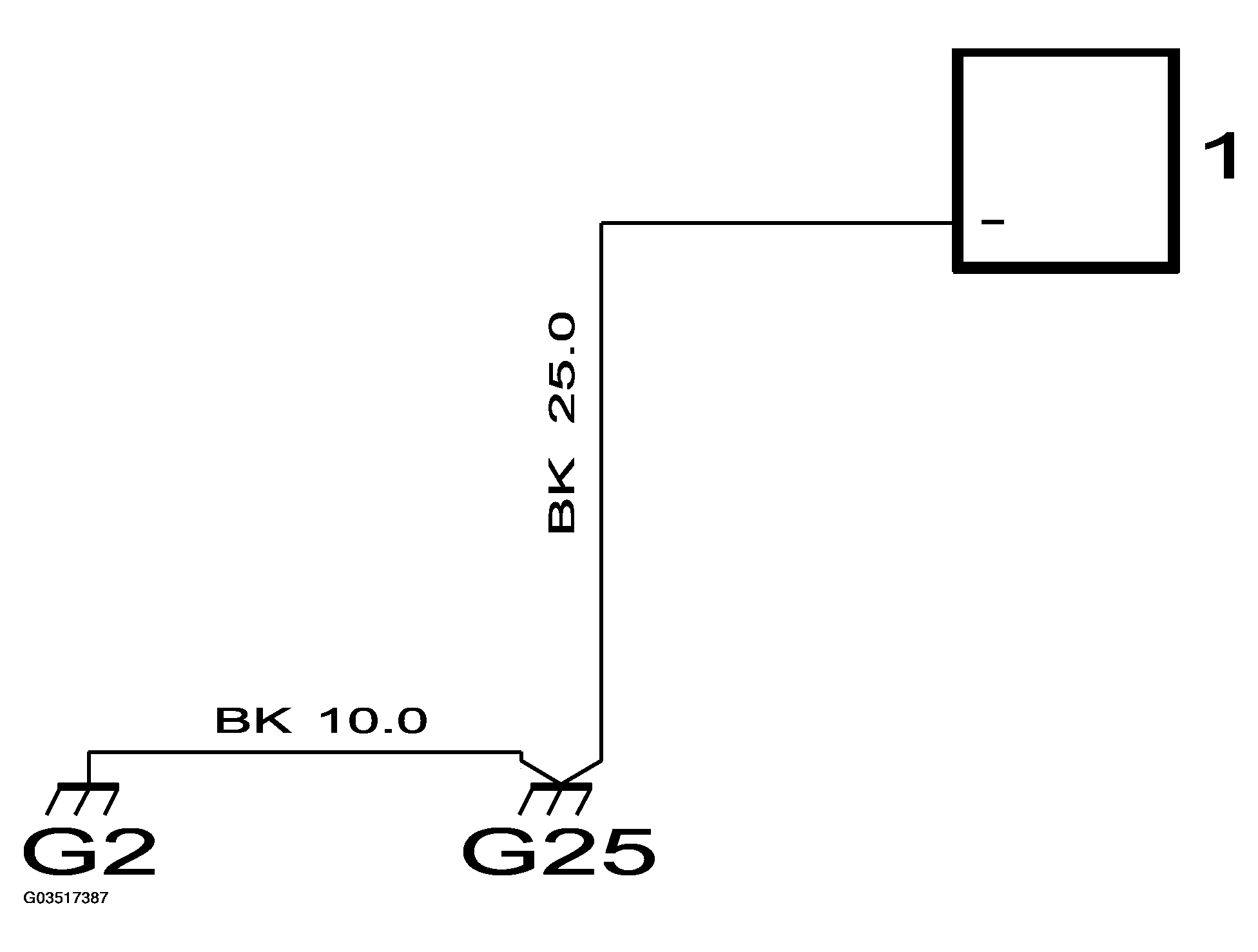

Fig 2: Battery Grounding Connection Diagram (G25)
G03517387Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  On the gearbox.
