Grounding Point G2: Notes

Fig 1: Locating Grounding Point G2
G03517382Courtesy of SAAB-SCANIA OF AMERICA, INC.

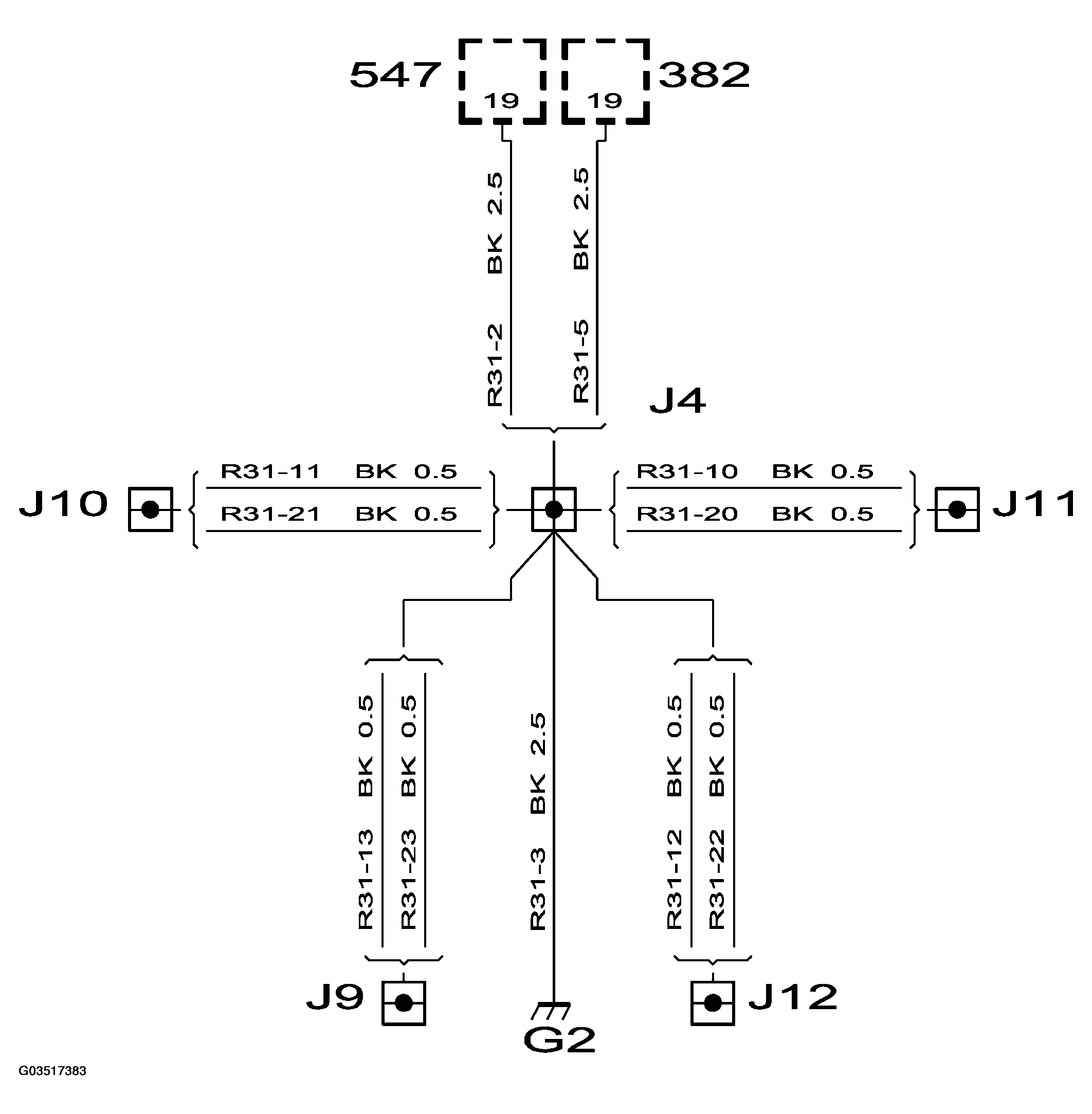

Fig 2: Grounding Point G2 Connection Diagram
G03517383Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  On the left-hand structural member behind the headlamp (battery ground).
