System overview, interior lighting 4D

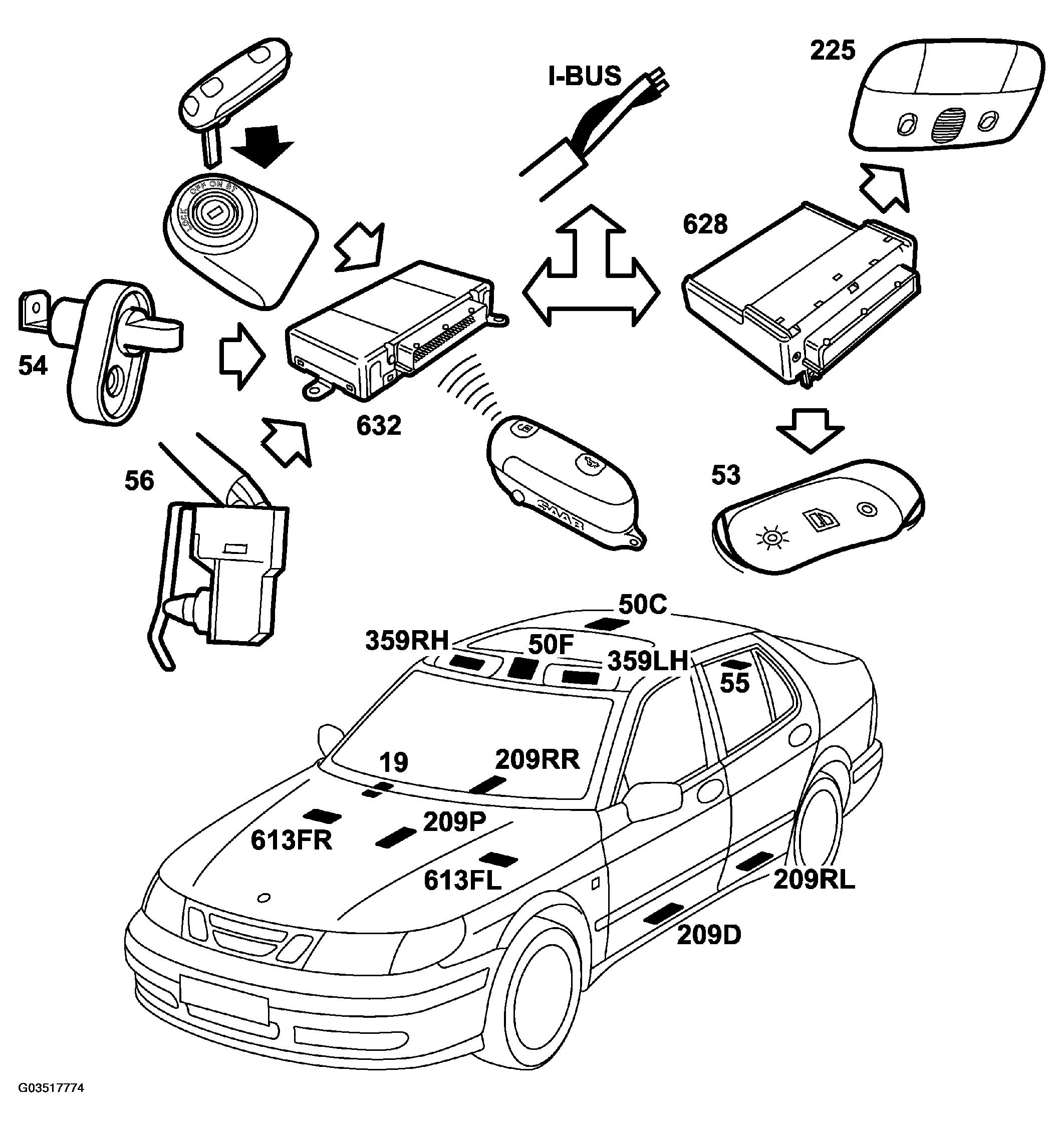

Fig 1: Identifying Interior Lighting System Overview (4D)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

• Door switch (54)
• Switch, luggage compartment lighting (56)
• Control module, TWICE (632)
• Control module, DICE (628)
• Interior lighting switch (53)
• Control module, SID (541)
• Glove box light (19)
• Luggage compartment lighting (55)
• Roof lamp (50C, 50F)
• Vanity mirror lighting (359)
• Courtesy lights (209)
• Reading lights (225)
• Floor lighting (613)
