Home >> Saab >> 2001 >> 9-5 Base, 4D Sedan, Standard >> Repair and Diagnosis >> Electrical >> Horns >> Lighting And Signaling Systems >> Component location >> Trionic 4-cyl control module (430)

Trionic 4-cyl control module (430)

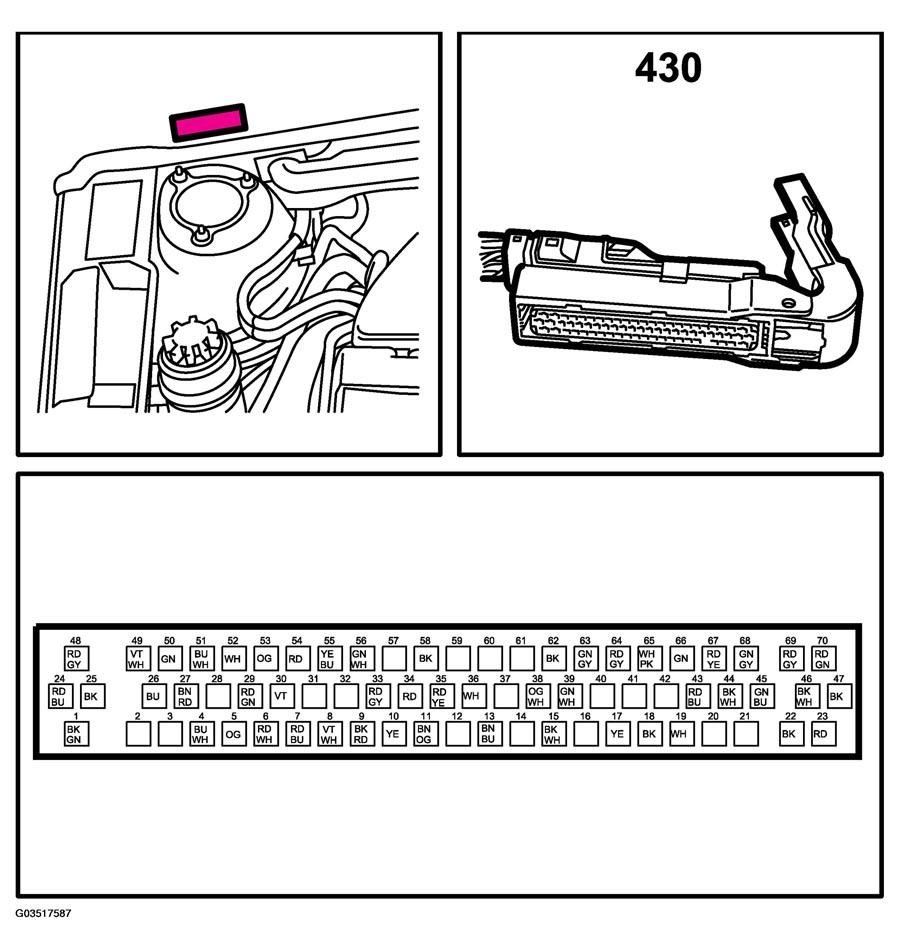

Fig 1: Identifying Trionic 4-Cyl Control Module - Connector Pinouts
G03517587Courtesy of SAAB-SCANIA OF AMERICA, INC.
