Traction Control
>>
TC / Abs Version 5.3 - Repair
>>
Technical Description
>>
Control Module Inputs
Control Module Inputs

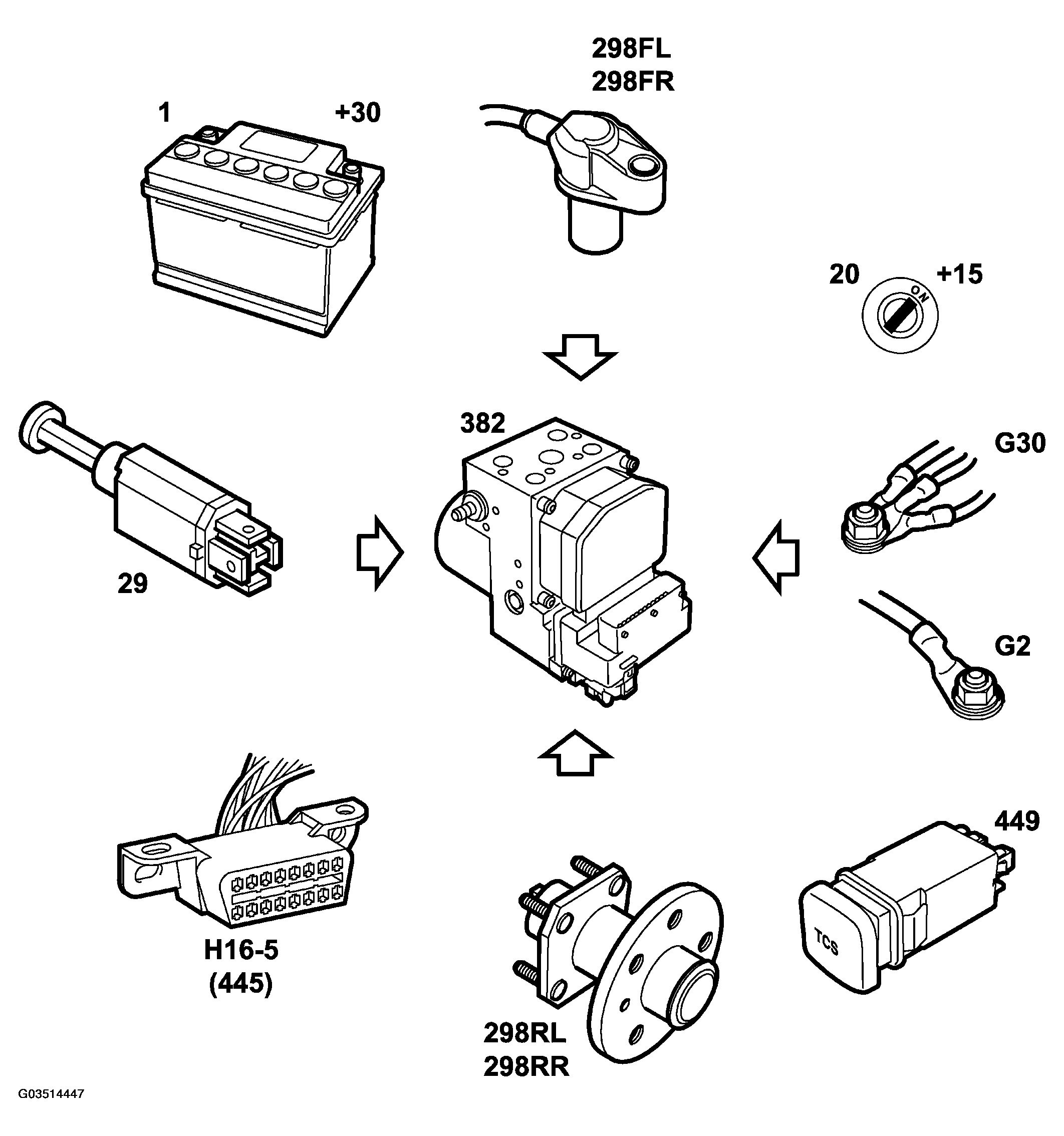

Fig 1: Identifying Control Module Inputs
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Current (+30 circuit) (1)
Current (+15 circuit) (20)
Ground (G30, G2).
FRONT-WHEEL SENSORS
(298)
REAR-WHEEL SENSORS
(298)
BRAKE LIGHT SWITCH
(29)
DIAGNOSTICS COMMUNICATION
(445)
SWITCH, TCS
(449)
