Control module ground

The control module is grounded via pin 19 to grounding point G2.

The pump motor is grounded through pin 16 to grounding points G30 and G40 (G42 RHD).

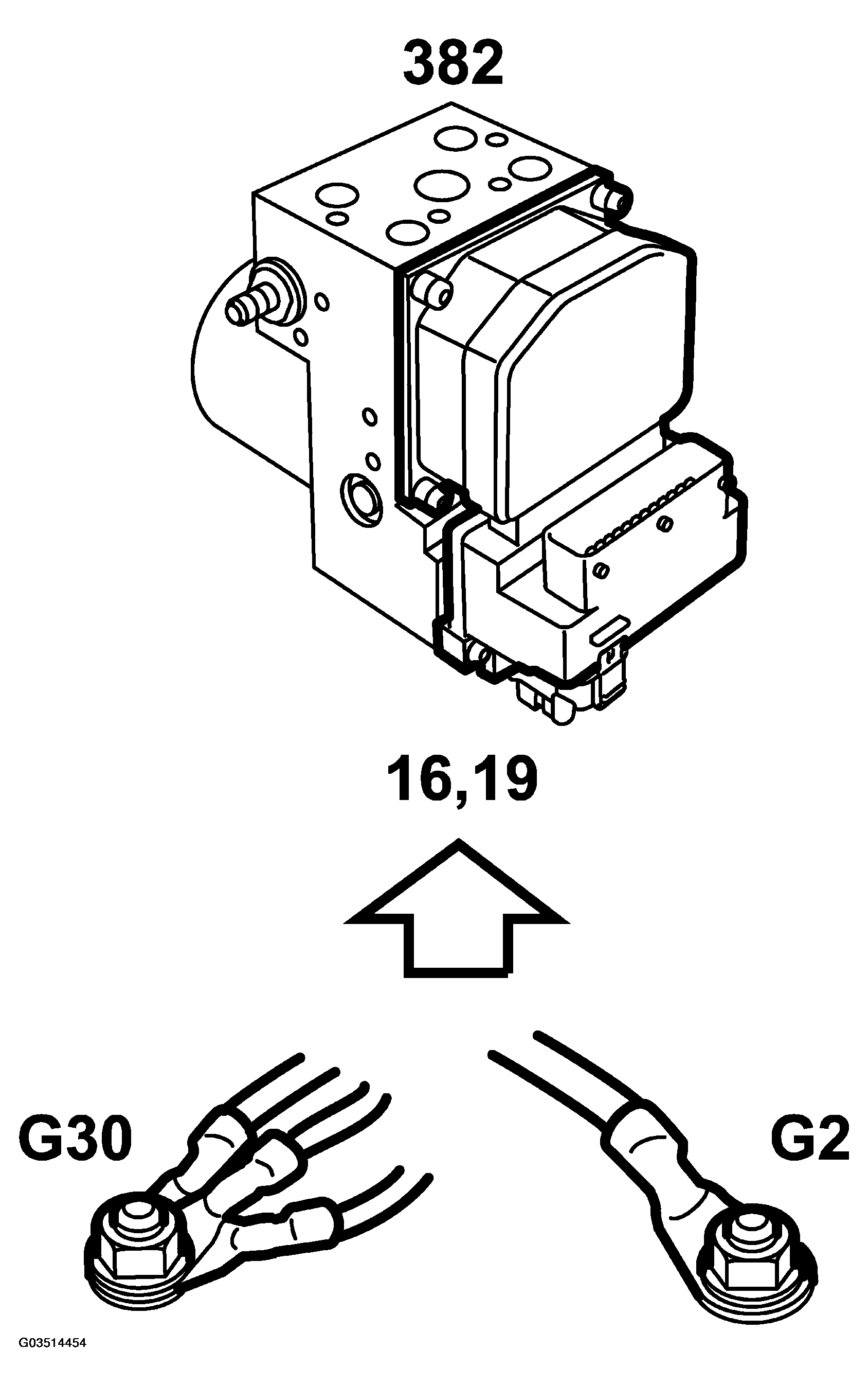

Fig 1: Control Module Ground - Communication Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

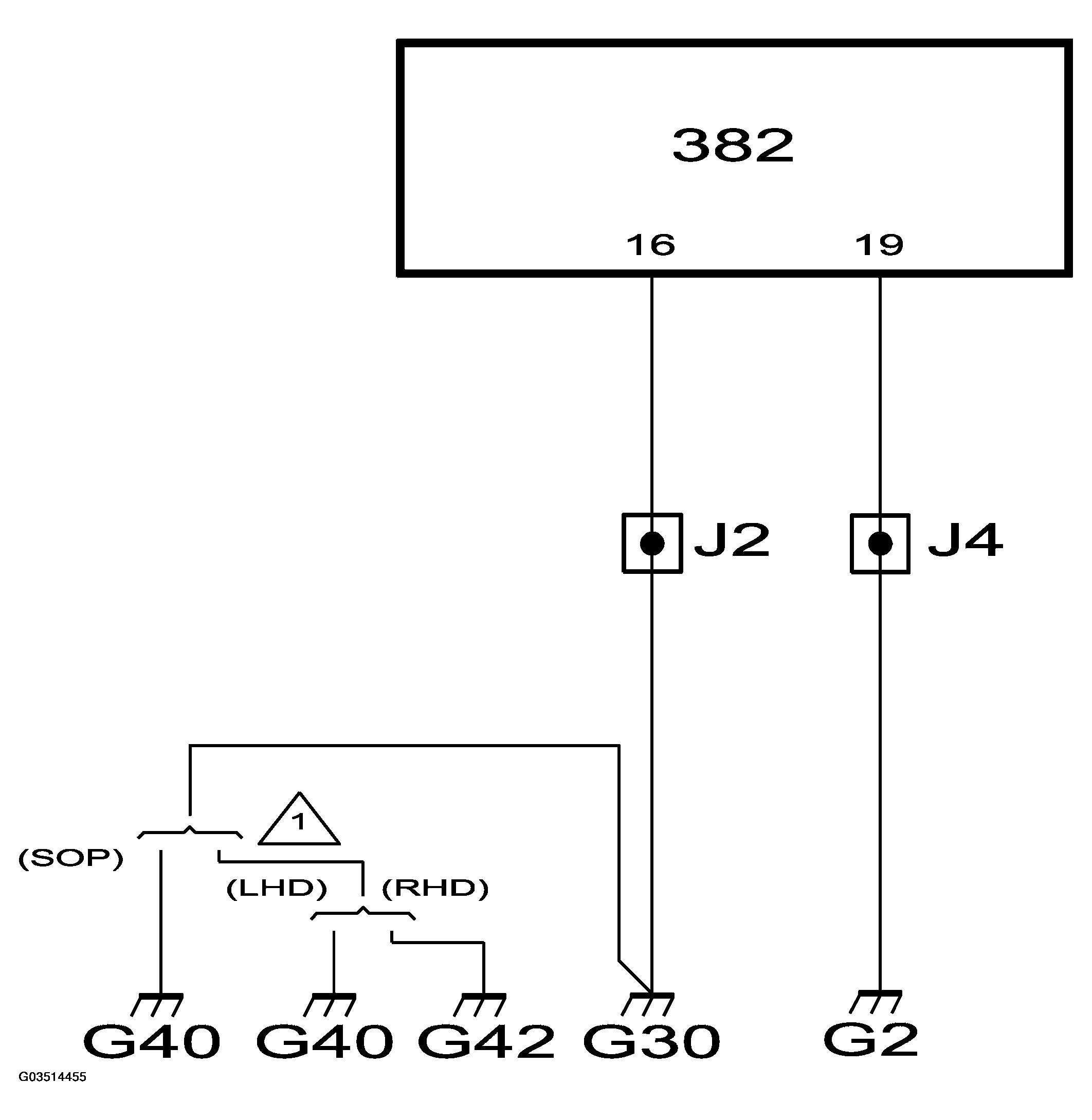

Fig 2: Control Module Ground - Circuit Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.
