Control Module Bus Outputs

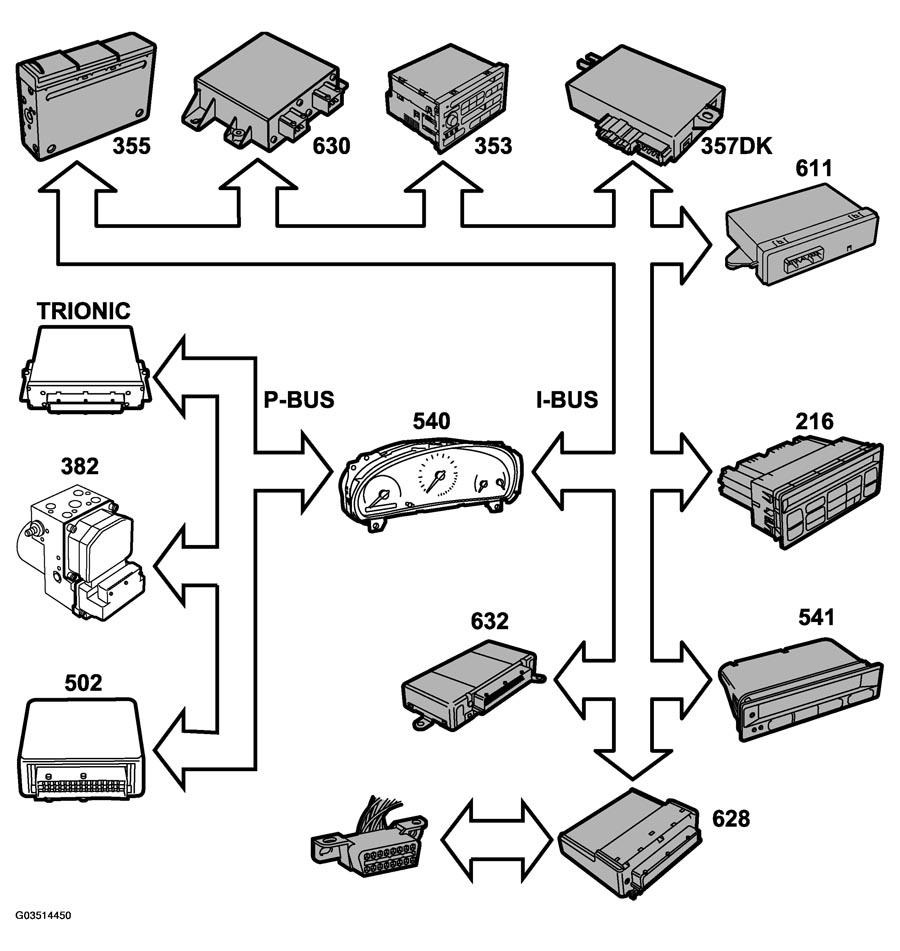

Fig 1: Identifying Control Module Bus Outputs

Courtesy of SAAB-SCANIA OF AMERICA, INC.

• INDICATOR LAMP TCS OFF
• ABS WARNING LAMP
• TCS INDICATOR LAMP
• Wheel speed for all wheels
• Request for engine torque
• Signal to odometer

See also , BUS AND DIAGNOSTIC COMMUNICATION , TECHNICAL DATA , CONTROL MODULE CONNECTIONS .
