DICE Control Module (628): RHD

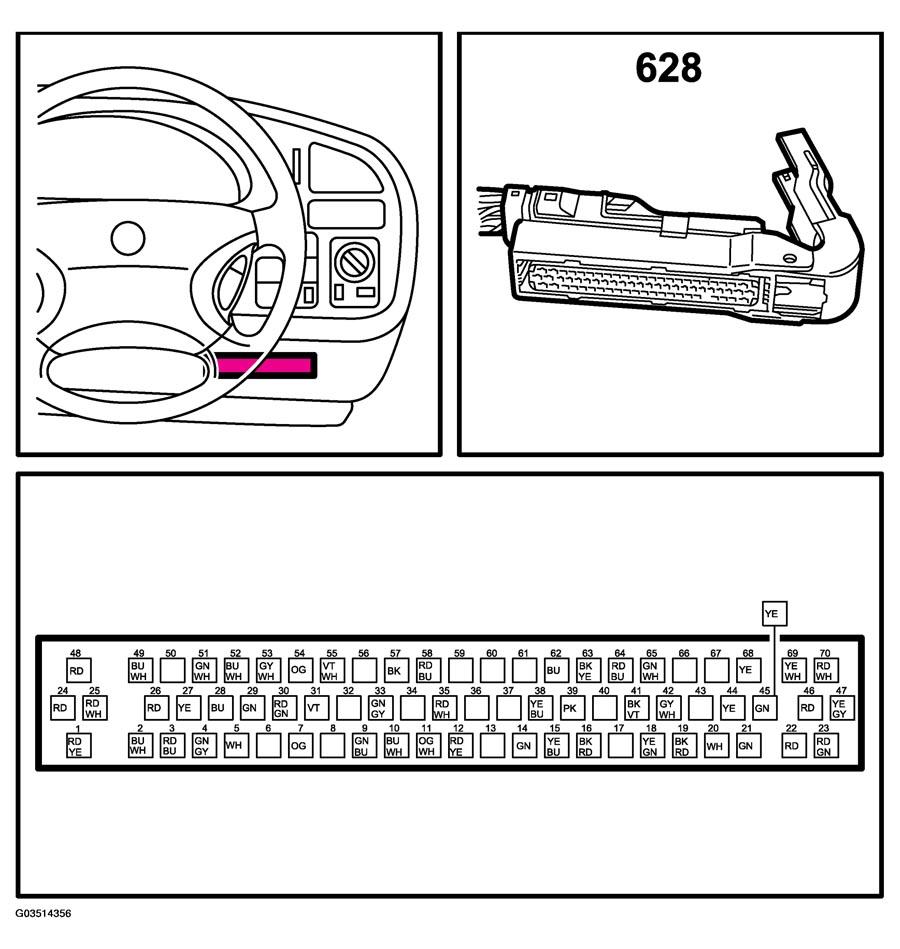

Fig 1: Identifying DICE Control Module And Connector Pinouts (RHD)

G03514356

Courtesy of SAAB-SCANIA OF AMERICA, INC.
