To remove

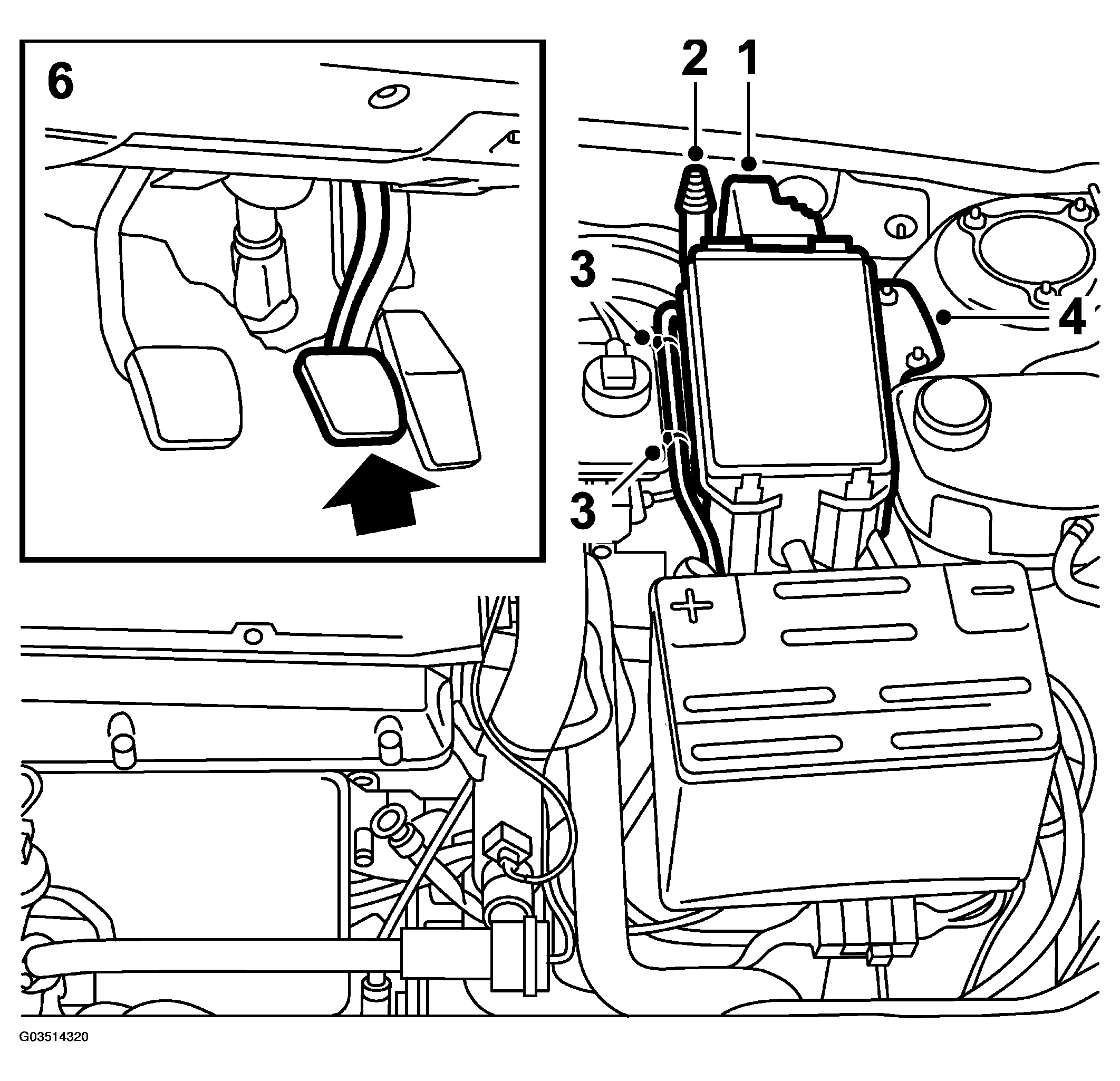

Fig 1: Illustration For Step 1-4, 6
G03514320Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Release the Maxi-fuse holder.
  2. Unplug the electrical connector on the anti-theft alarm.
  3. Cut off the cable ties securing the positive battery cable to the main fuse box.
  4. Undo the nuts and move the main fuse box out of the way.
  5. Suspend the main fuse box from a cable tie.
  6. Use a brake pedal clamp to depress the brake pedal about 50 mm to prevent brake fluid from running out of the master cylinder.
  7. Unplug the connector and tuck it out of the way.

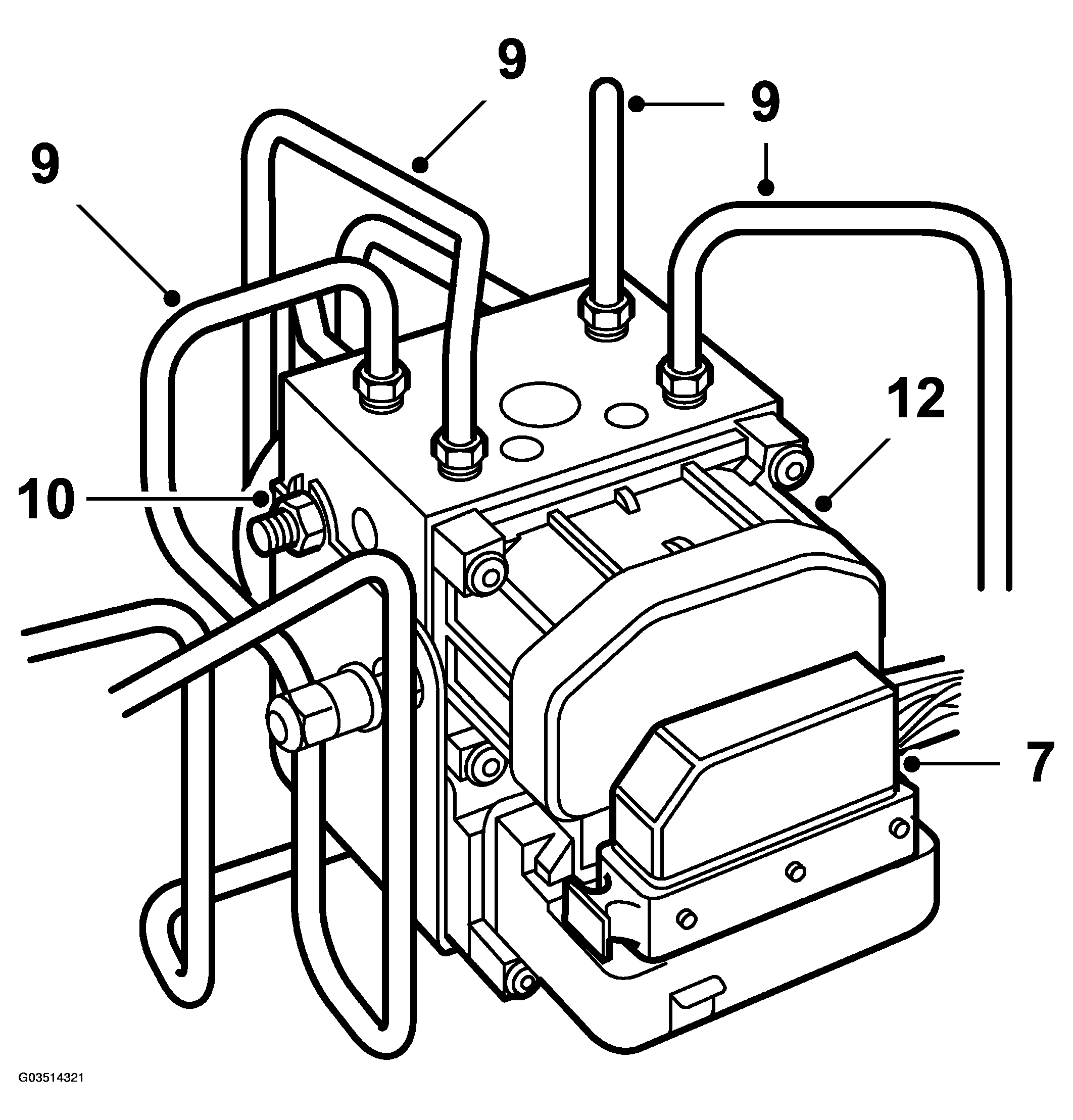

    Fig 2: Illustration For Step 7, 9-10, 12
    G03514321Courtesy of SAAB-SCANIA OF AMERICA, INC.
  8. Use compressed air to clean the surfaces around the brake-pipe couplings.
  9. Undo the brake-pipe couplings using a brake pipe spanner and plug the openings.
  10. Undo the two nuts on the hydraulic unit.
  11. Place a cover over the splash guard to protect it from any brake-fluid spillage.
  12. Lift out the hydraulic unit, taking care not to damage the pipes.
