Wheel-Speed Signal Output: Notes

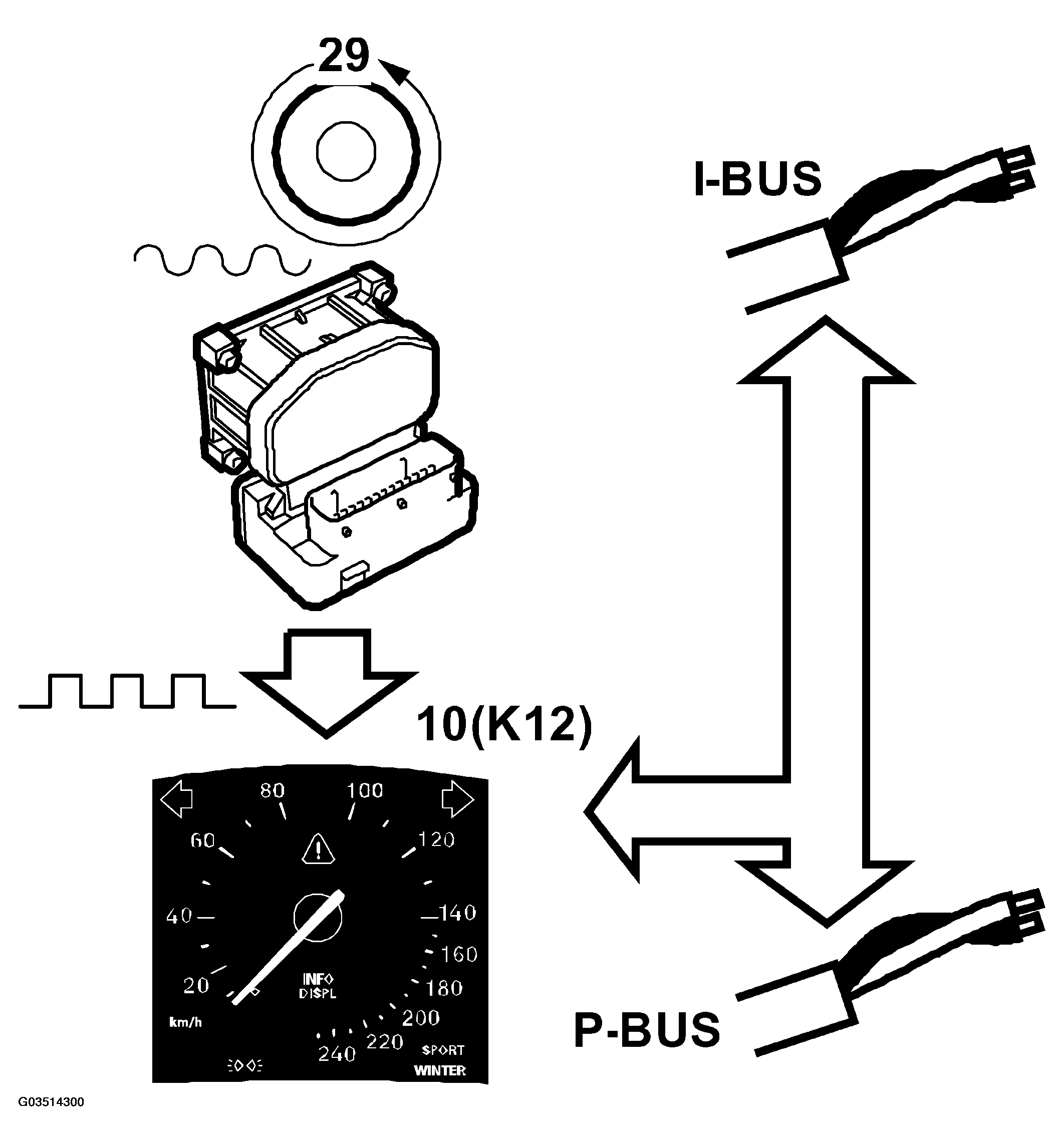

Several other systems in the car need to receive wheel-speed data. Because the ABS control module is not connected to a bus, it has a wheel-speed output for each wheel (only the rear left and right front are connected at present). A transistor in the ABS control module grounds the respective outputs 29 times per wheel revolution. The voltage across the output is monitored by the systems receiving the data.
The main instrument unit (MIU) receives the wheel-speed signal via a lead connected to the rear left wheel. The reason that a rear-wheel sensor has been chosen is that the distance travelled (recorded mileage) can be measured more accurately on a non-driving wheel. The MIU converts the frequency-modulated signal to km/h, a computation that includes a preprogrammed correction for tyre size.

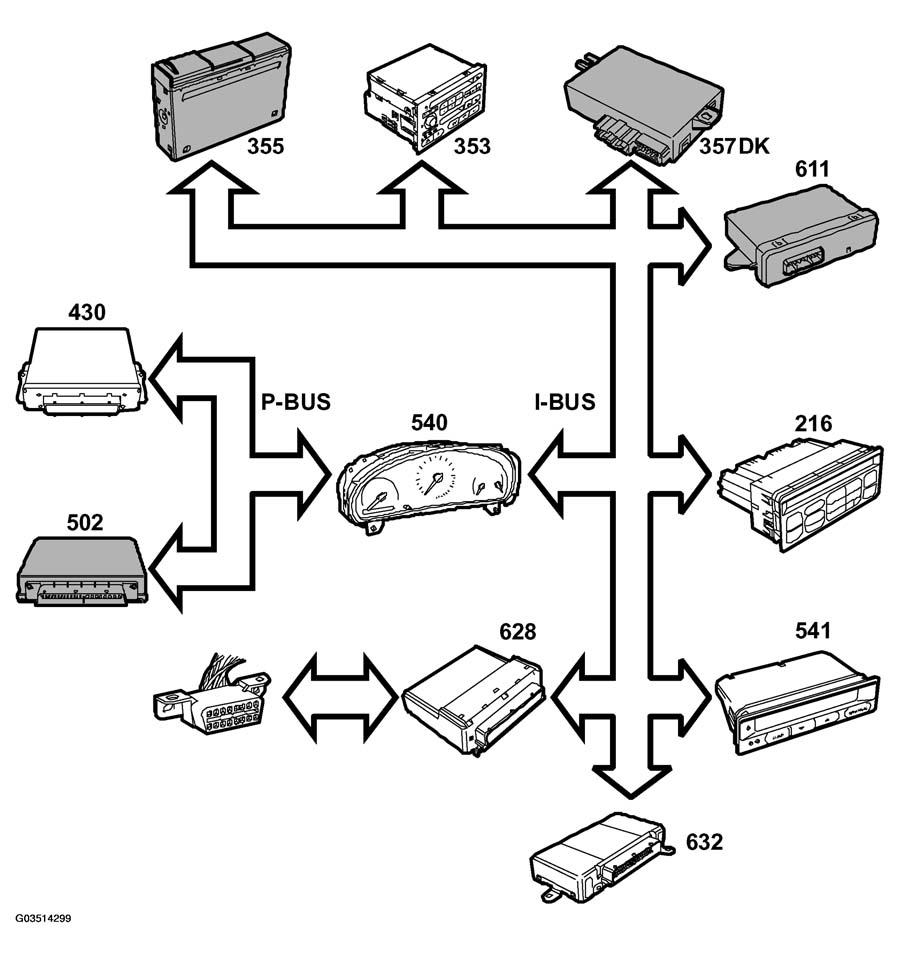

Because the MIU is connected to a bus, all the other control modules connected to the bus are able to share the RL wheelspeed and milometer (odometer) data.

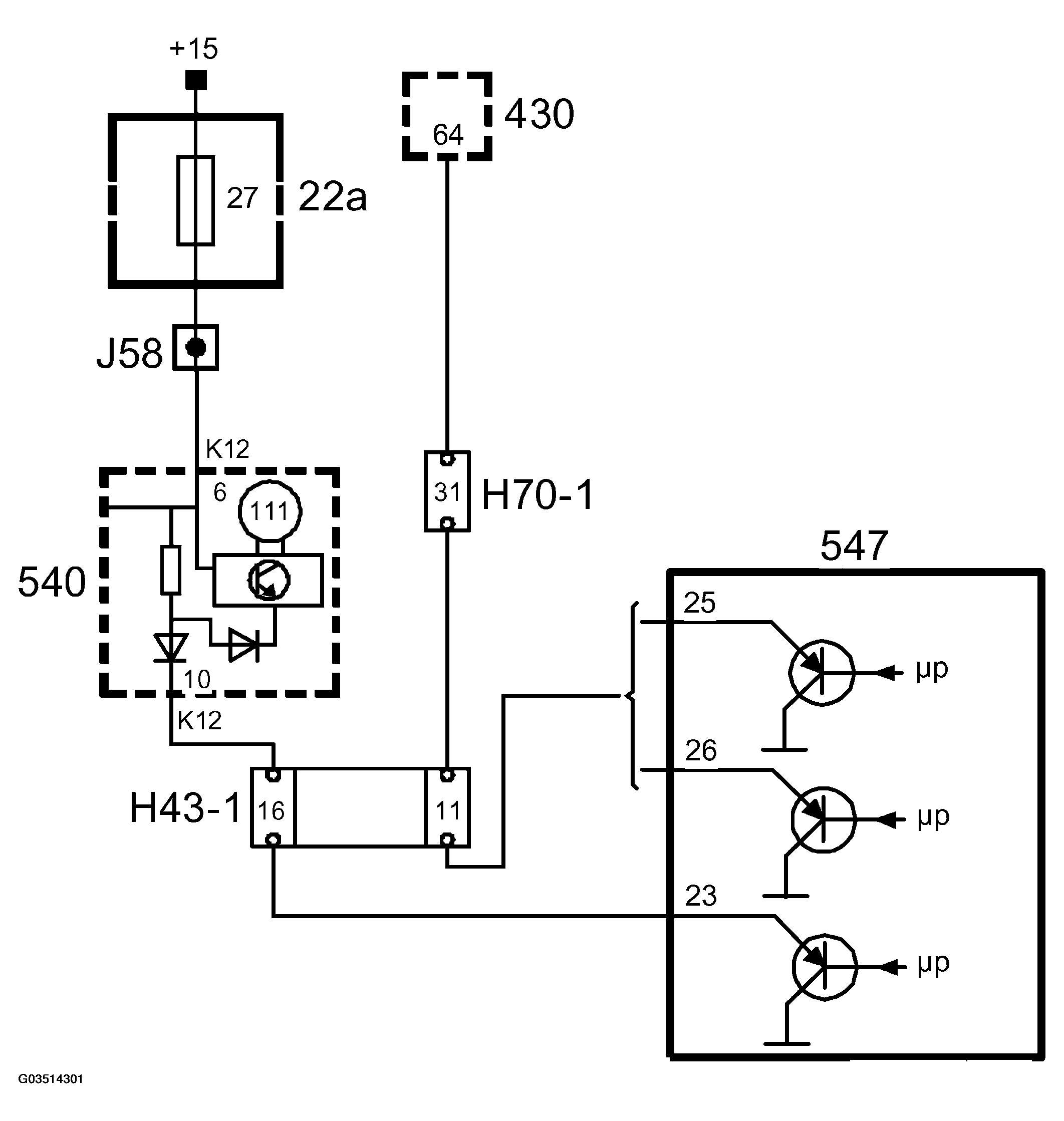

The Trionic system is connected to the ABS control module via pin 26, and it receives wheel-speed data from the front right wheel.
For more information on wheel-speed data from the bus, see BUS AND DIAGNOSTICS COMMUNICATION and "FAULT DIAGNOSIS, SYMPTOMS ".
If voltmeter measurements are made at any of the relevant terminal pins, the reading should alternate between 0 V and B+ voltage when the respective wheel is rotated slowly. Provided that the RL and FR wheel sensors are functioning, the wheelspeed signal is sent even if the ABS system is inoperative and the ABS warning light is on.
