Main Components

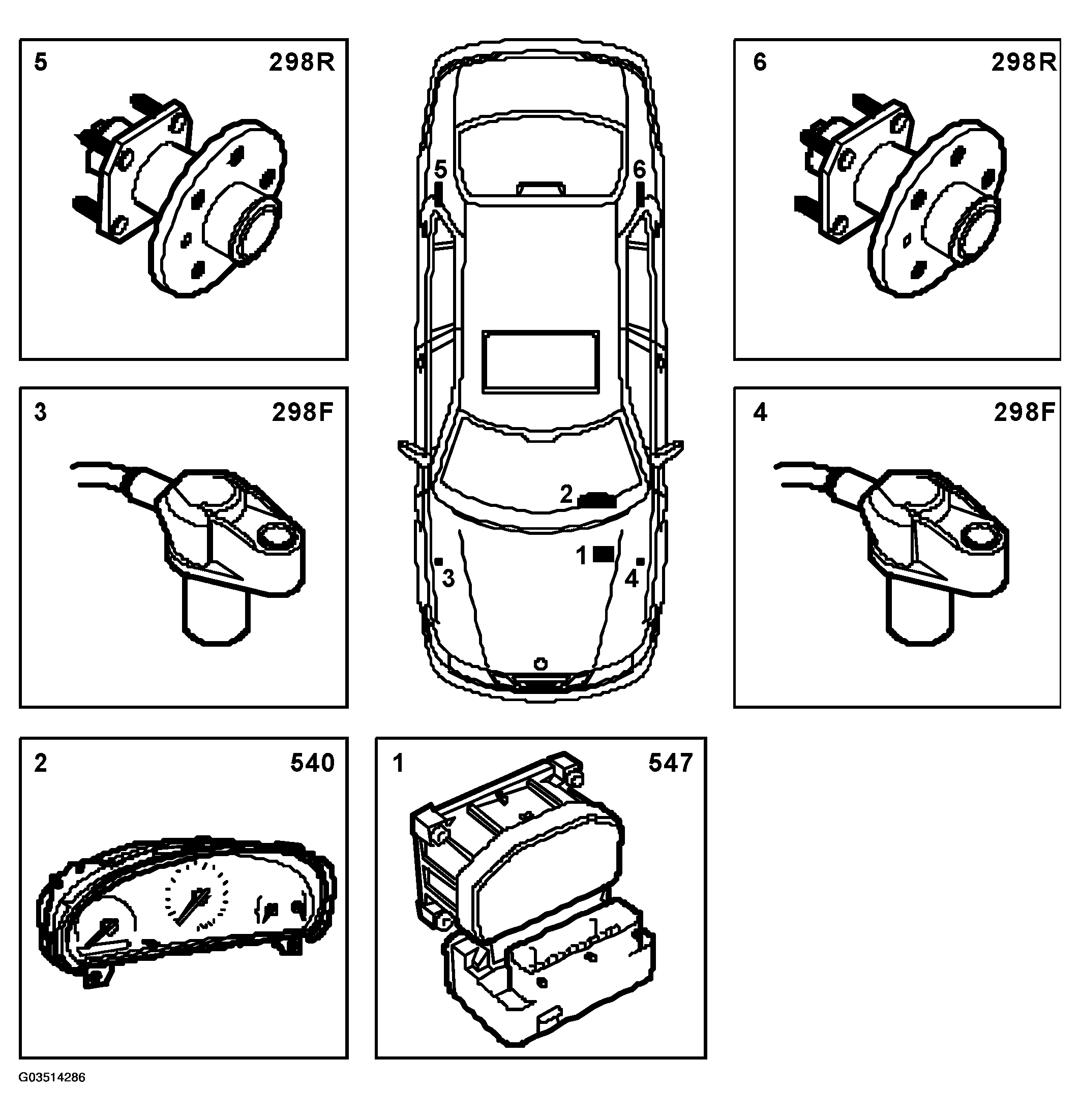

Fig 1: Identifying ABS 5.4 Components
G03514286Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Hydraulic unit, complete with control module, valve block and return pump (547)
  2. ABS warning lamp on MIU (540)
  3. Wheel sensor, FR (298)
  4. Wheel sensor, FL (298)
  5. Wheel sensor, RR (298)
  6. Wheel sensor. RL (298)
