Data Link

The control module communicates with the diagnostic port via pin 11.

The diagnostic port is located underneath the steering column.

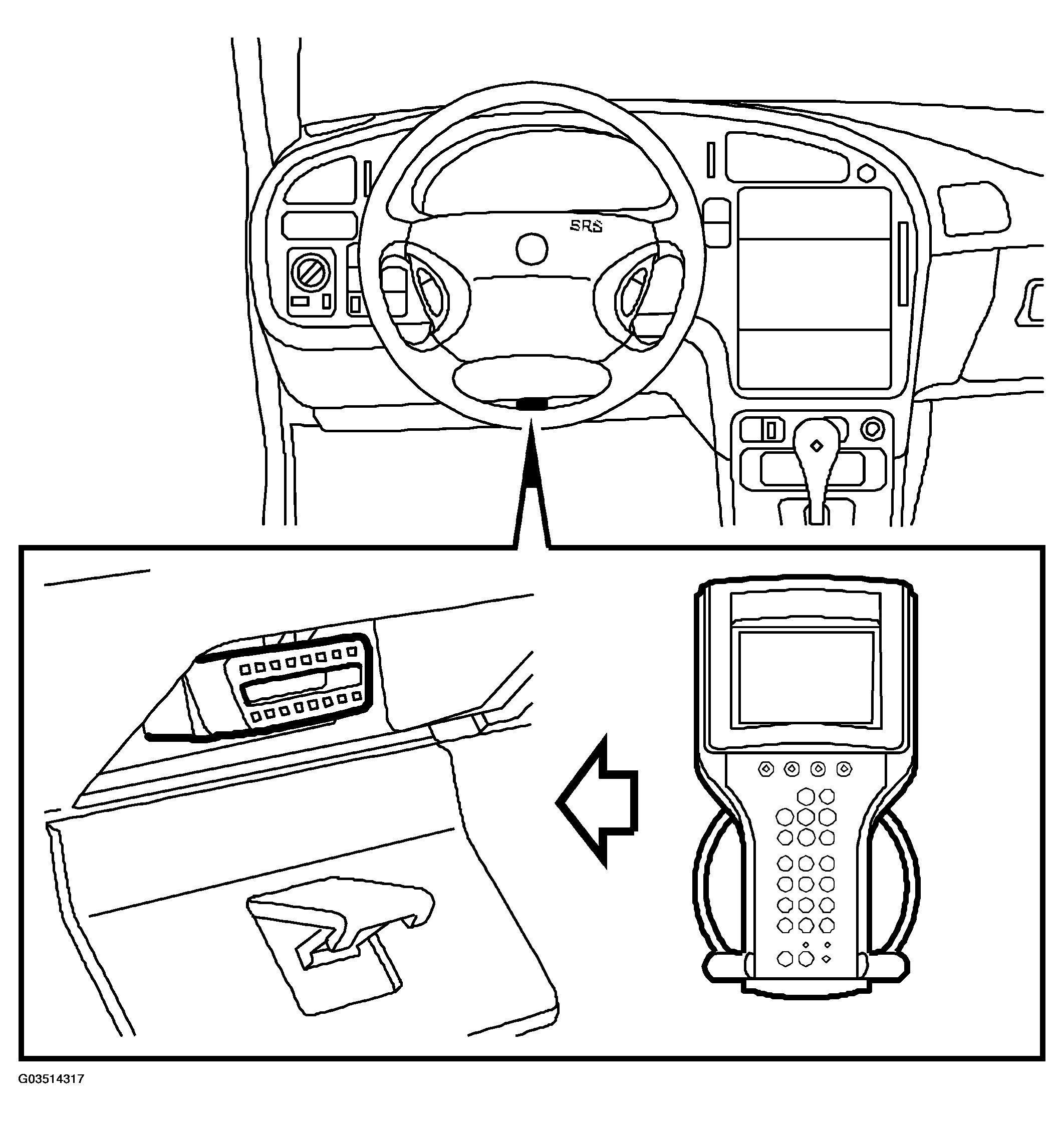

Fig 1: Data Link - Communication Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

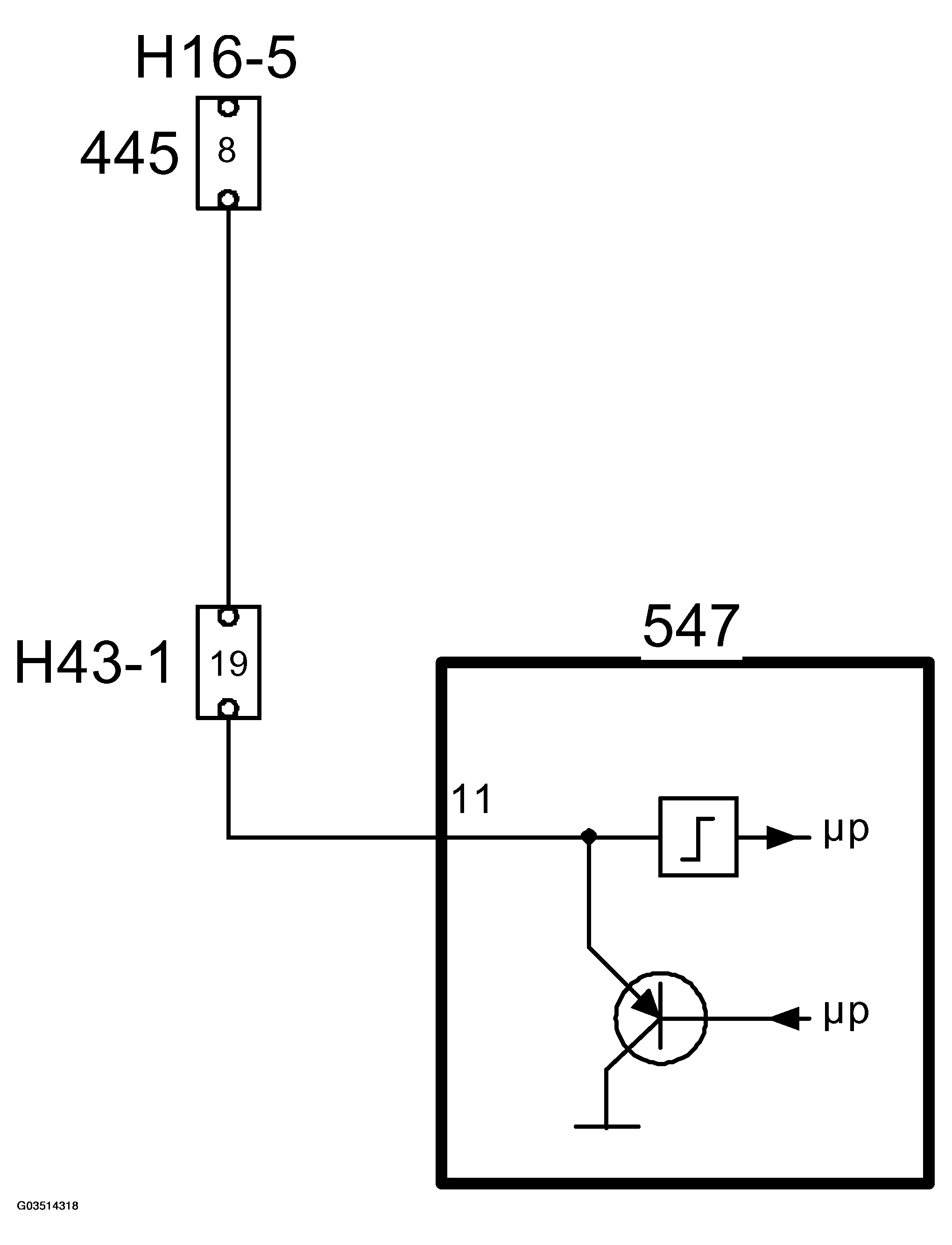

Fig 2: Data Link - Circuit Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.
