Control module ground

The control module is grounded via pin 19 to ground point G2.

The pump motor is grounded via pin 16 to ground points G30 and G40.

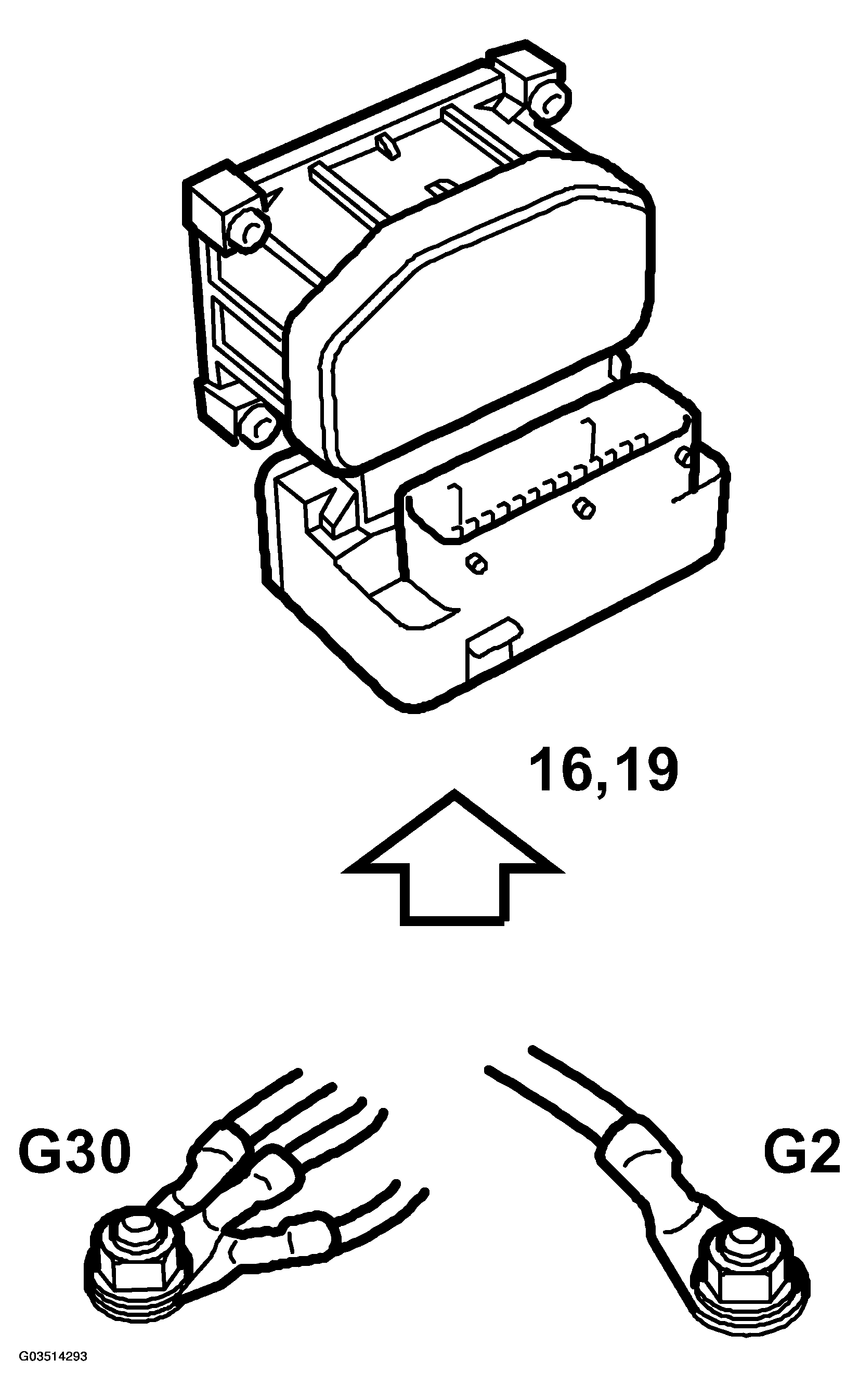

Fig 1: Control Module Ground - Communication Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

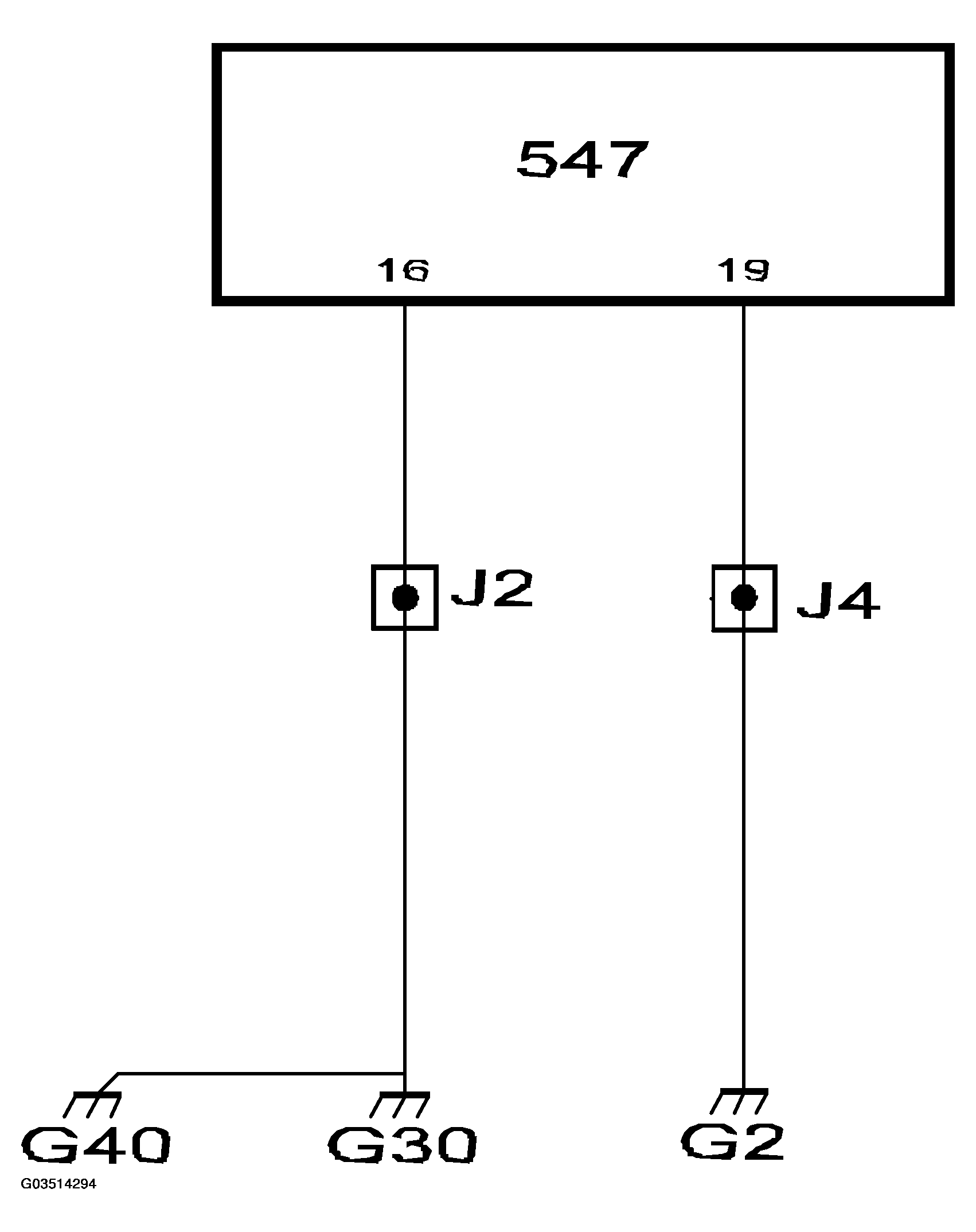

Fig 2: Control Module Ground - Circuit Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.
