Test readings

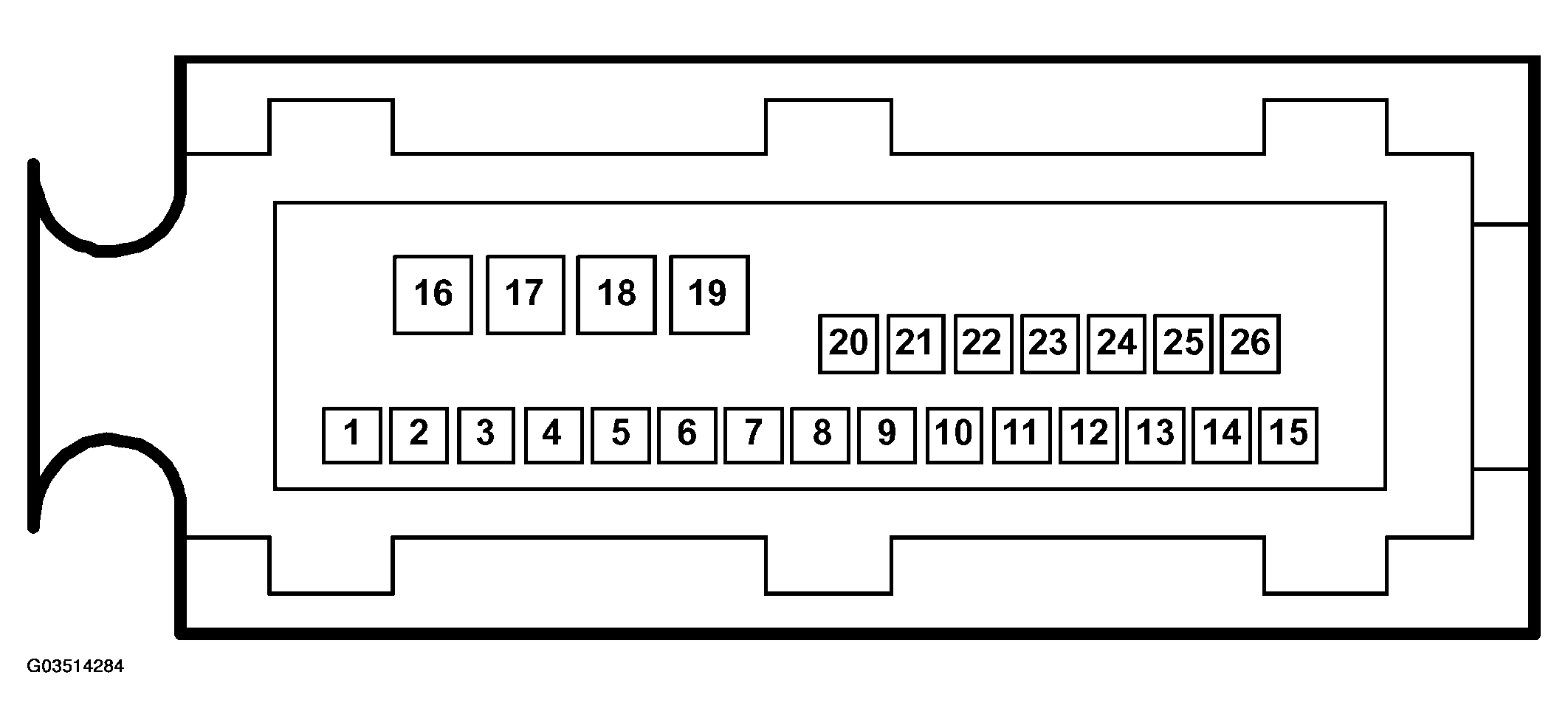

Fig 1: Identifying Control-Module Connections
G03514284Courtesy of SAAB-SCANIA OF AMERICA, INC.
IMPORTANT: The readings apply to measurements taken on the control module's connector (unplugged) unless otherwise stated.

= greater than; = less than; ~ = alternating current (LP: LOGIC PROBE P = select pulse; p = visible pulse)

CONTROL-MODULE CONNECTIONS REFERENCE

Pin Cable colour Component/function In/Out Test conditions Measure across Test reading See
1 WH Wheel sensor, RR: reference ground In Rotate the wheel one turn per second 1-2 100 mVAC REAR-WHEEL SENSORS
2 VT Wheel sensor, RR: signal input In Rotate the wheel one turn per second 2-1 100 mVAC REAR-WHEEL SENSORS
3 GN Wheel sensor, FR: reference ground In Rotate the wheel one turn per second 3-5 100 mVAC FRONT-WHEEL SENSORS
4   Spare
5 GY Wheel sensor, FR: signal input In Rotate the wheel one turn per second 5-3 100 mVAC FRONT-WHEEL SENSORS
6 BU Wheel sensor, FL: reference ground In Rotate the wheel one turn per second 6-7 100 mVAC FRONT-WHEEL SENSORS
7 VT Wheel sensor, FL: signal input In Rotate the wheel one turn per second 7-6 100 mVAC FRONT-WHEEL SENSORS
8 BK Wheel sensor, RL: reference ground In Rotate the wheel one turn per second 8-9 100 mVAC FRONT-WHEEL SENSORS
9 YE Wheel sensor, RL: signal input In Rotate the wheel one turn per second 9-8 100 mVAC REAR-WHEEL SENSORS
10   Spare
11 GN Data link In/Out
12   Spare
13   Spare
14 GN/GY Brake-light switch In Brake pedal depressed 14-16 B+ BRAKE-LIGHT SWITCH
Brake pedal released 14-16 0 V
15 RD/BU Current (+15 circuit) In Ignition ON 15-B+ 0.5 V POWER SUPPLY
16 BK Pump-motor ground In   16-B- 0.5 V RETURN PUMP
17 RD Current (+30 circuit) In   17-B+ 0.5 V POWER SUPPLY
18 RD Current (+30 circuit) In   18-B+ 0.5 V POWER SUPPLY
19 BK Ground In   19-B- 0.5 V CONTROL MODULE GROUND
20   Spare
21 OG ABS warning lamp In Ignition ON 21-B+ 0.5 V ABS WARNING LIGHT
22   Spare
23 VT Wheel speed, RL Out Rotate wheel slowly   0/approx. 12 V
Measure on MIU.
WHEEL-SPEED SIGNAL OUTPUT
Rotate the wheel one turn per second   about 6 V
24   Spare
25 GY/RD Wheel speed, FR Out Rotate wheel slowly   0/approx. 12 V
Measured with Trionic
WHEEL-SPEED SIGNAL OUTPUT
Rotate the wheel one turn per second   About 6 V
26   Spare
