Grounding Point G2: Notes

Fig 1: Identifying Grounding Point G2
G03514226Courtesy of SAAB-SCANIA OF AMERICA, INC.

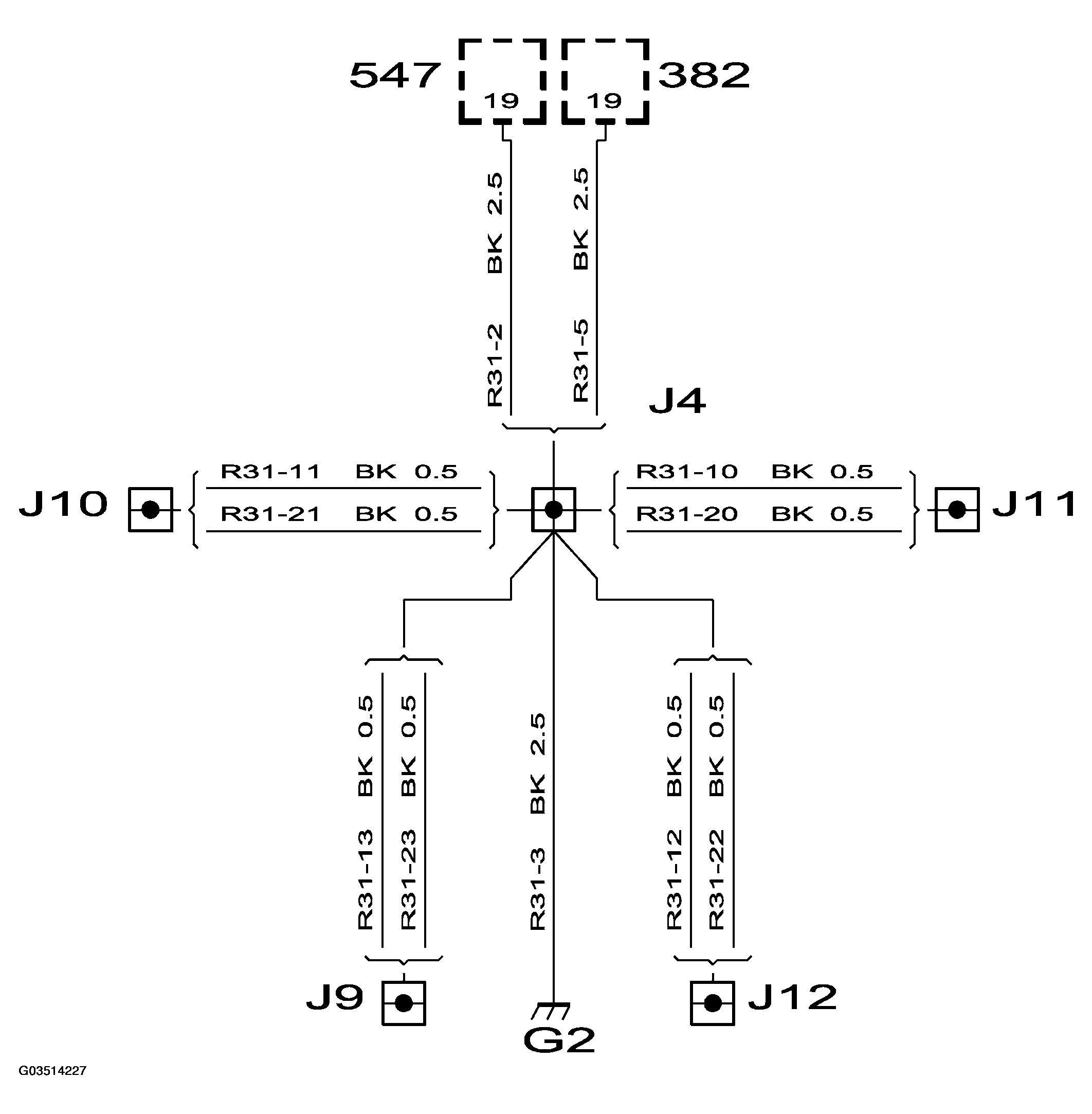

Fig 2: Identifying Grounding Point G2 - Crimp
G03514227Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  On the left-hand structural member behind the headlamp (battery ground).
