To remove

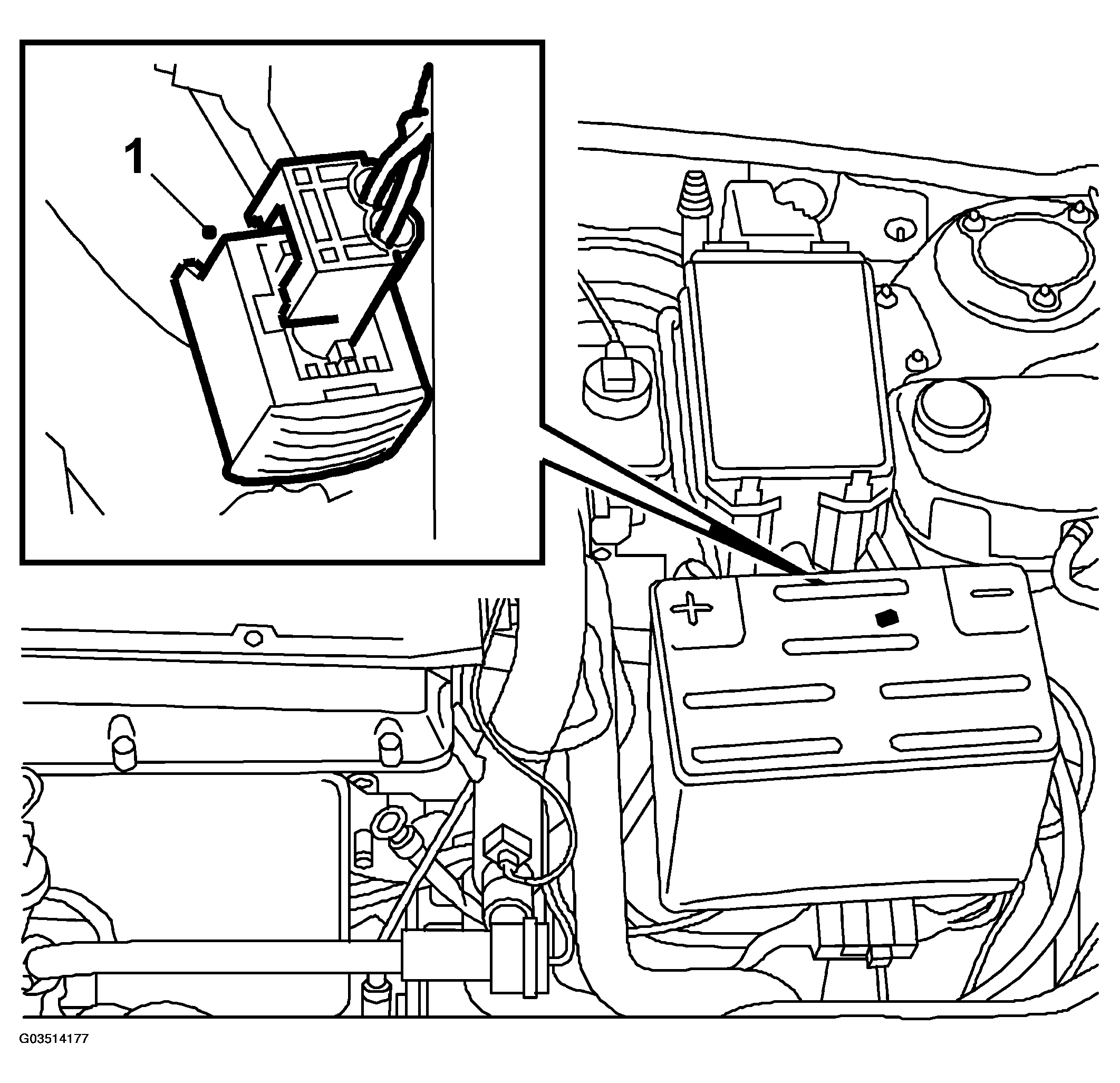

Fig 1: Illustration For Step 1
G03514177Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Unplug the connector.
  2. Raise the car and remove the wheel.
  3. Clean the area round the wheel sensor using a soft wire brush.
  4. Undo the wheel sensor retaining bolt and remove the wheel sensor.

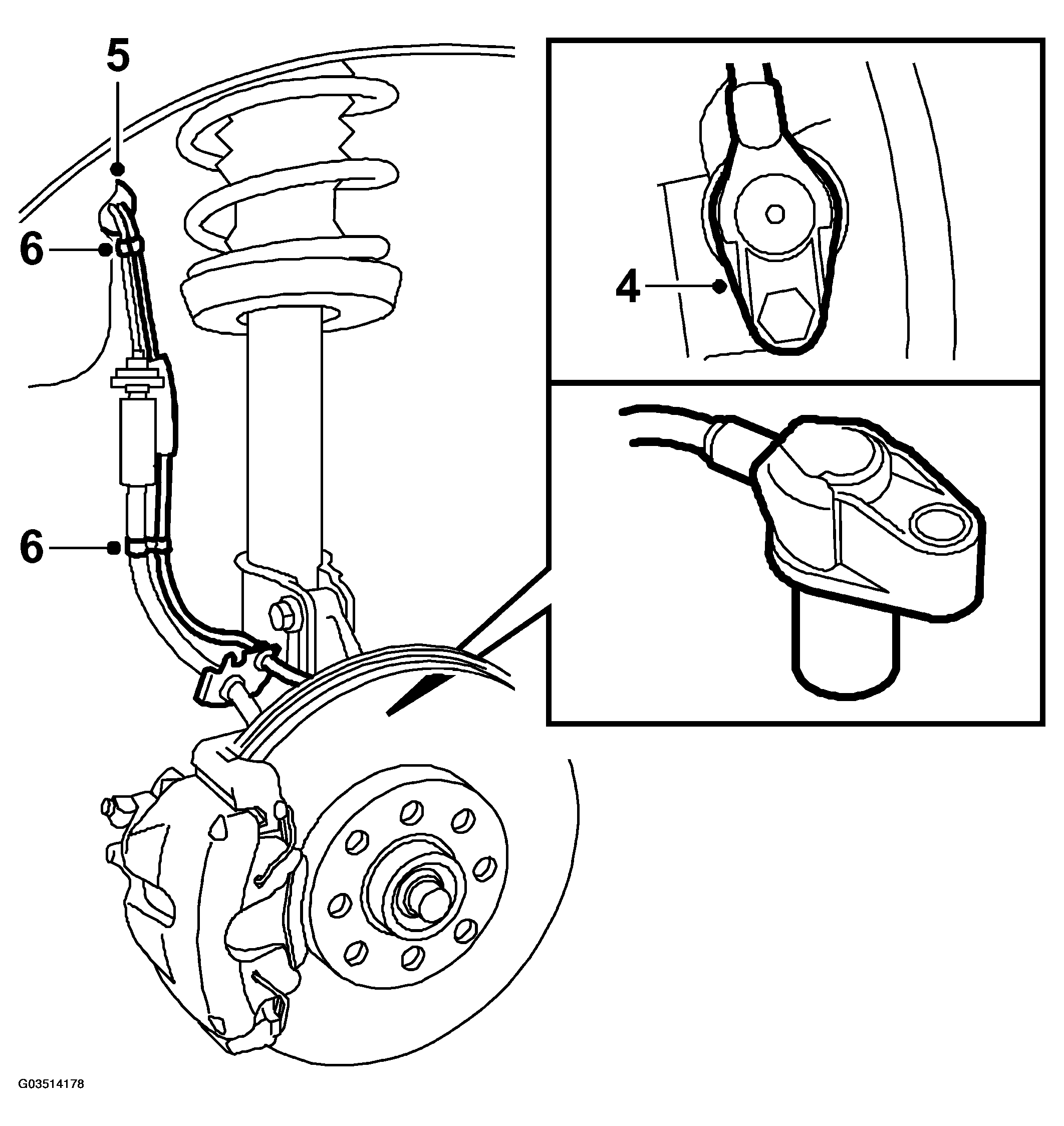

    Fig 2: Illustration For Step 4-6
    G03514178Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Remove the grommet and withdraw the lead.
  6. Detach the lead from the clips and lift out the sensor.
