To fit

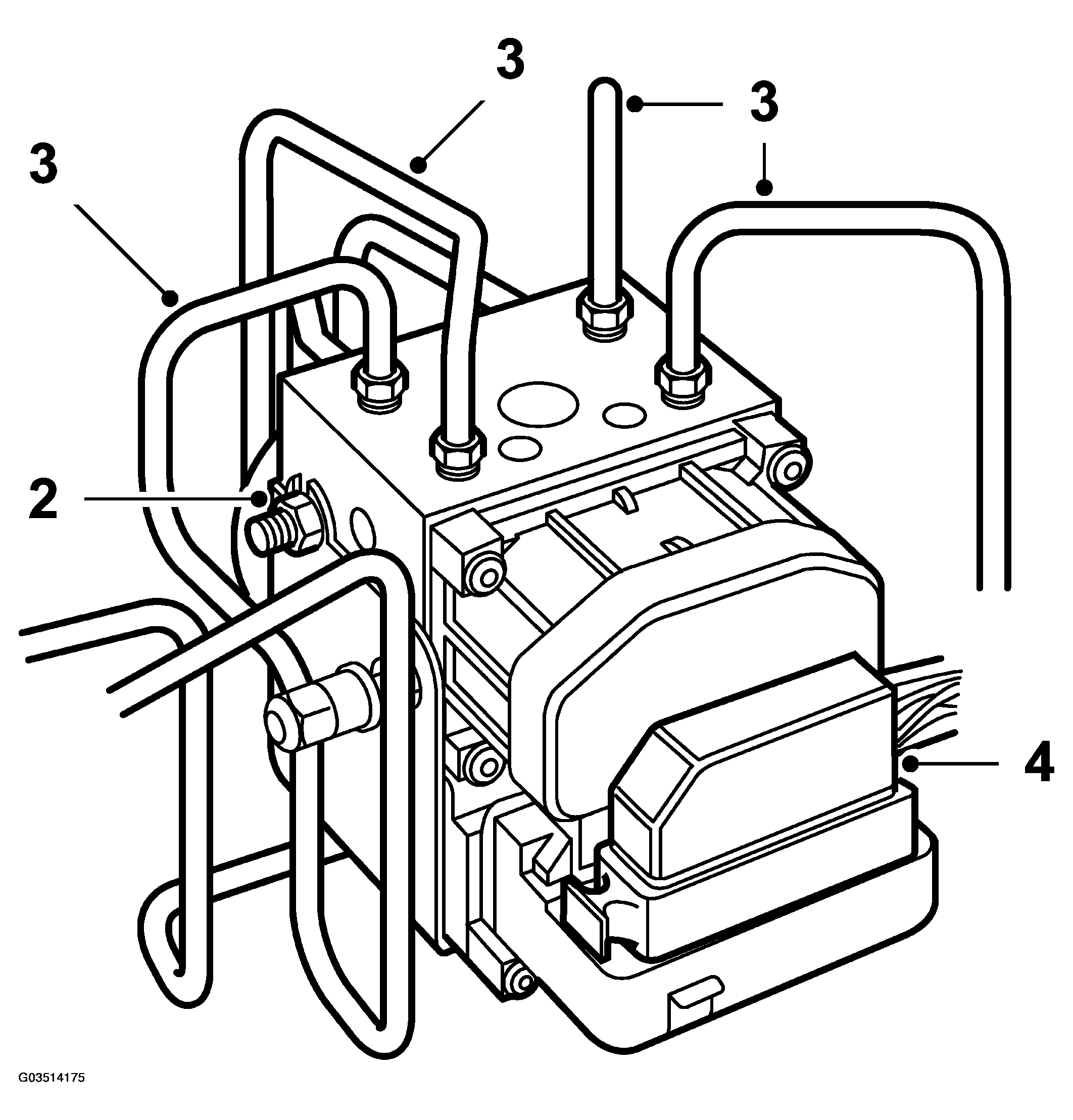

Fig 1: Illustration For Step 2-4
G03514175Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Lift the hydraulic unit into position, taking care not to damage the pipes.
  2. Fit the two nuts.

    Tightening torque 20 Nm (15 lbf ft)  .

  3. Remove the plugs and reconnect the pipes. Fit the brake-pipe nipples (rear pipes first) finger tight and then tighten with a spanner.
  4. Plug in the connector and fit the main fuse box.
  5. Secure the battery lead to the fuse box with a cable tie.

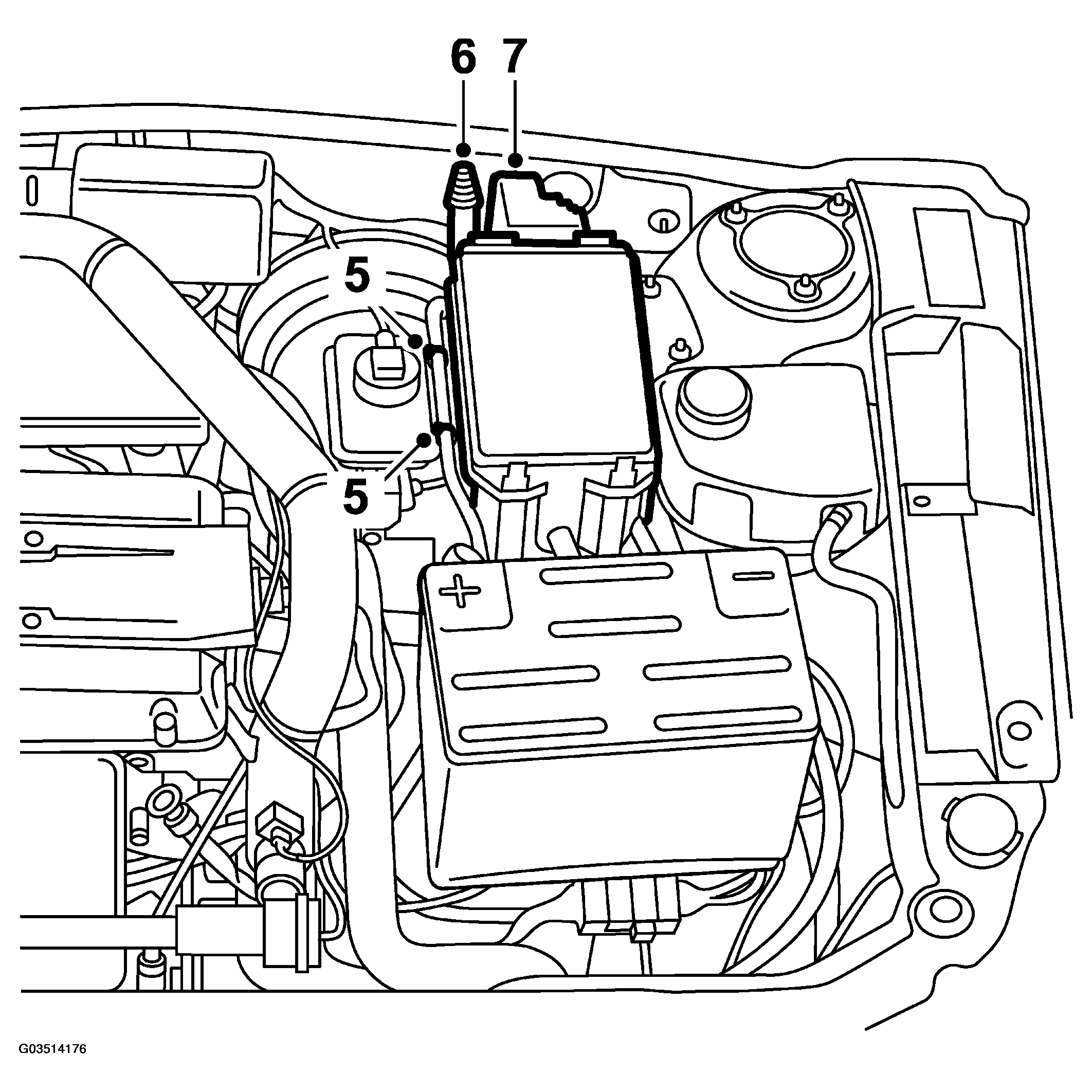

    Fig 2: Illustration For Step 5-7
    G03514176Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Plug in the connector to the anti-theft alarm.
  7. Hook on the Maxi-fuse holder.
  8. Bleed the brake system, see BLEEDING BRAKE SYSTEM .
