Home >> Saab >> 2001 >> 9-5 Base, 4D Sedan, Standard >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Theft Protection >> Component Location >> Control Module, TWICE (632)

Control Module, TWICE (632)

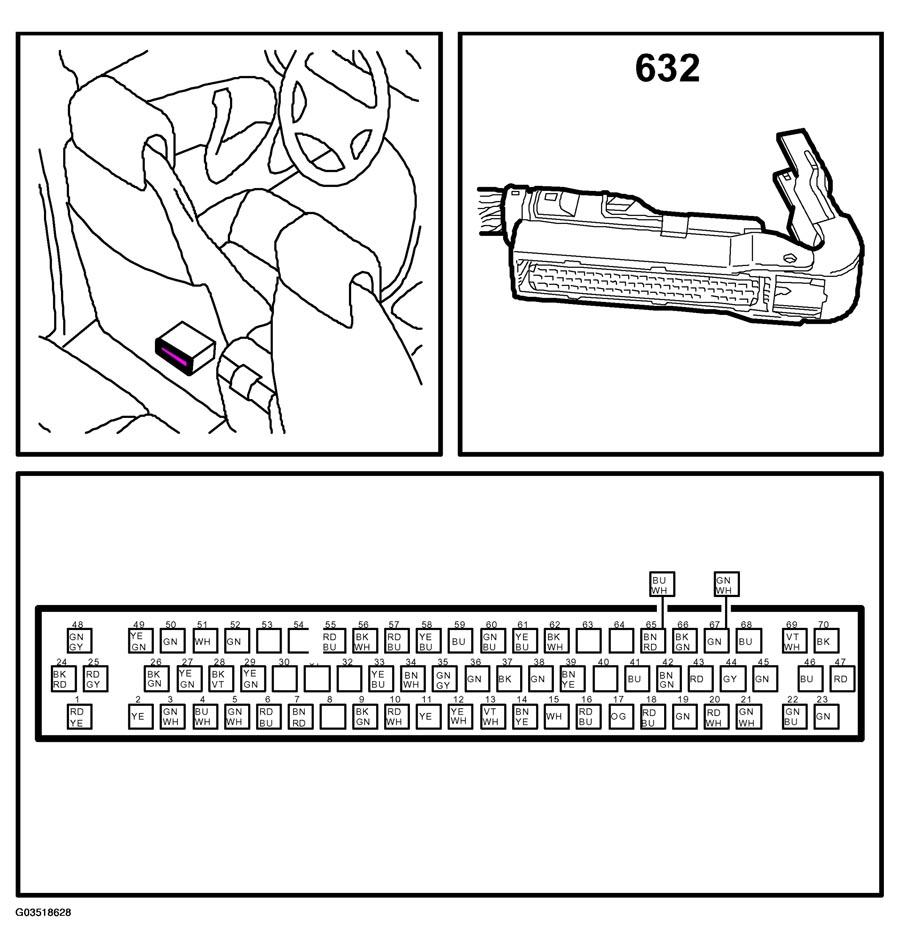

Fig 1: Identifying Control Module TWICE Connector Pinouts(632)
G03518628Courtesy of SAAB-SCANIA OF AMERICA, INC.
