To remove

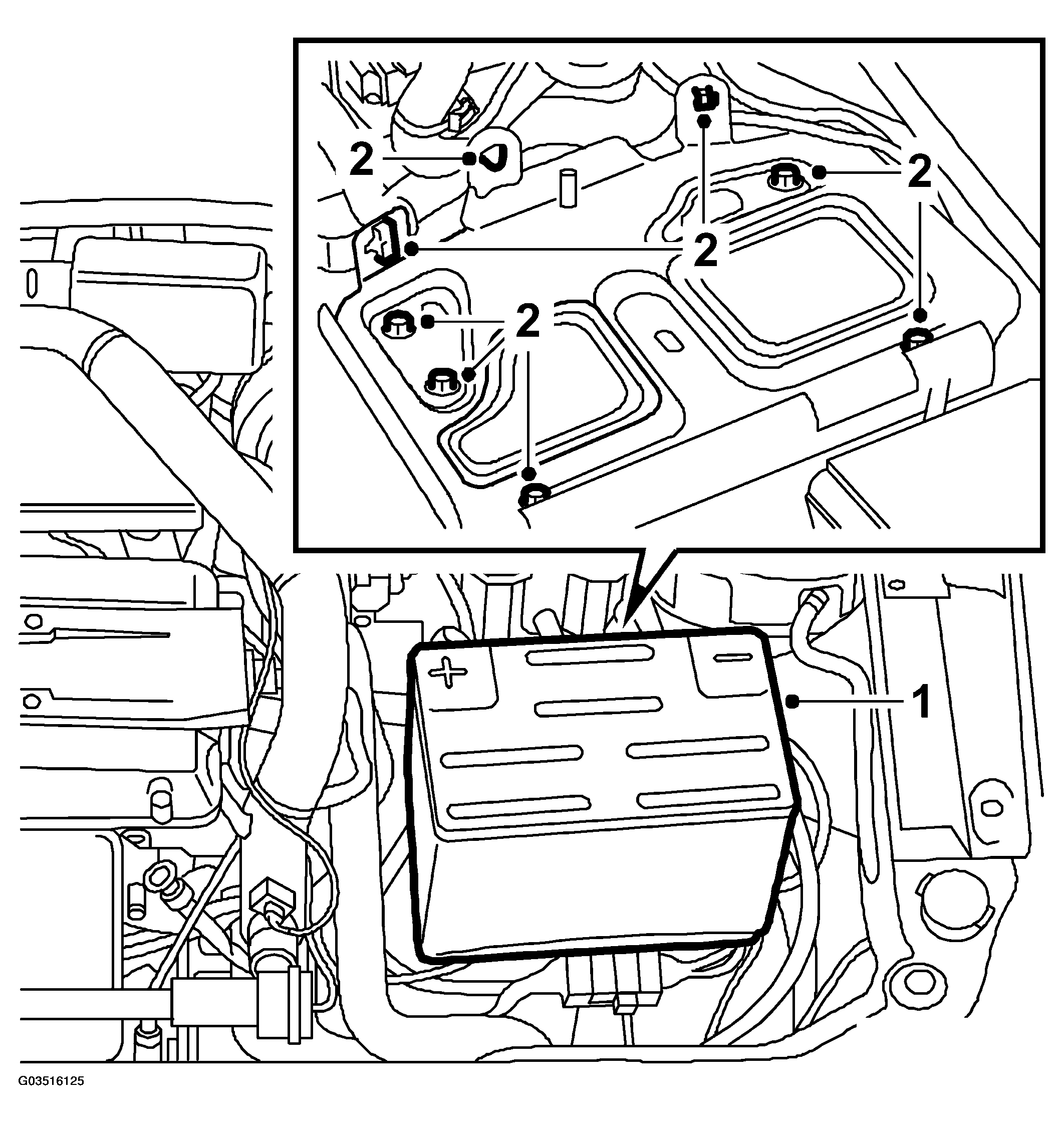

Fig 1: Illustration For Steps 1-2
G03516125Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the battery cover, battery and battery tray.
  2. Disconnect the battery cable.
  3. Clean the area round the sensor. Remove the sensor's retaining bolt.

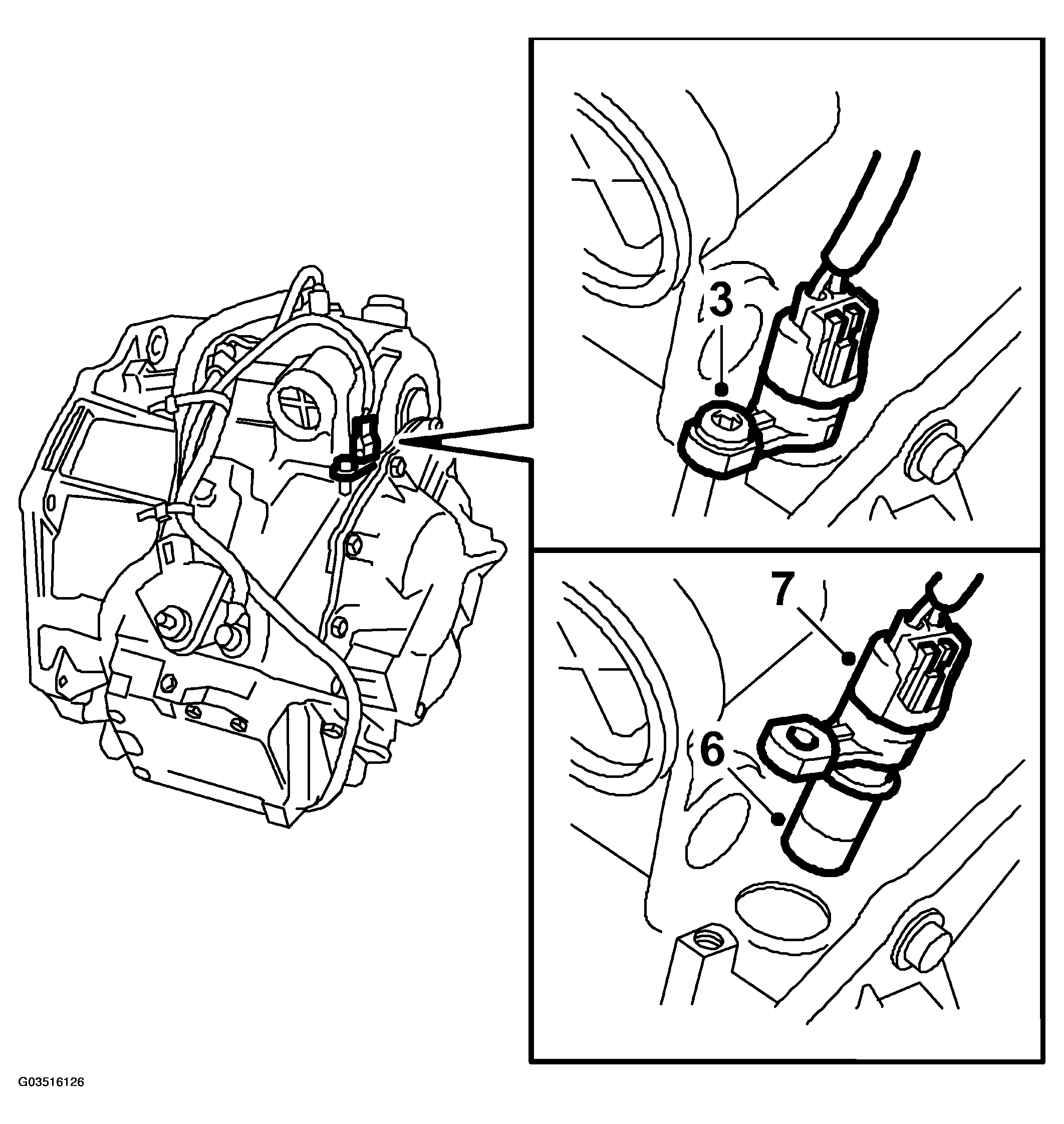

    Fig 2: Illustration For Steps 3, 6-7
    G03516126Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Raise the car.
  5. Remove the left-hand front wheel.
  6. Gently work the sensor out of its location.
  7. Unplug the connector.
