Input shaft speed sensor: Fitting

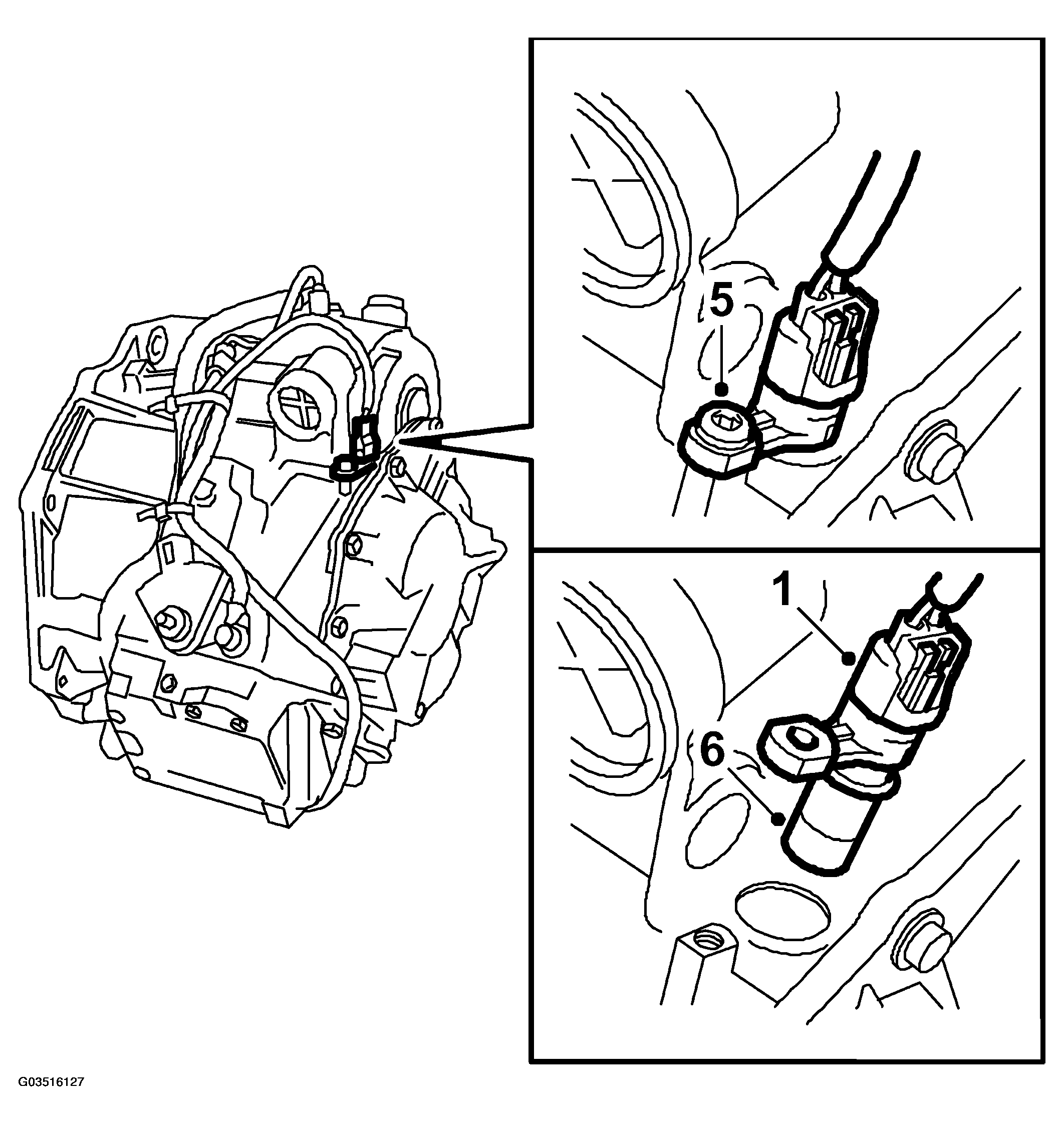

Fig 1: Illustration For Steps 1, 5-6
G03516127Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Connect the sensor.
  2. Fit the sensor in place.
  3. Fit the front wheel.

    Tightening torque: 120 Nm (89 lbf ft)

  4. Lower the car to the floor.
  5. Tighten the sensor's retaining bolt.

    Tightening torque: 6 Nm (4.5 lbf ft)

  6. Refit the battery tray, battery and battery cover.

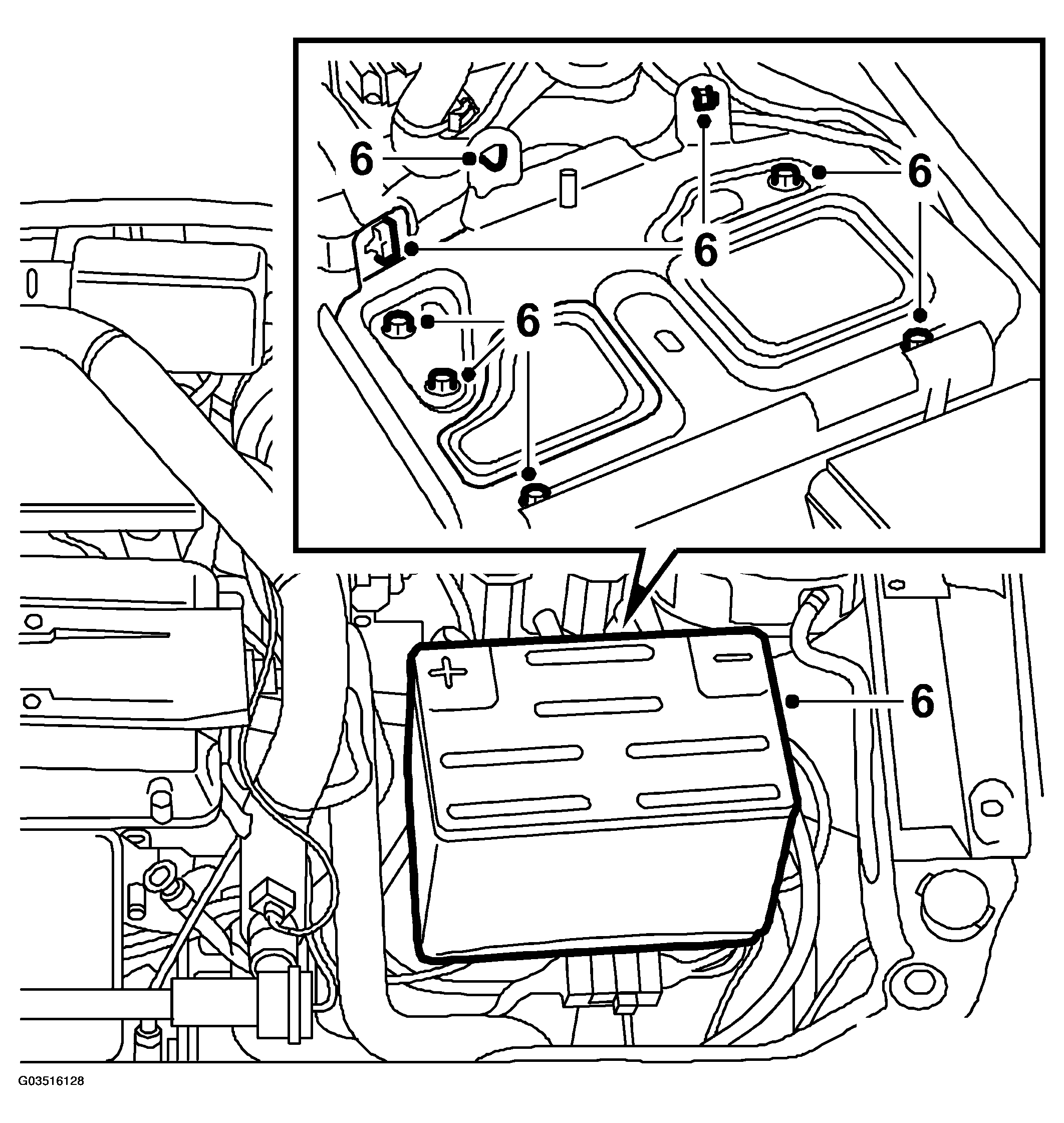

    Fig 2: Illustration For Step 6
    G03516128Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Set the right time on the clock.
