To remove

IMPORTANT: It is very important to observe great cleanliness when working on the gearbox. Dirt particles can seriously damage the function and service life of the gearbox.

Drain the oil from the transmission in the car before starting removal. Remove the GEARBOX from the car. See removing gearbox assembly. Fit the dipstick pipe.

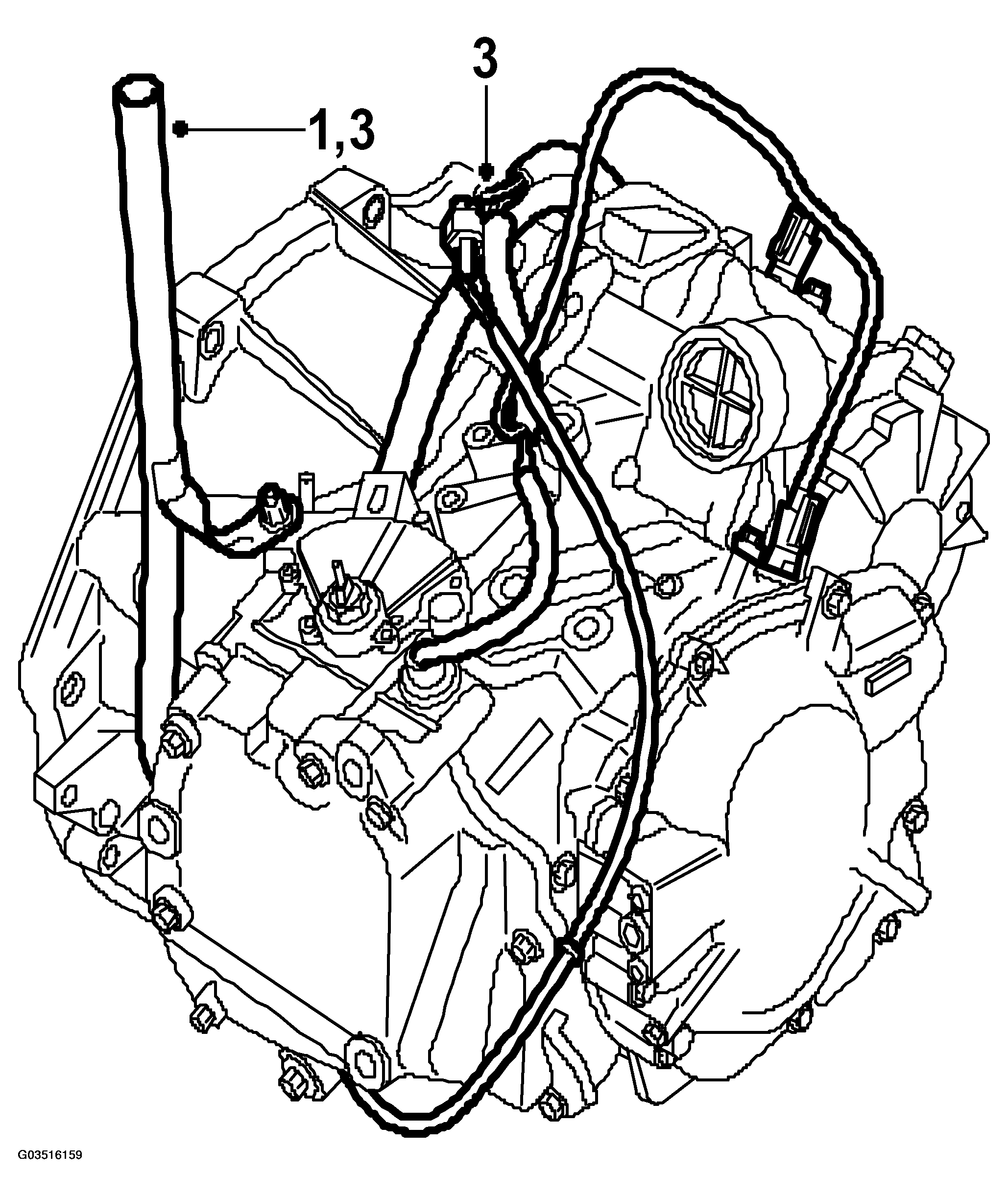

Fig 1: Illustration For Steps 1, 3
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Plug the shaft openings and clean the exterior of the gearbox. Use plug 91 32 929, 91 32 937 and 87 92 244. Plug the vent pipe.
Remove the dipstick pipe.
Fit holder 87 92 392 HOLDER, TRANSMISSION on the gearbox. Use flange screw M8x25 and fit the gearbox in the stand 78 74 878 FLOOR STAND .

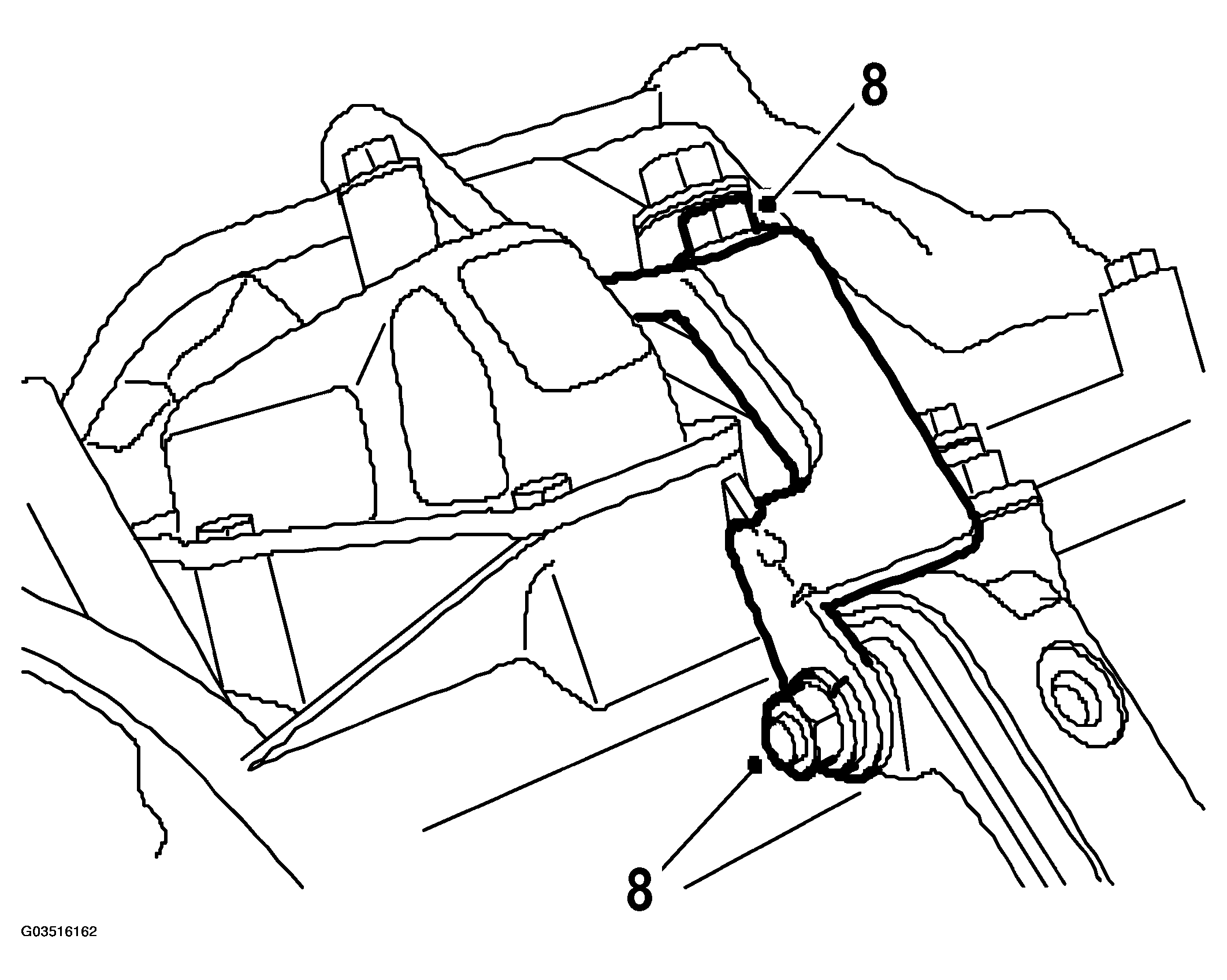

Fig 2: Illustration For Step 4
Courtesy of SAAB-SCANIA OF AMERICA, INC.

NOTE: Organize the workplace so that groups of associated parts that are dismantled can be kept together to facilitate refitting.
Fit tool 87 91 766 GRIPPING TOOL, TORQUE CONVERTER into the torque converter. Remove holder 87 92 574 HOLDER .

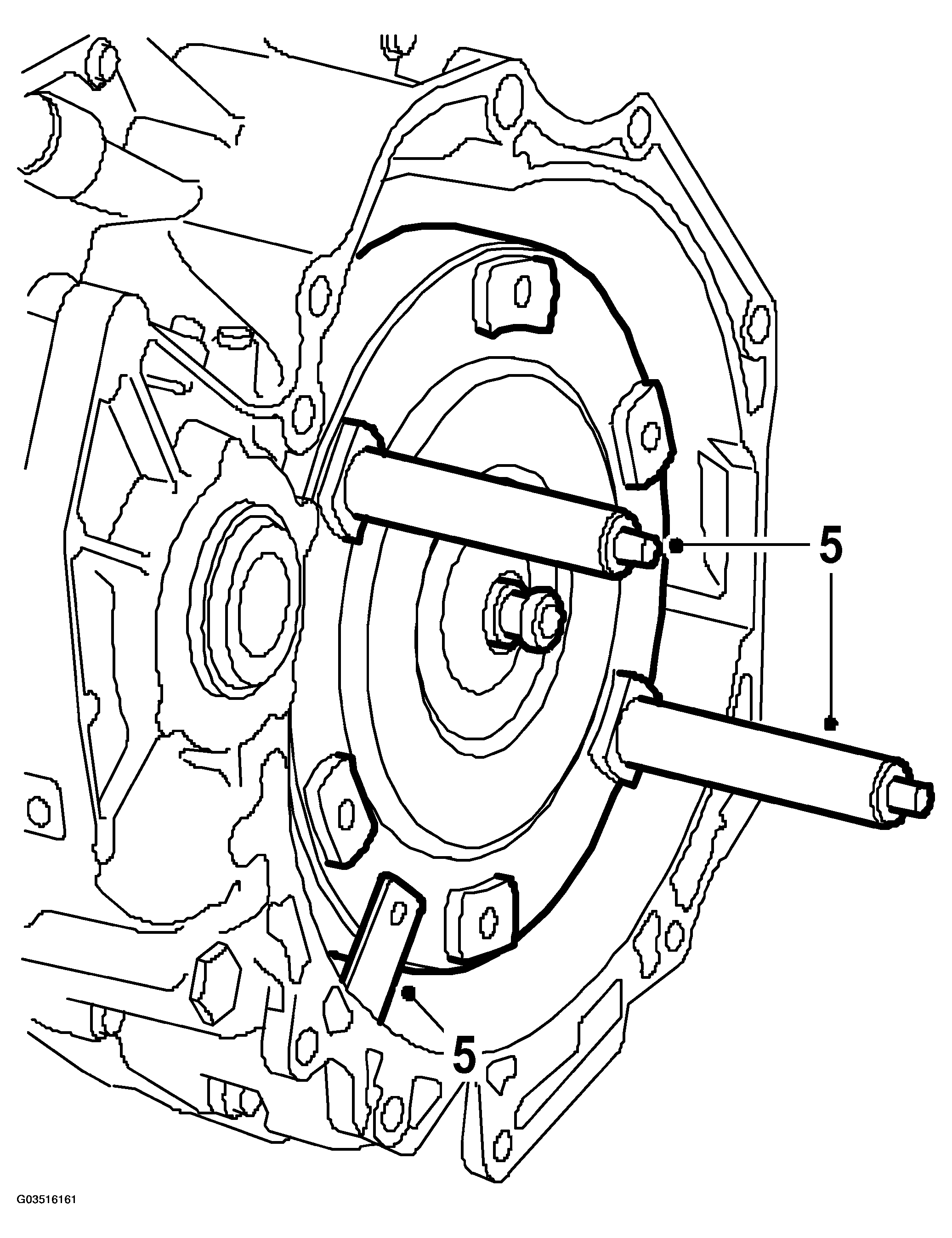

Fig 3: Illustration For Step 5
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove the torque converter.
Turn the gearbox through 180° in the stand.
Remove the cover plate for the temperature sensor.

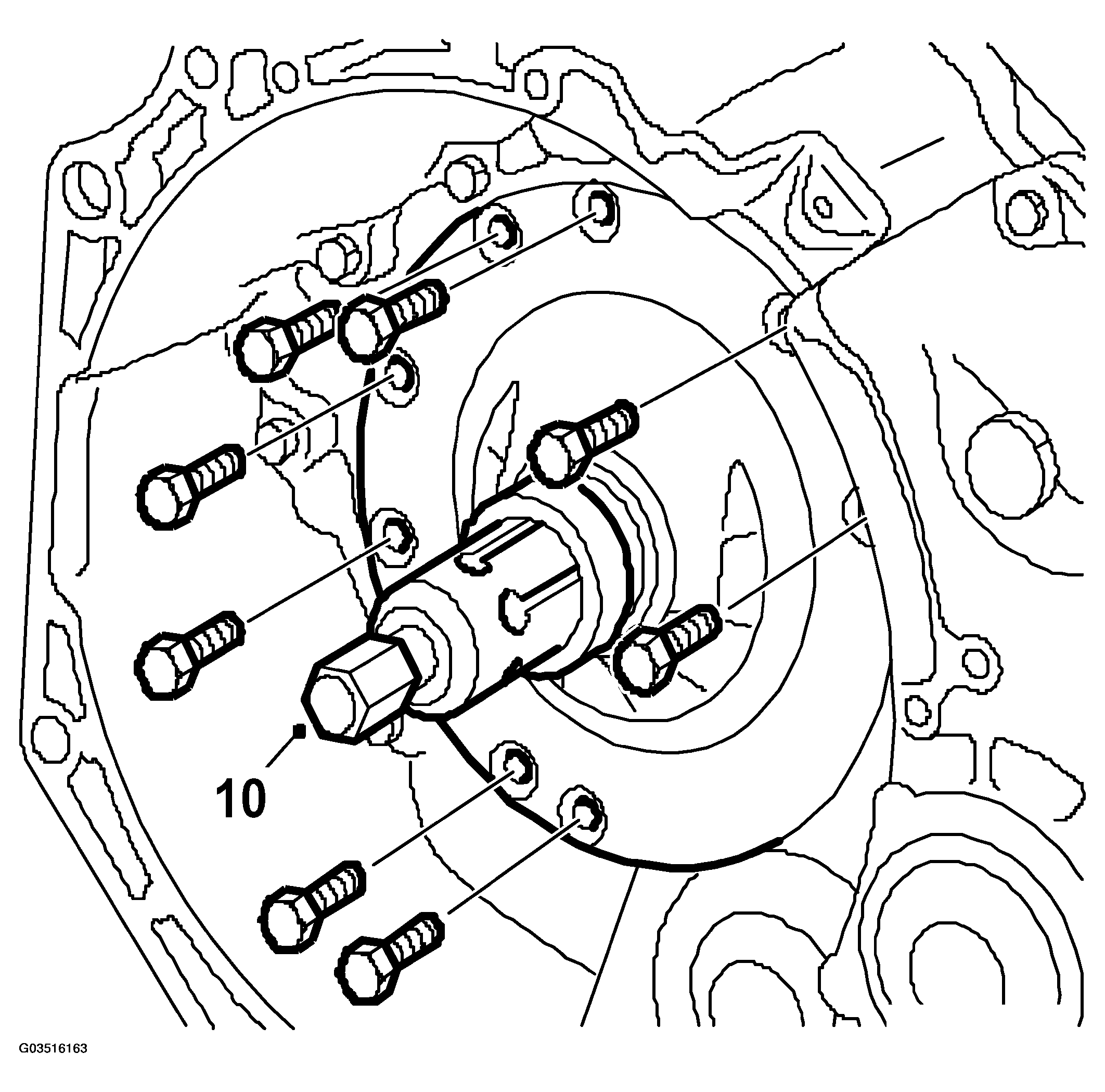

Fig 4: Illustration For Step 8
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove the bolts securing the oil pump to the gear case
Pull away the oil pump and the brake unit from the gearbox using puller 87 92 699 PULLER (KM-993) .

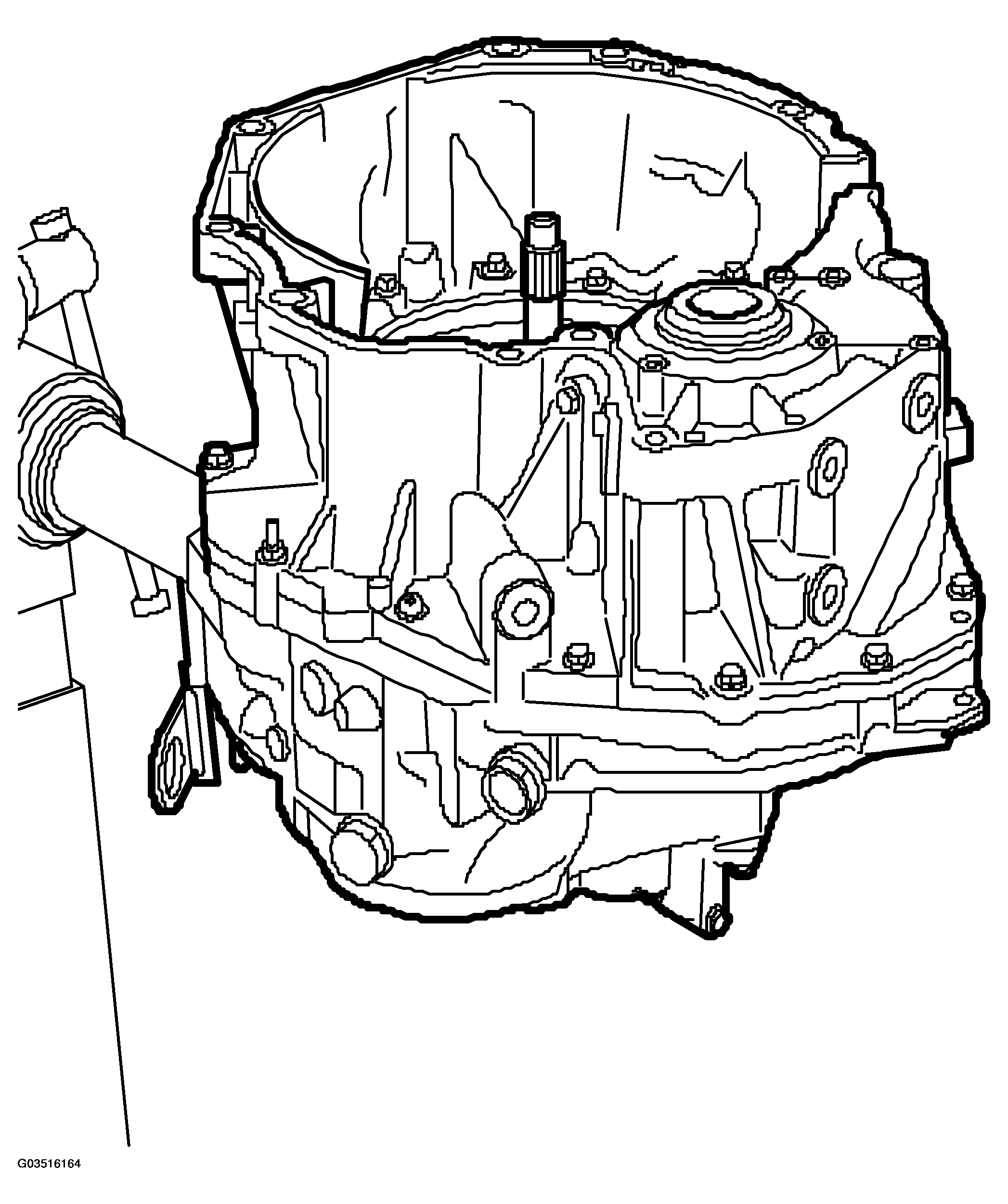

Fig 5: Illustration For Step 10
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Turn the gearbox through 90° in the stand.

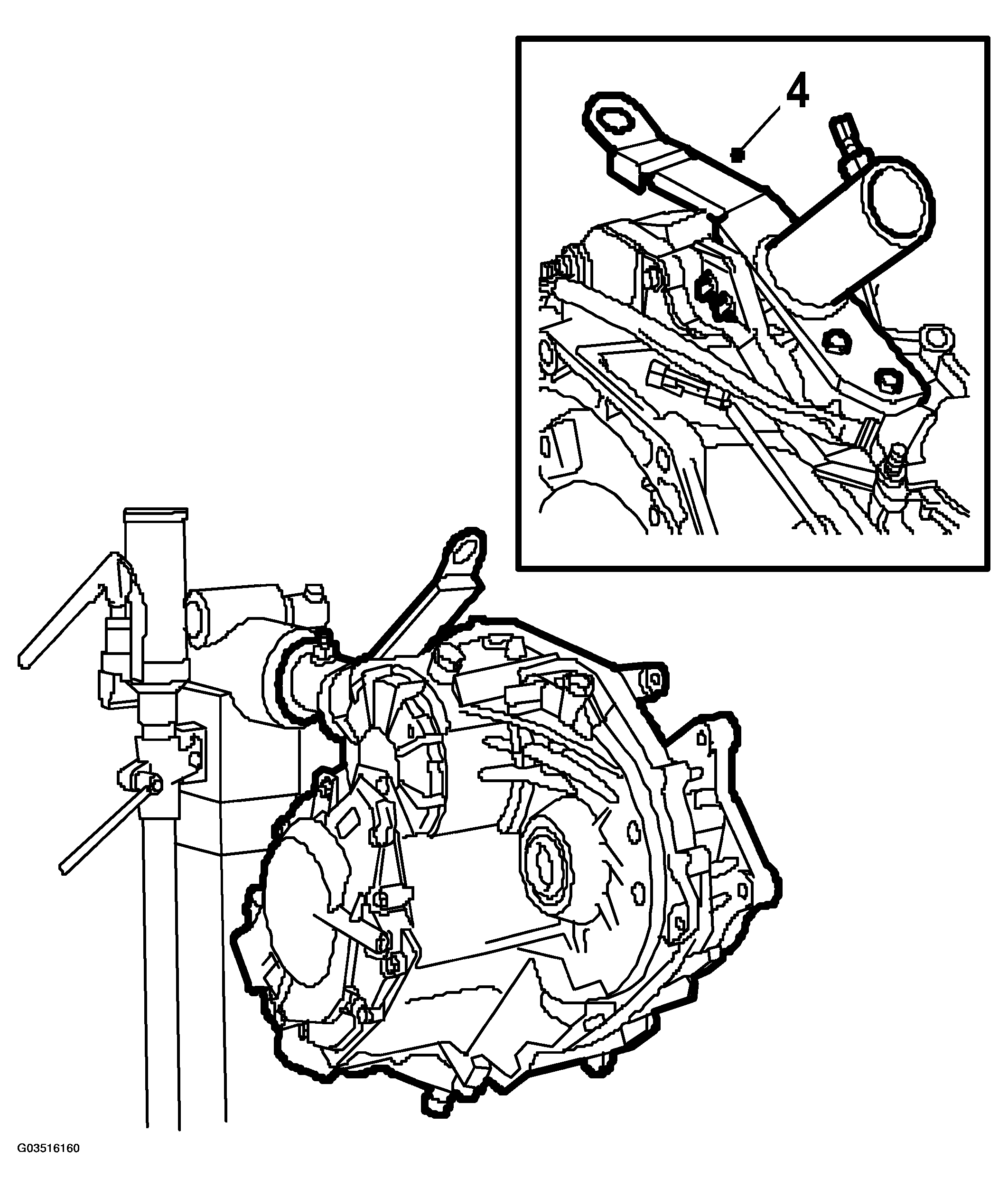

Fig 6: Identifying Gearbox Position In Stand
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove the torque converter shell. Knock loose the housing with a plastic mallet. Remove the small seal.

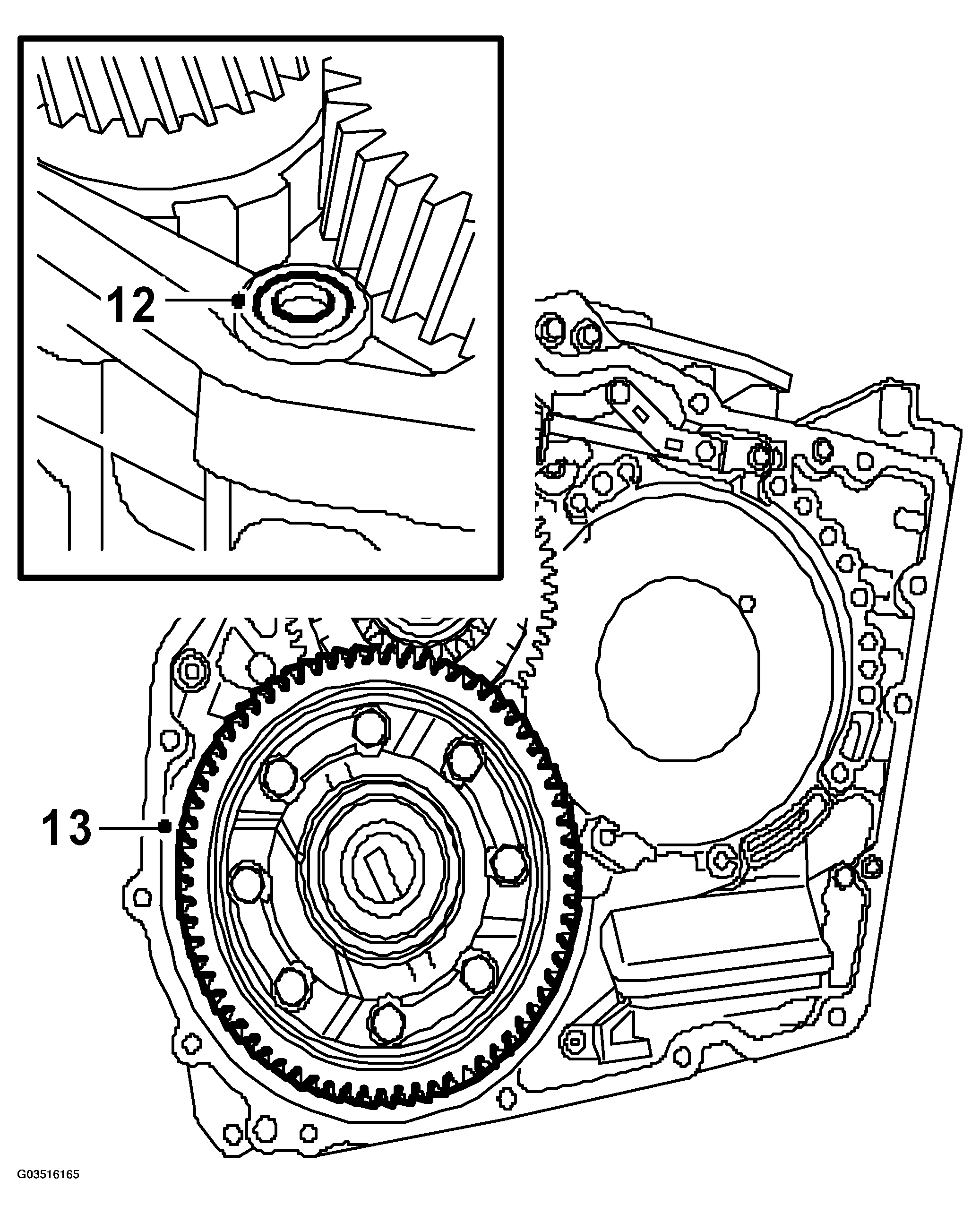

Fig 7: Illustration For Steps 12-13
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Lift out the differential unit.
Turn the gearbox through 90°.
Remove any gasket remains from the gear case and torque converter shell sealing surfaces. Use the gasket scraper with great care.
IMPORTANT: The remains of old gaskets and other particles must under no circumstances fall into the oil ducts, openings or components.
Knock out the shaft seals.
Fit puller 87 91 683 PULLER and 87 91 675 PULLER and remove the bearing race for the taper roller bearing in the torque converter shell by heating around the bearing seat with a hot-air gun for about 5 minutes. Pull out the bearing. Heat and pull out the bearing race with shims from the gear case.

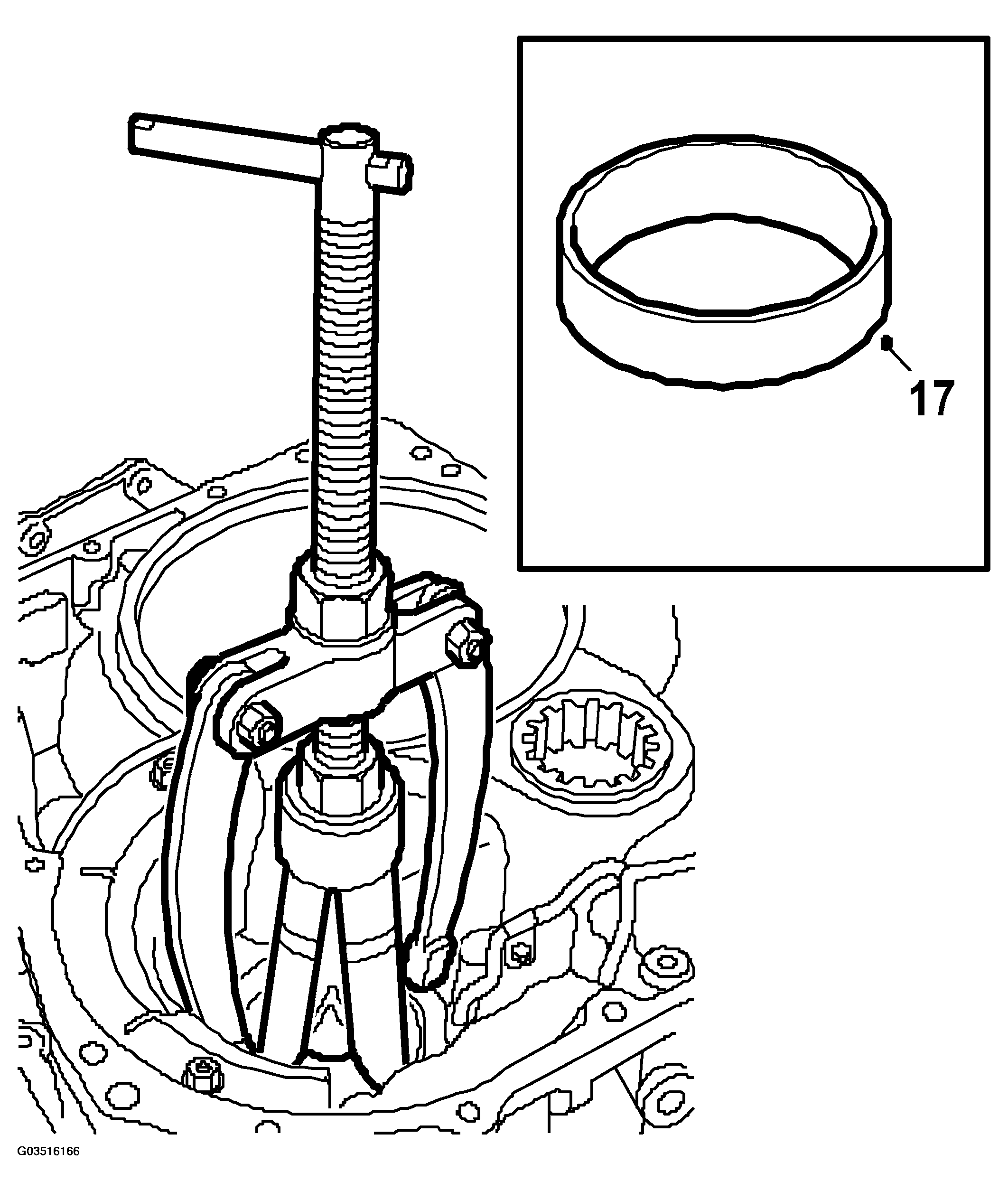

Fig 8: Illustration For Step 17
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Bend out the locking washers on the crown wheel and remove the bolts. Knock away the crown wheel using a splinter-free plastic mallet.
