Valve gear: Notes

WARNING: This page is about a different variant/trim than selected.

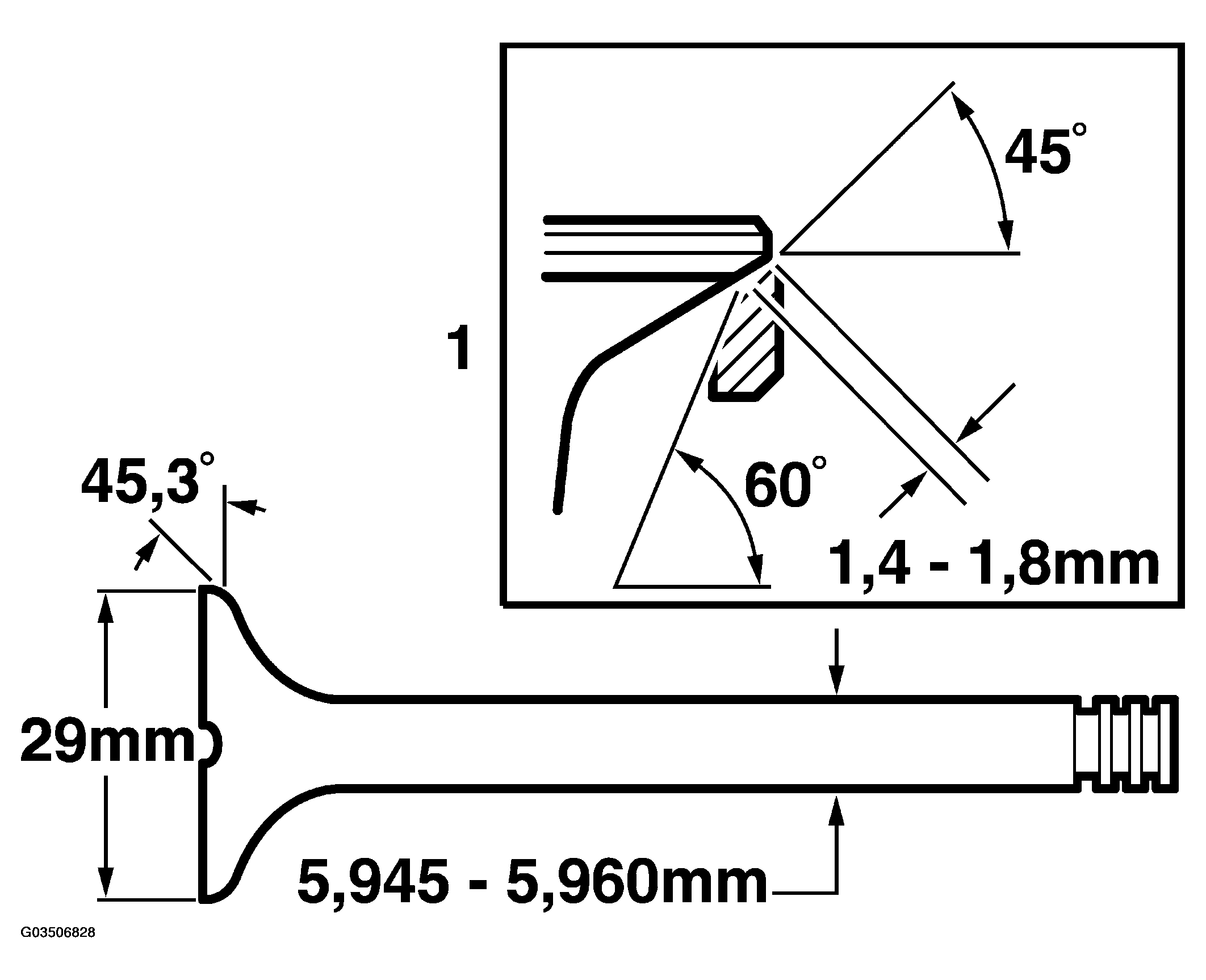

Fig 1: Identifying Exhaust Valve

Courtesy of SAAB-SCANIA OF AMERICA, INC.

The exhaust valve (1) is available in two oversizes:

EXHAUST VALVE SPECIFICATIONS

+0.075 mm	diameter 6.020-6.035
+0.150 mm	diameter 6.095-6.110

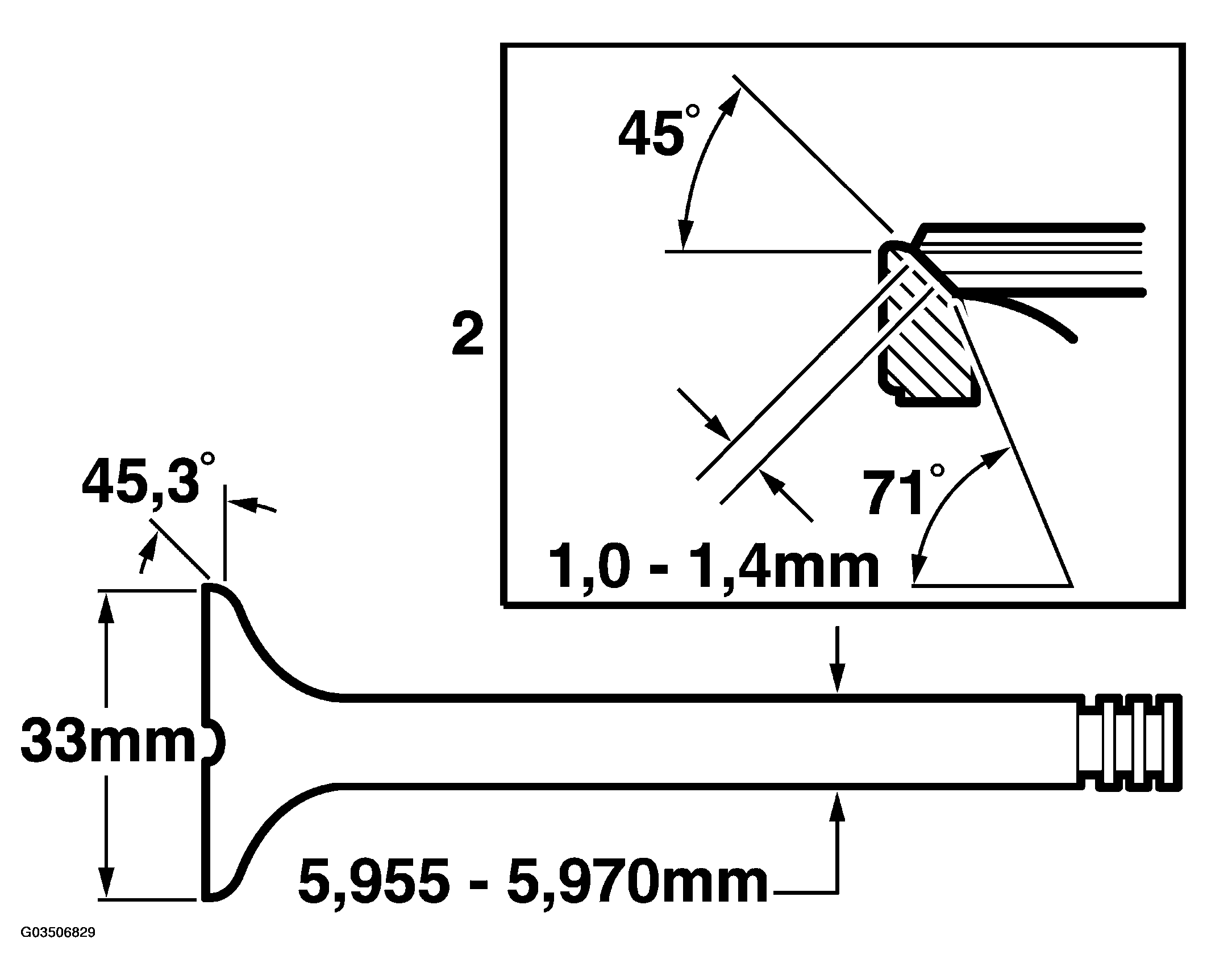

Fig 2: Identifying Inlet Valve

Courtesy of SAAB-SCANIA OF AMERICA, INC.

The inlet valve (2) is available in two oversizes:

INLET VALVE SPECIFICATIONS

+0.075 mm	diameter 6.030-6.045
+0.150 mm	diameter 6.105-6.120
