General data

GENERAL DATA

Oil volume, incl. Filter with oil cooler litres 5.4
  when servicing litres 4.0
Difference in volume, max-min   litres 1.0
Grade of oil     See ENGINE OIL AND OIL FILTER
Viscosity     See ENGINE OIL AND OIL FILTER
IMPORTANT: The recommended grades of oil contain all necessary additives and the use of additional additives should therefore be avoided.

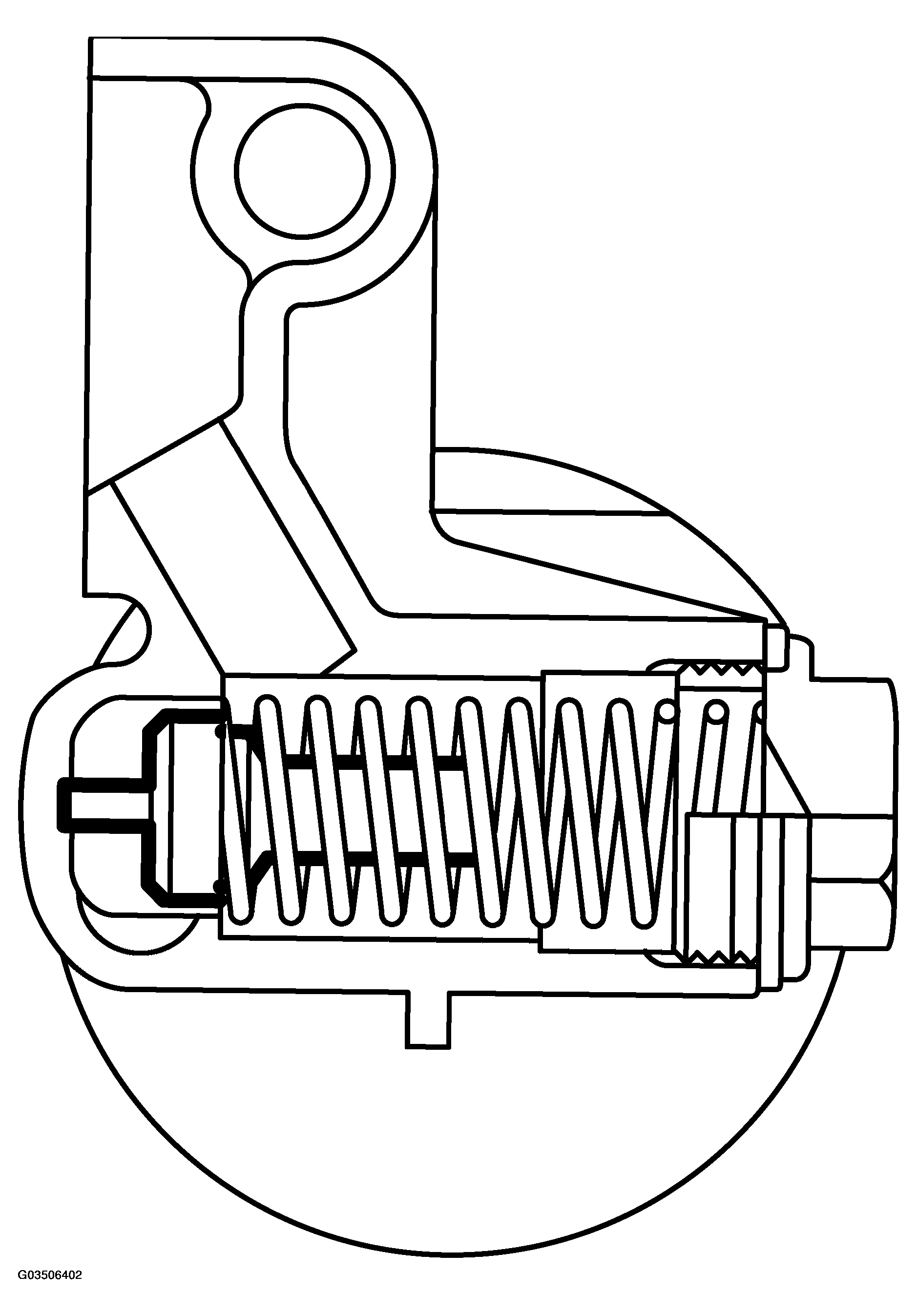

Fig 1: Identifying Oil Pressure Relief Valve
G03506402Courtesy of SAAB-SCANIA OF AMERICA, INC.
