To remove

  1. Cover the wings and remove the cover over the battery. Note the radio code where applicable. Remove the top engine cover.

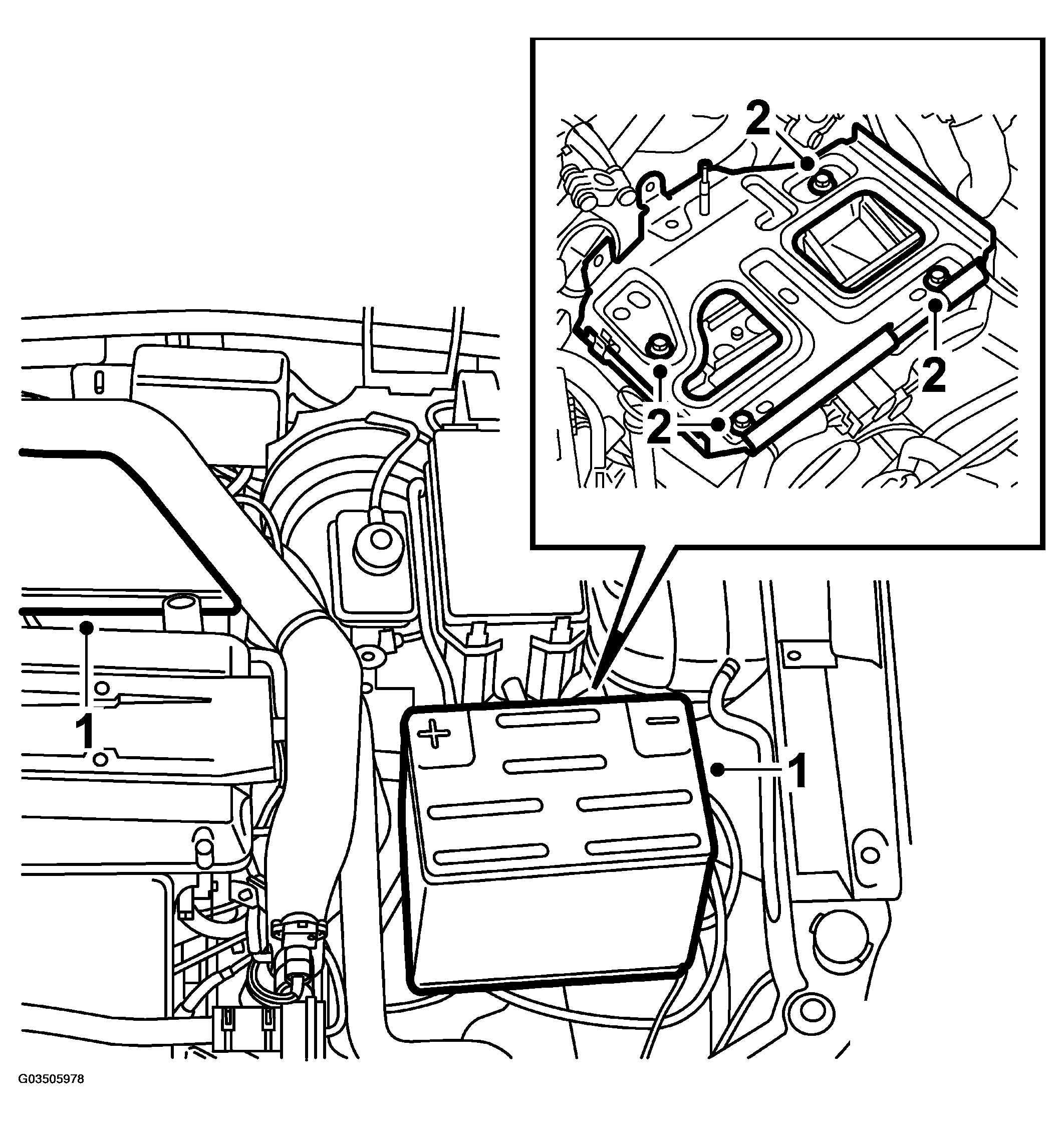

    Fig 1: Illustration For Step 1-2
    G03505978Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Detach the battery vent hose and remove the battery and battery tray.
  3. Relieve the weight on the engine with 83 94 850 LIFTING BEAM .

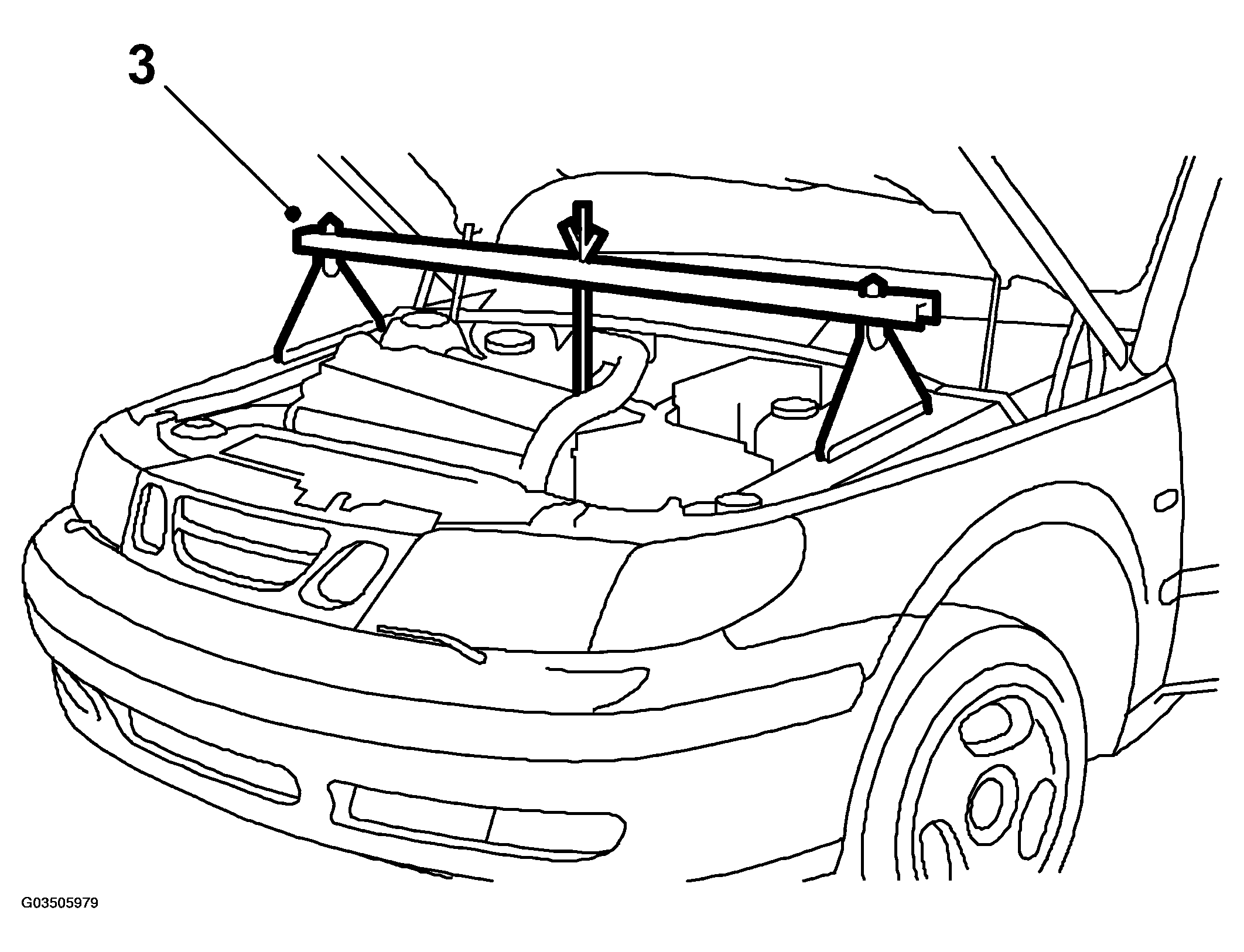

    Fig 2: Illustration For Step 3
    G03505979Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Undo the center nut and bolts on the engine pad.

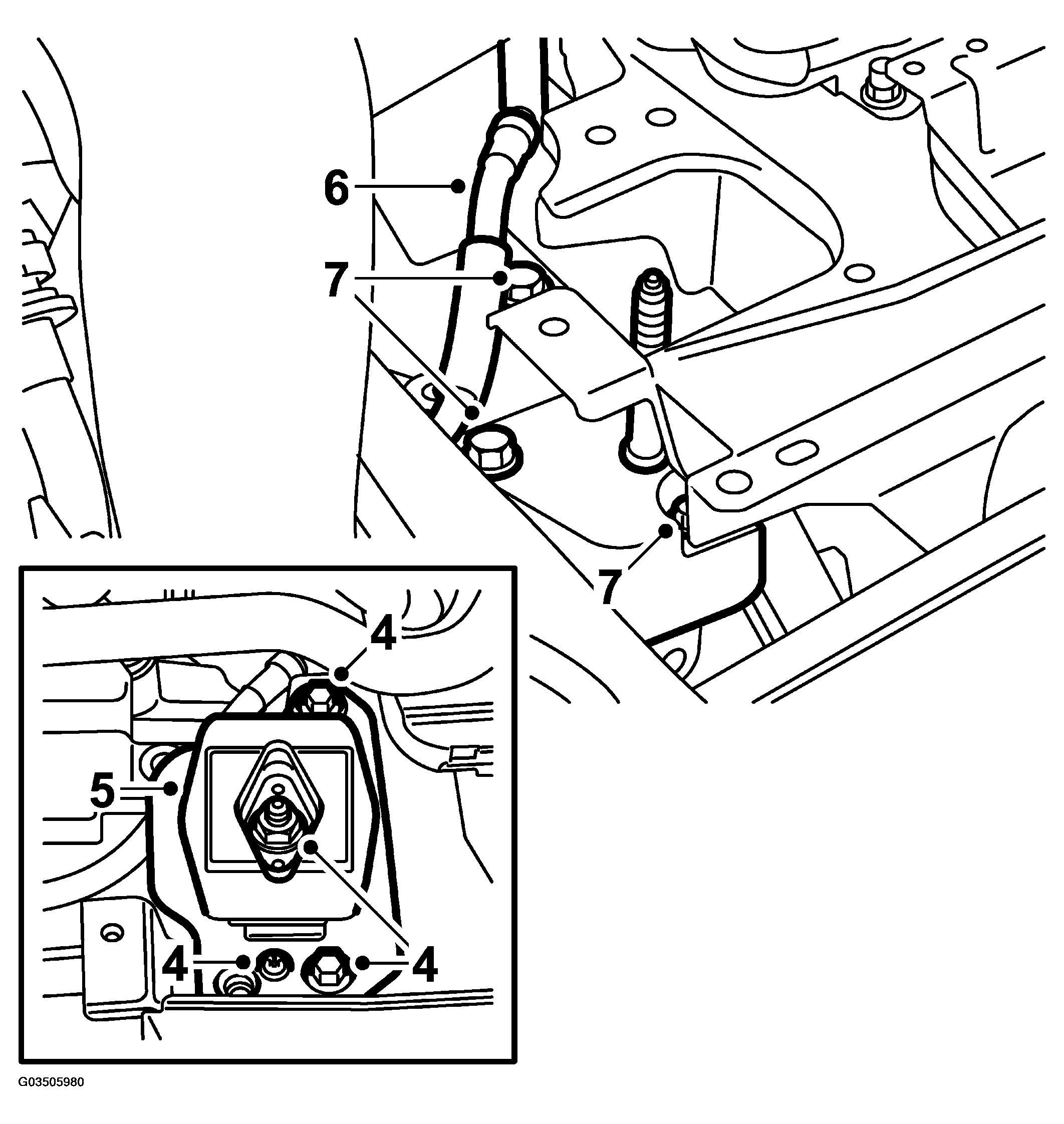

    Fig 3: Illustration For Step 4-7
    G03505980Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Remove the engine pad.
  6. Detach the clutch hydraulic hose from its fastening.
  7. Remove the engine mounting.
