Interior lighting: Notes

The car's interior lighting is switched on and off automatically or manually depending on the setting of the selector switch (1-0-2). The selector has the following functions:

1 - Interior lighting on.

0 - Automatic switching

2 - Interior lighting off.

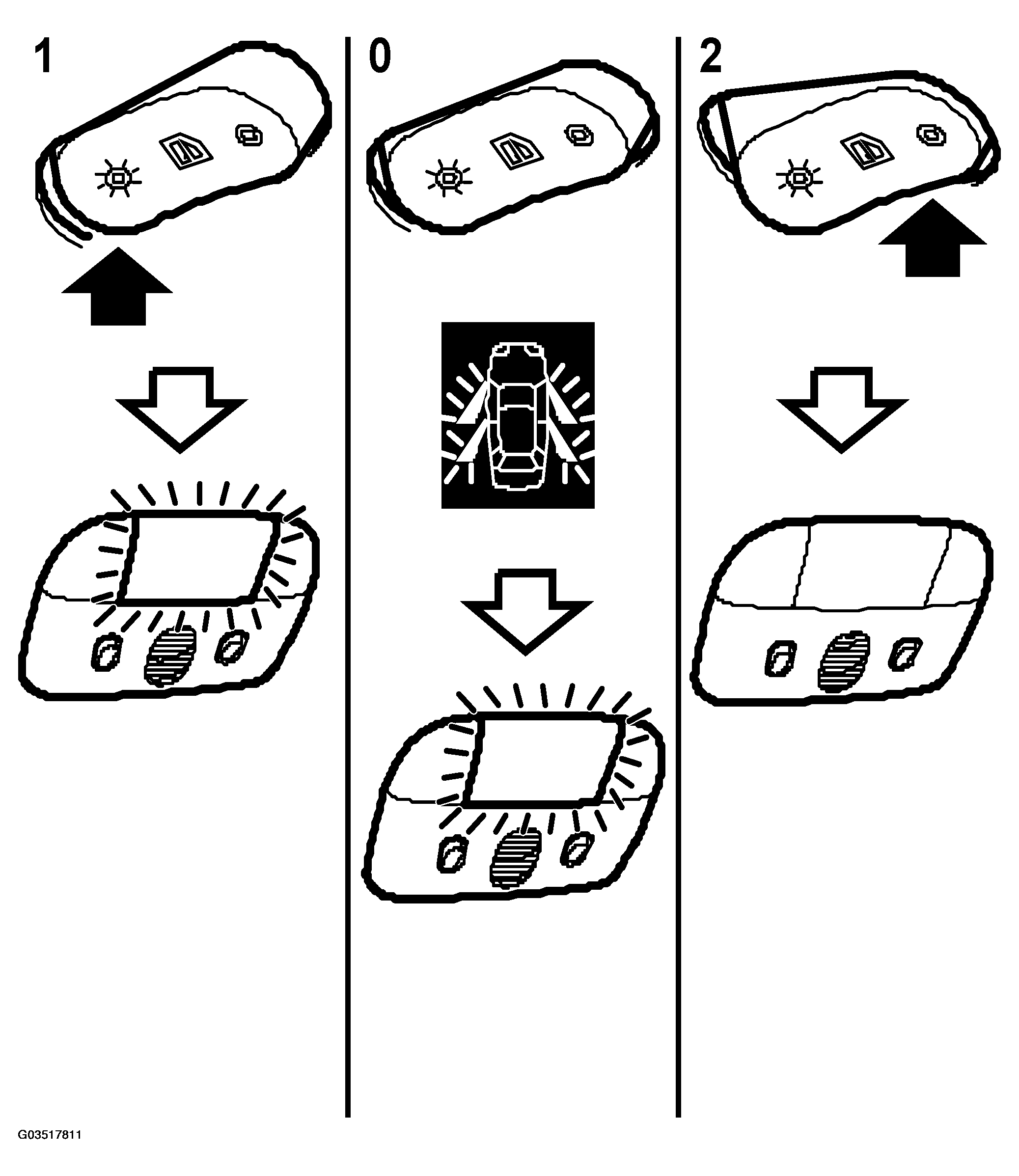

Fig 1: Identifying Communication Flow - Interior Lighting (Manual)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

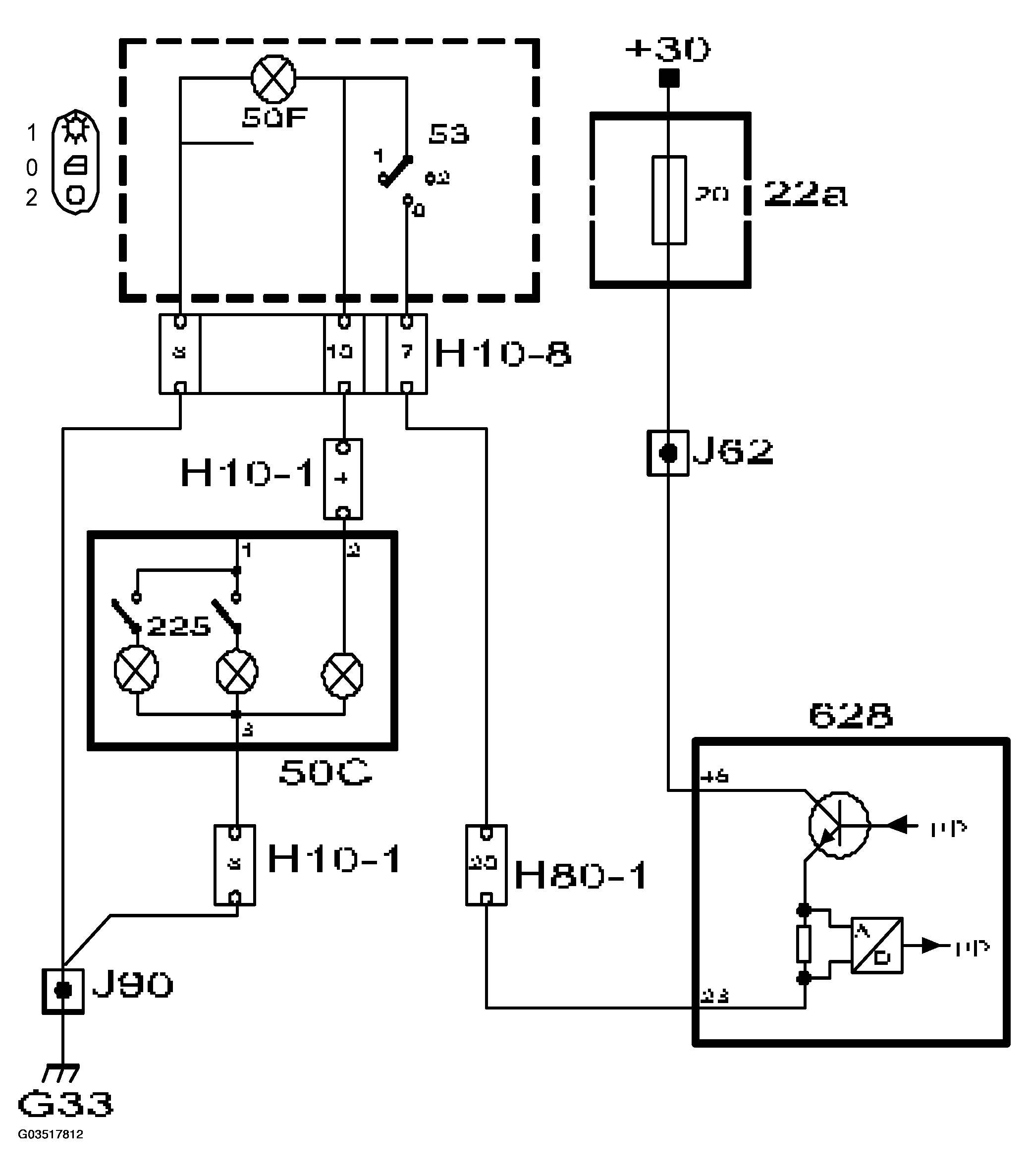

Fig 2: Interior Lighting (Manual) Circuit Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.
