To remove

  1. Pull out the steering wheel to its outermost position.
  2. Remove the steering column bearing bracket cowls (3 screws).
  3. Pull out the stalk switch (2 clips).

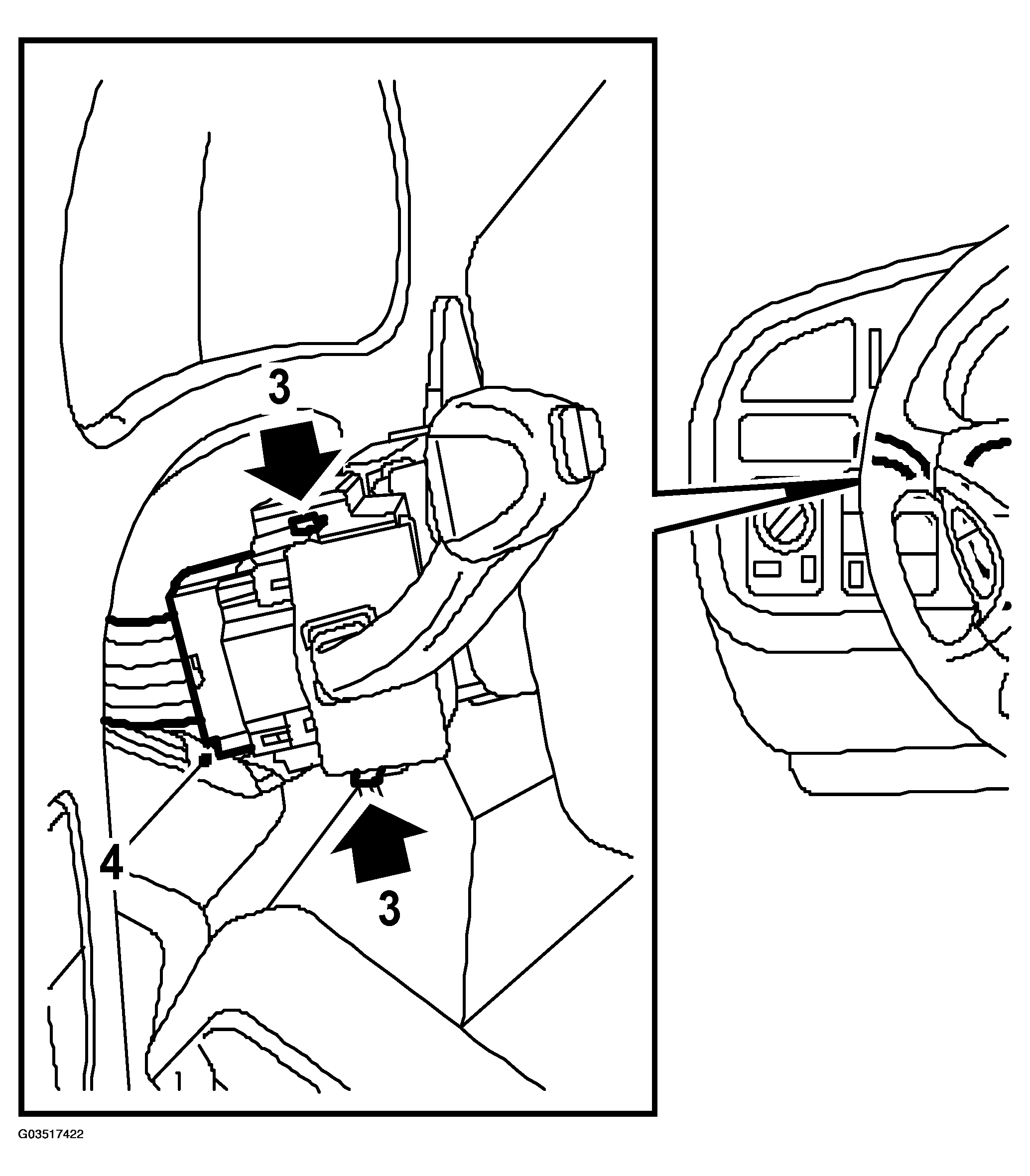

    Fig 1: Illustration For Step 3
    G03517422Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Unplug the 10-pin connector.
