Control Module Inputs

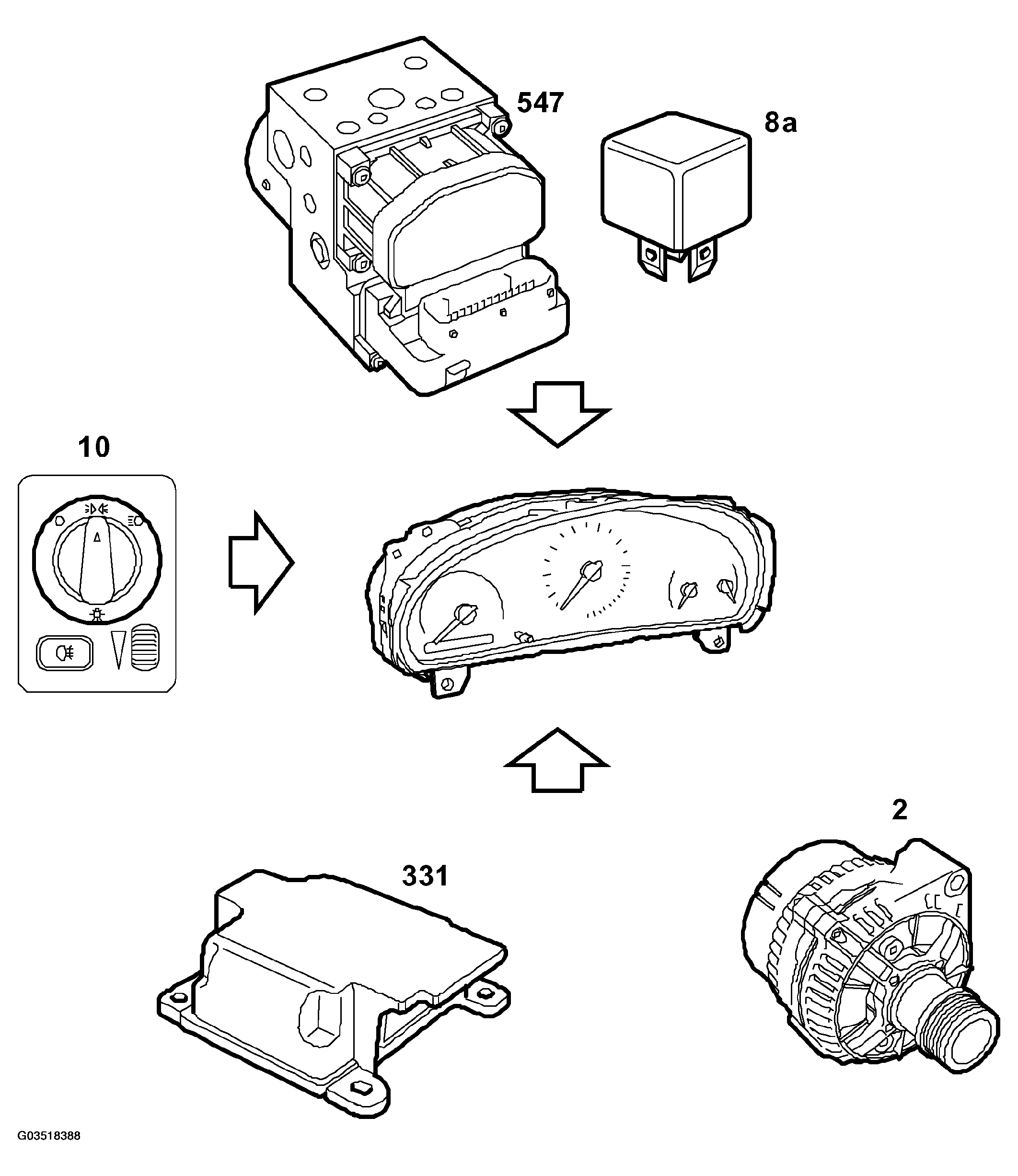

Fig 1: Identifying Components Control Module Inputs
G03518388Courtesy of SAAB-SCANIA OF AMERICA, INC.

Speed signal from ABS (547) SPEEDOMETER WITH ODOMETER AND TRIP METER.

ABS warning light (ANTILOCK) from ABS (547) SPEEDOMETER WITH ODOMETER AND TRIP METER.

Warning lamp, AIRBAG from SRS/Airbag (331) WARNING AND INDICATOR LAMPS

Warning lamp, charging (2) WARNING AND INDICATOR LAMPS

Lights-on indicator lamp from lights switch (10) WARNING AND INDICATOR LAMPS

Main beam indicator lamp from main headlamp relay (8a) WARNING AND INDICATOR LAMPS

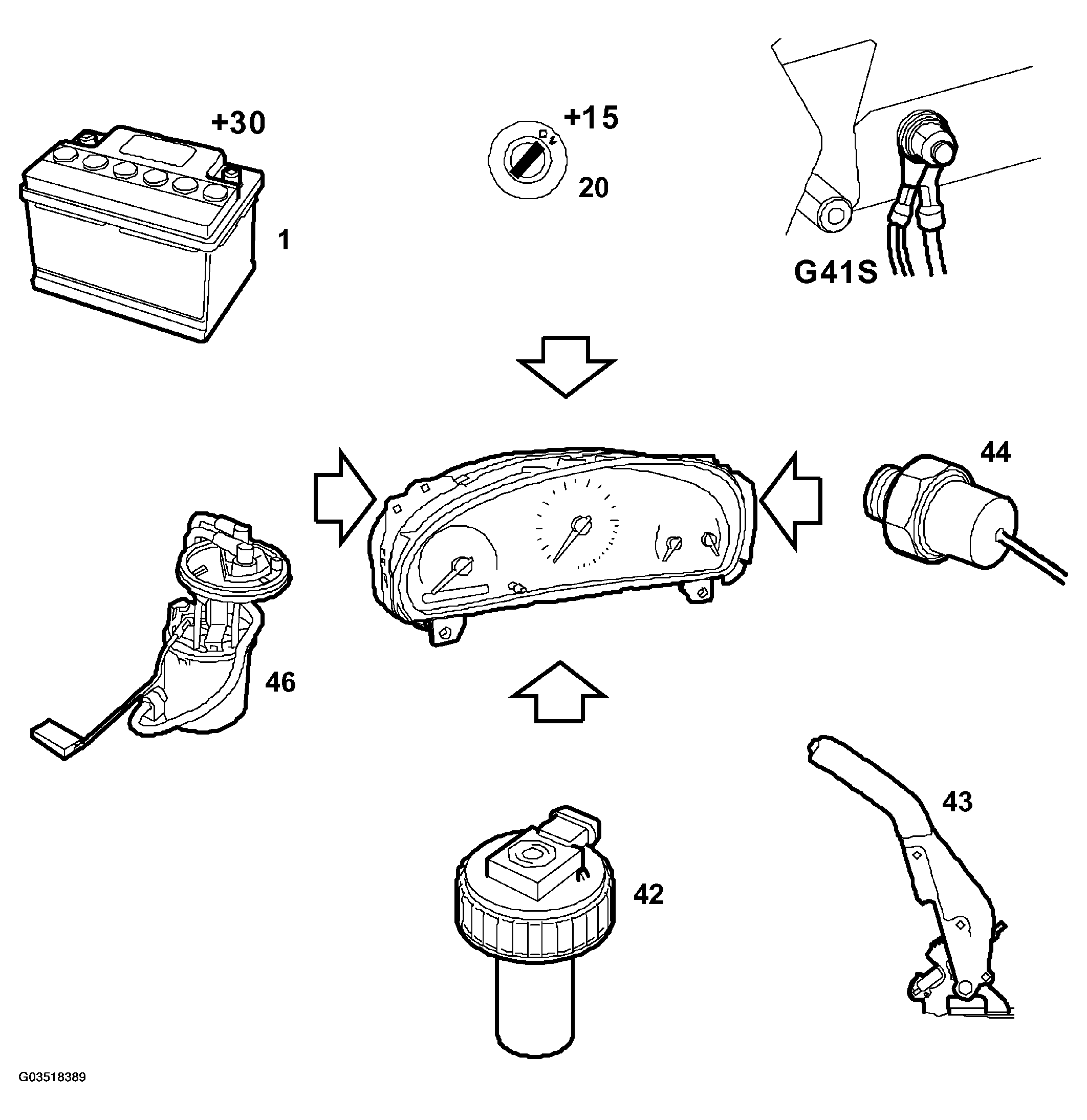

Fig 2: Identifying Components Control Module Inputs
G03518389Courtesy of SAAB-SCANIA OF AMERICA, INC.

Battery Voltage (+30) (1) POWER SUPPLY

Battery Voltage (+15) (20) POWER SUPPLY

Ground connection (G41S) GROUND

Oil pressure warning lamp from oil pressure sensor (44) WARNING AND INDICATOR LAMPS

Brake fluid level warning lamp from brake fluid reservoir (42) WARNING AND INDICATOR LAMPS

Warning lamp, handbrake (43) WARNING AND INDICATOR LAMPS

Fuel level from fuel level sensor (46) FUEL GAUGE

Low fuel level indicator lamp (46) WARNING AND INDICATOR LAMPS
