Control Module Inputs, Bus

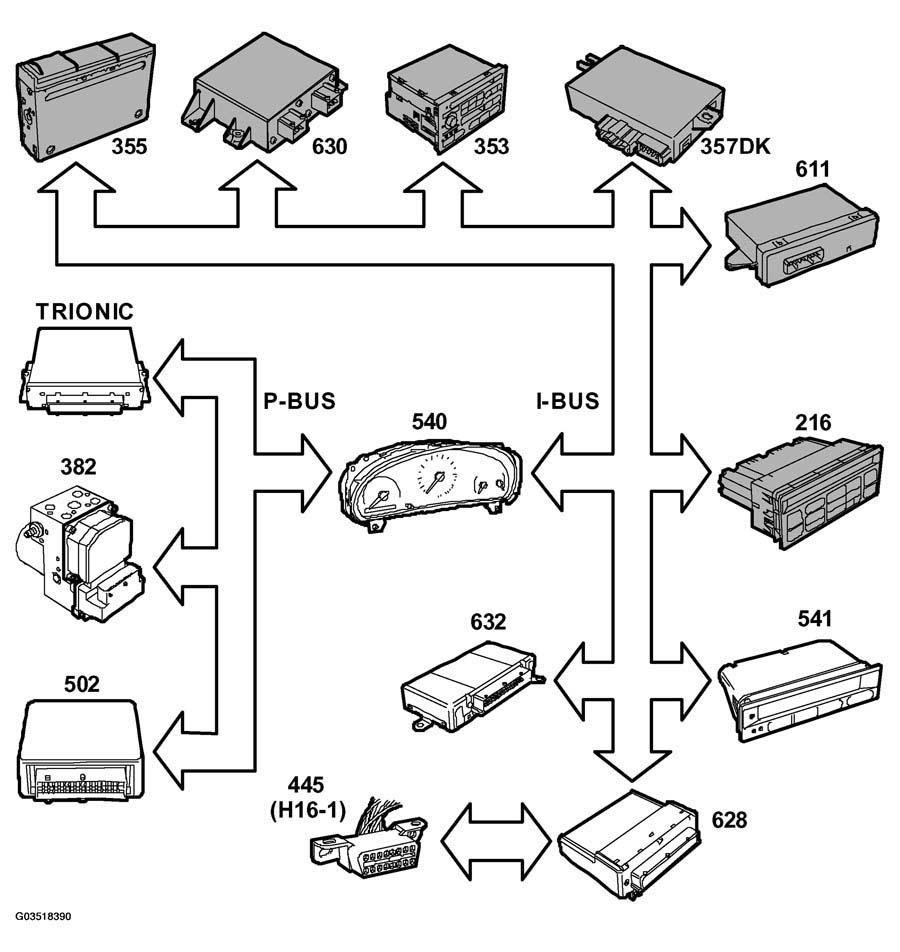

Fig 1: Identifying Components Control Module Inputs, Bus

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Engine speed data from Trionic TACHOMETER

Coolant temperature data from Trionic COOLANT TEMPERATURE

Fuel Consumed Since Start from Trionic FUEL GAUGE

Rheostat Night Panel from SID (541) NIGHT PANEL

NIGHT PANEL from SID (541) NIGHT PANEL

Display illumination value from SID (541) INSTRUMENT AND DISPLAY LIGHTING

Light intensity in cabin from SID (541) INSTRUMENT AND DISPLAY LIGHTING

INFO DISPL indicator lamp from SID (541) WARNING AND INDICATOR LAMPS

Steering wheel position from TWICE (632)

Selector lever position indicator from TCM (502) WARNING AND INDICATOR LAMPS

CHECK ENGINE indicator lamp from Trionic WARNING AND INDICATOR LAMPS

CHECK GEARBOX indicator lamp from TCM (502) WARNING AND INDICATOR LAMPS

SPORT indicator lamp from TCM (502) WARNING AND INDICATOR LAMPS

WINTER indicator lamp from TCM (502) WARNING AND INDICATOR LAMPS

"Door open" indicator lamp from TWICE (632) WARNING AND INDICATOR LAMPS

Indicator lamp for LH direction indicators from DICE (628) WARNING AND INDICATOR LAMPS

Indicator lamp for RH direction indicators from DICE (628) WARNING AND INDICATOR LAMPS

Rear fog light indicator lamp from DICE (628) WARNING AND INDICATOR LAMPS

CRUISE indicator lamp from Trionic WARNING AND INDICATOR LAMPS

Shift-up indicator lamp from Trionic WARNING AND INDICATOR LAMPS

ABS warning lamp from TC/ABS (382) WARNING AND INDICATOR LAMPS

TCS OFF indicator lamp from TC/ABS (382) WARNING AND INDICATOR LAMPS

TCS indicator lamp from TC/ABS (382) WARNING AND INDICATOR LAMPS
