Test Readings, Control Module Connections: Scope

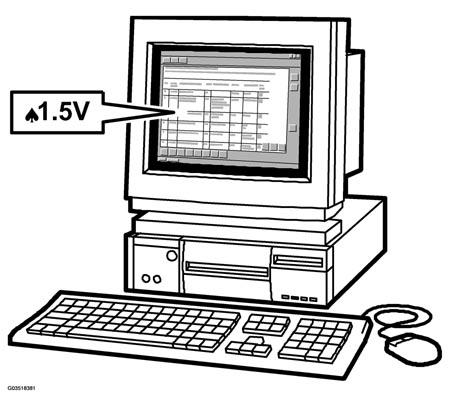

Fig 1: Identifying Scope
G03518381Courtesy of SAAB-SCANIA OF AMERICA, INC.

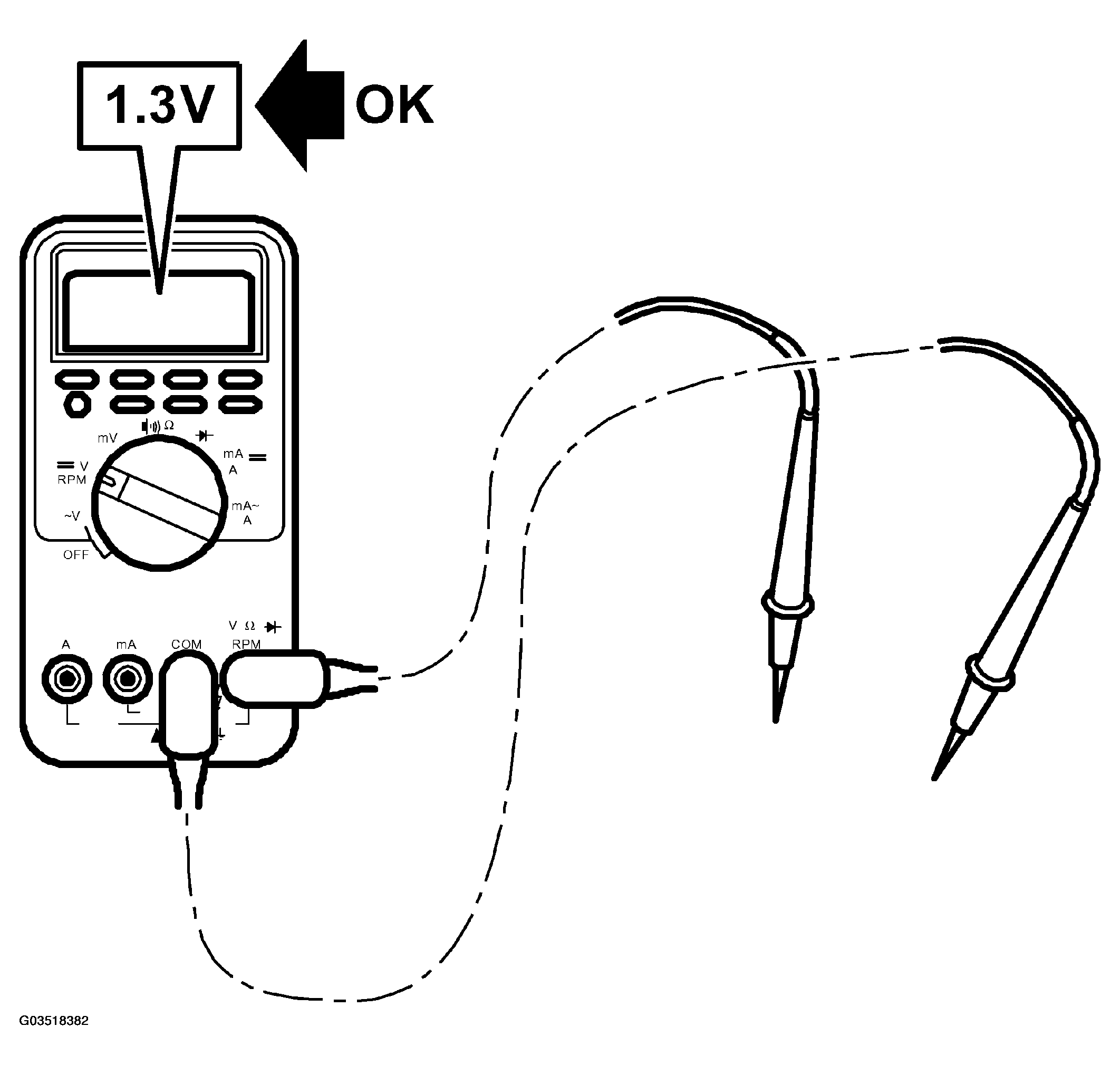

Fig 2: Identifying Multimeter
G03518382Courtesy of SAAB-SCANIA OF AMERICA, INC.

The following pages include values and directions for measuring signals and levels on the main instrument unit and its control module.
