Grounding Point G2: Notes

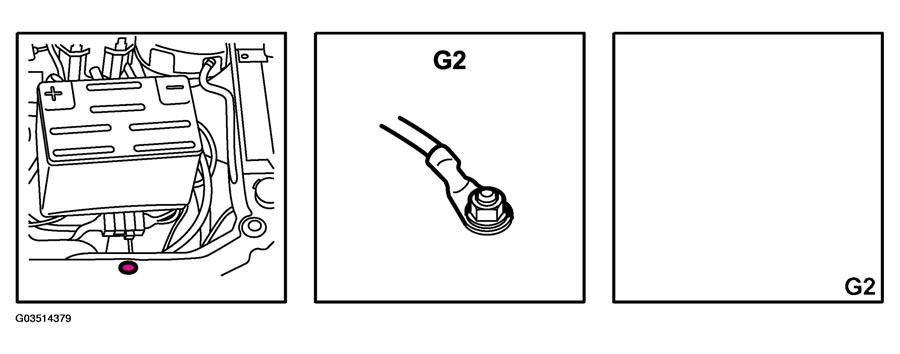

Fig 1: Identifying Grounding Point G2
G03514379Courtesy of SAAB-SCANIA OF AMERICA, INC.

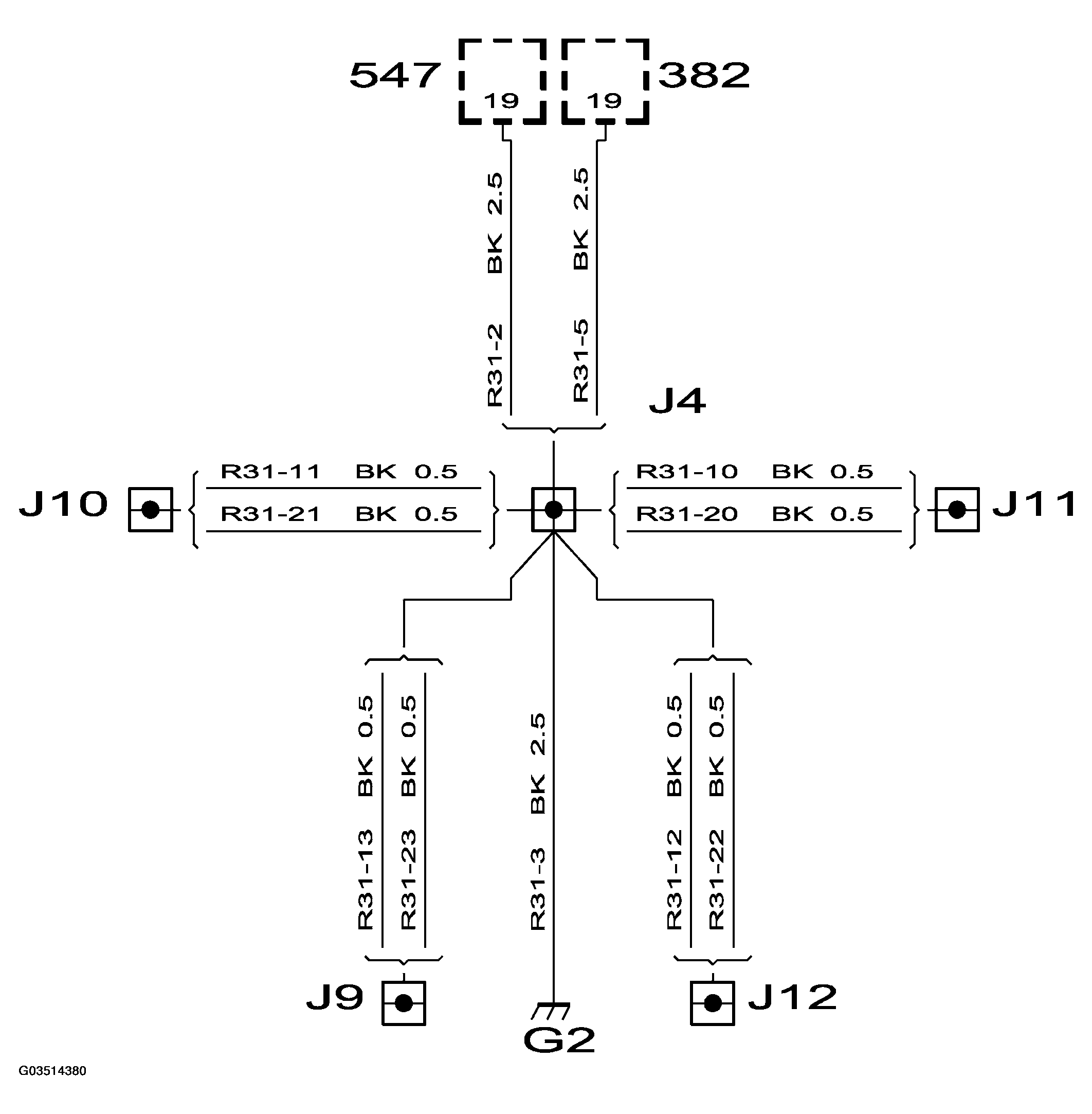

Fig 2: Grounding Point G2 - Circuit Diagram
G03514380Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  On the left-hand structural member behind the headlamp (battery ground).
