To remove

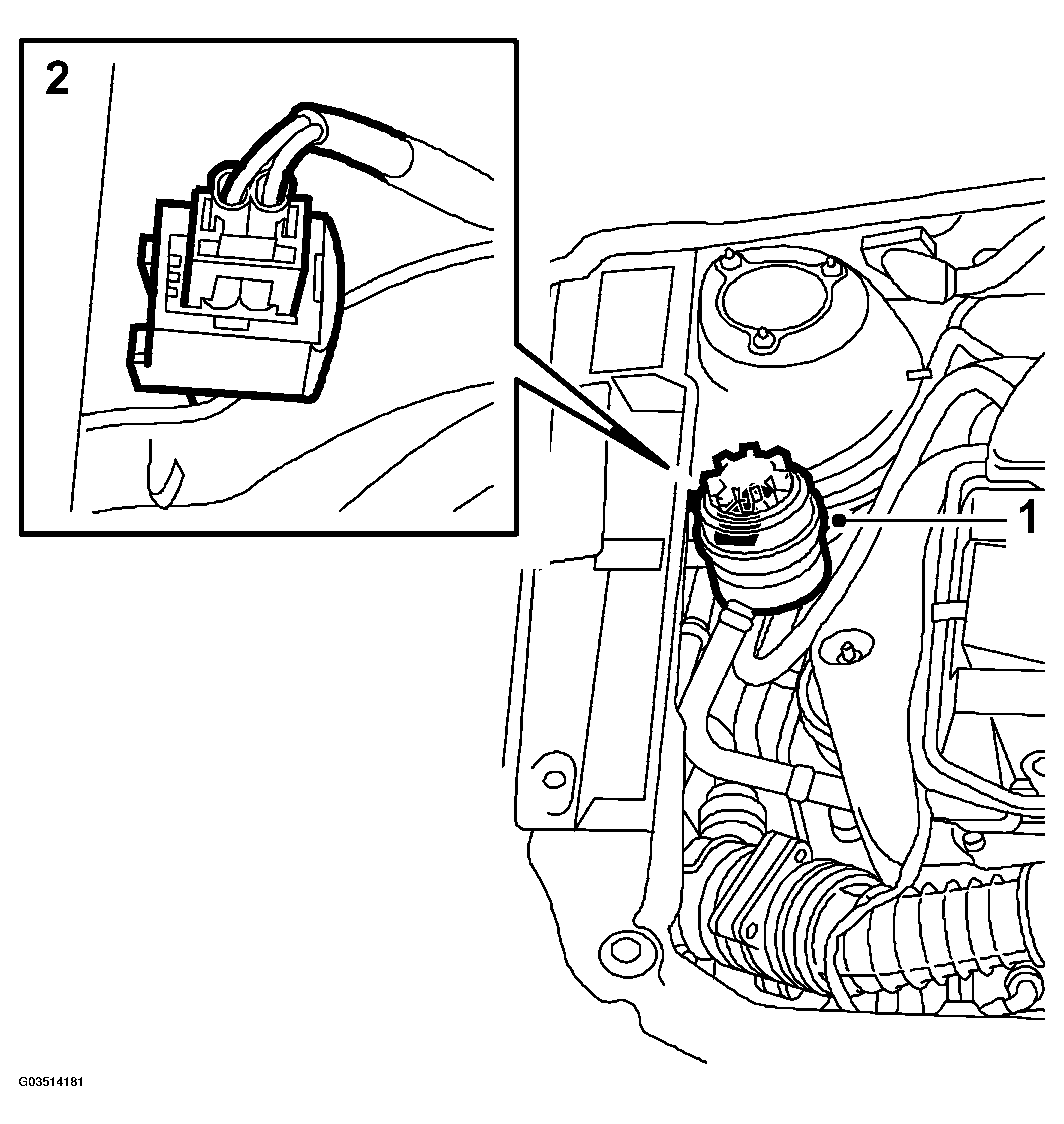

Fig 1: Illustration For Step 1-2
G03514181Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Depress the locking tab on the connector and remove it from the holder.
  2. Unplug the connector.
  3. Raise the car and remove the wheel.

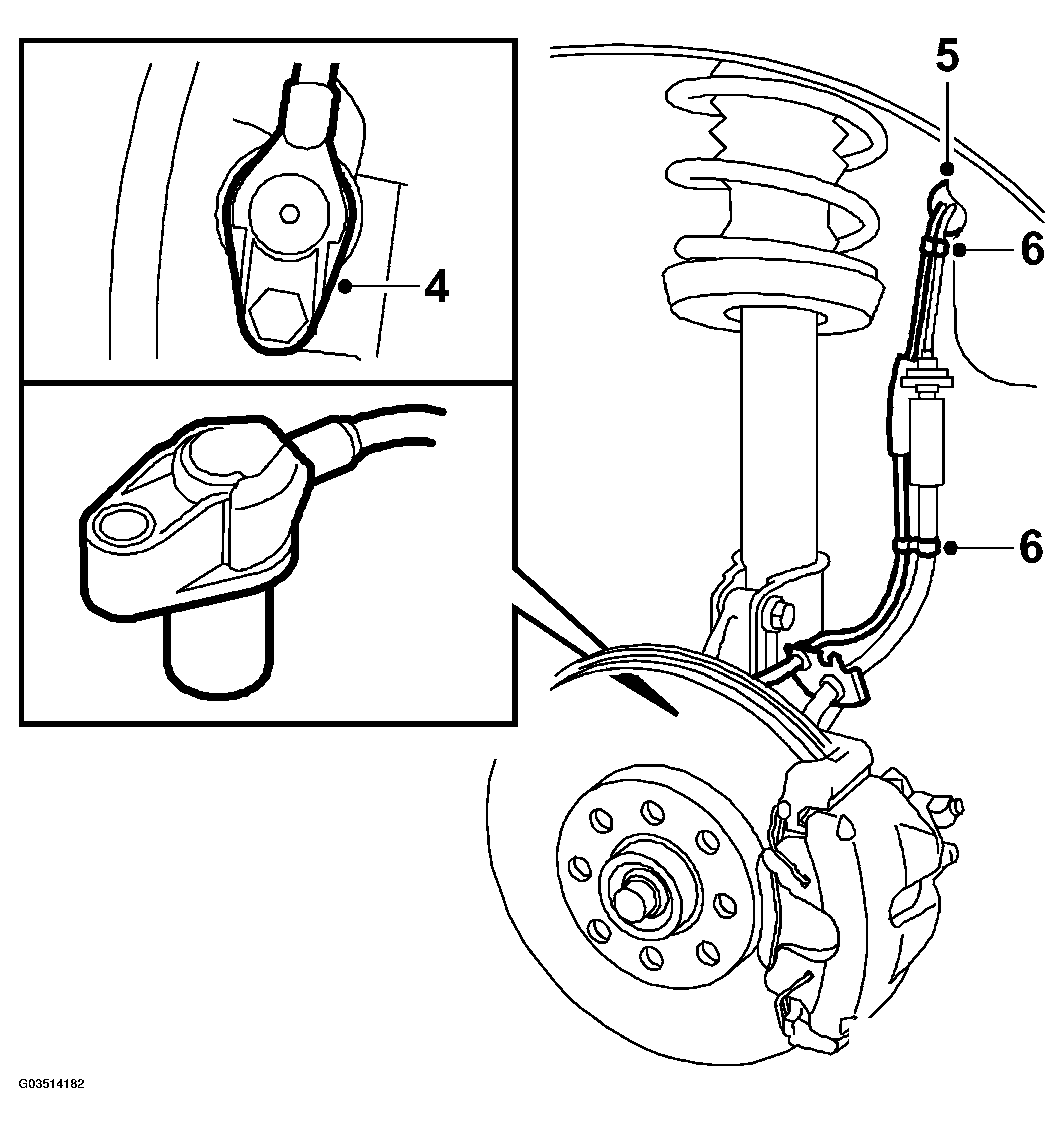

    Fig 2: Illustration For Step 4-6
    G03514182Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Clean the area round the wheel sensor using a soft wire brush.
  5. Remove the grommet and withdraw the lead.
  6. Detach the lead from the clips and lift out the sensor.
