Grounding Point G3: Notes

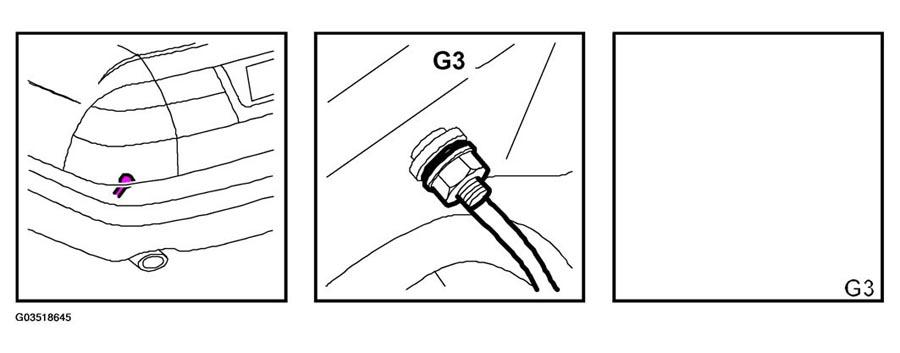

Fig 1: Identifying Grounding Point G3
G03518645Courtesy of SAAB-SCANIA OF AMERICA, INC.

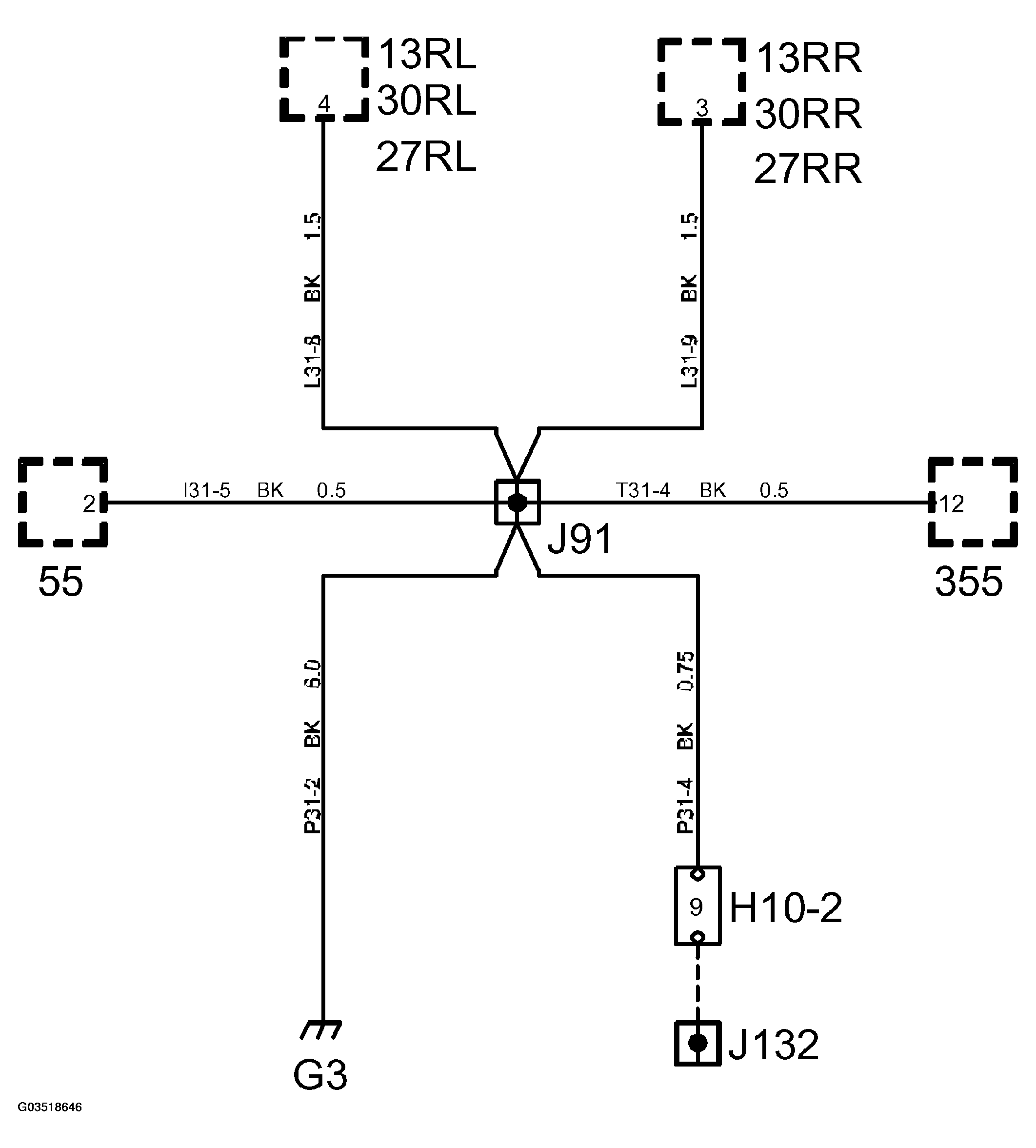

Fig 2: Circuit Diagram - Grounding Point G3
G03518646Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location  : In luggage compartment under LH light cluster.
