Charge Air Control Valve: Removal

    NOTE: For 9-5 models, you may need to remove a rubber cap first.
  1. Unplug the connector. See Fig 1 .
  2. Mark the hoses to the control valve and detach them.
  3. Detach the valve from the expanding pin and metal bracket.

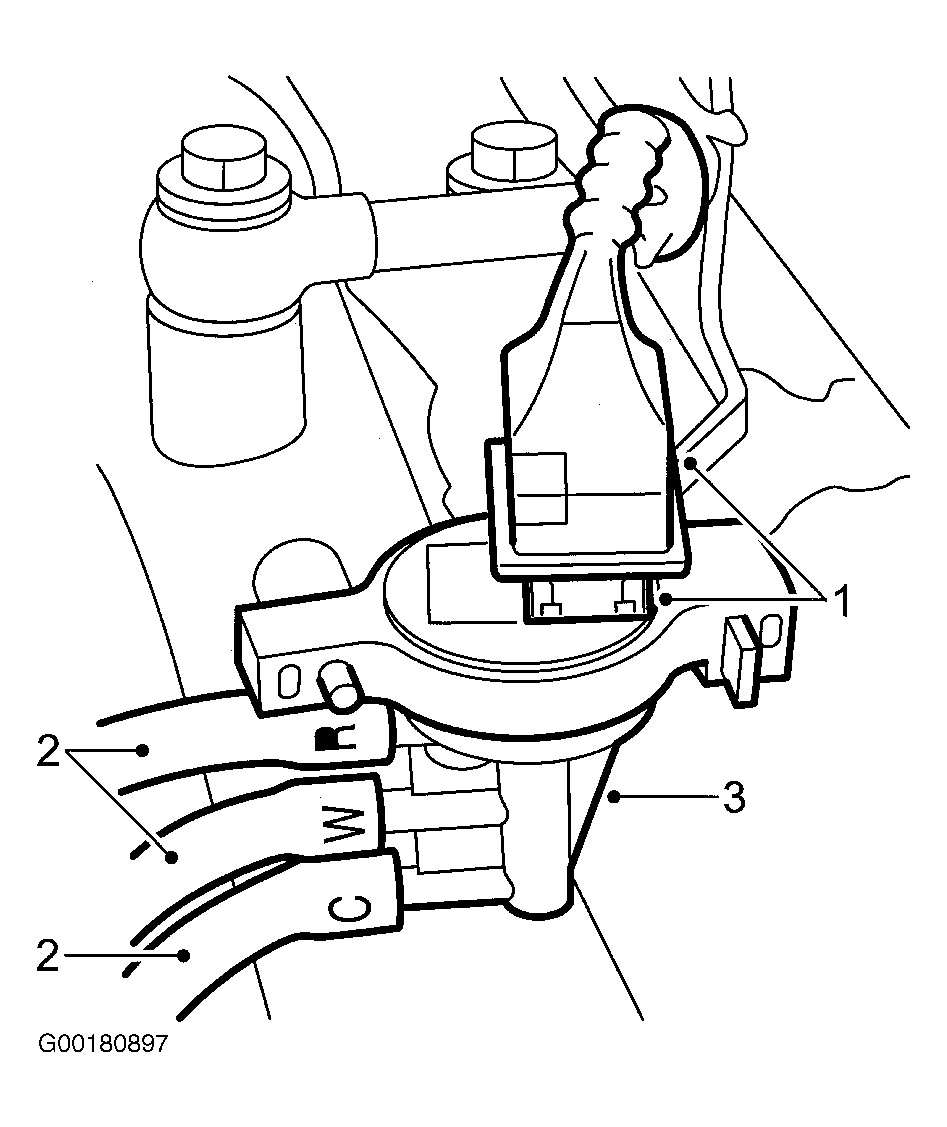

Fig 1: Removing Charge Air Control Valve
G00180897Courtesy of SAAB-SCANIA OF AMERICA, INC.
