Control module ground

The control module is grounded via pin 19 to grounding point G30.

The pump motor is grounded through pin 16 to grounding point G2.

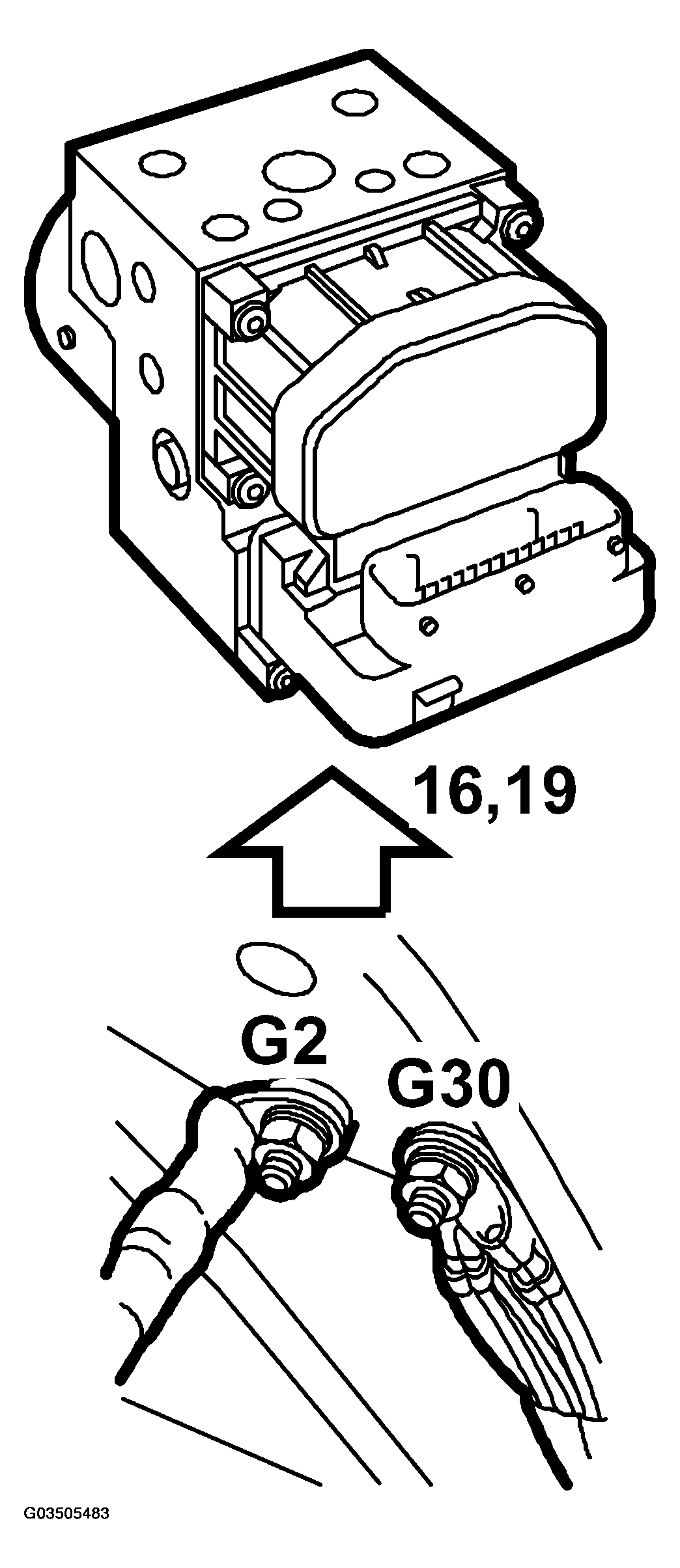

Fig 1: Control Module Ground Communication Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

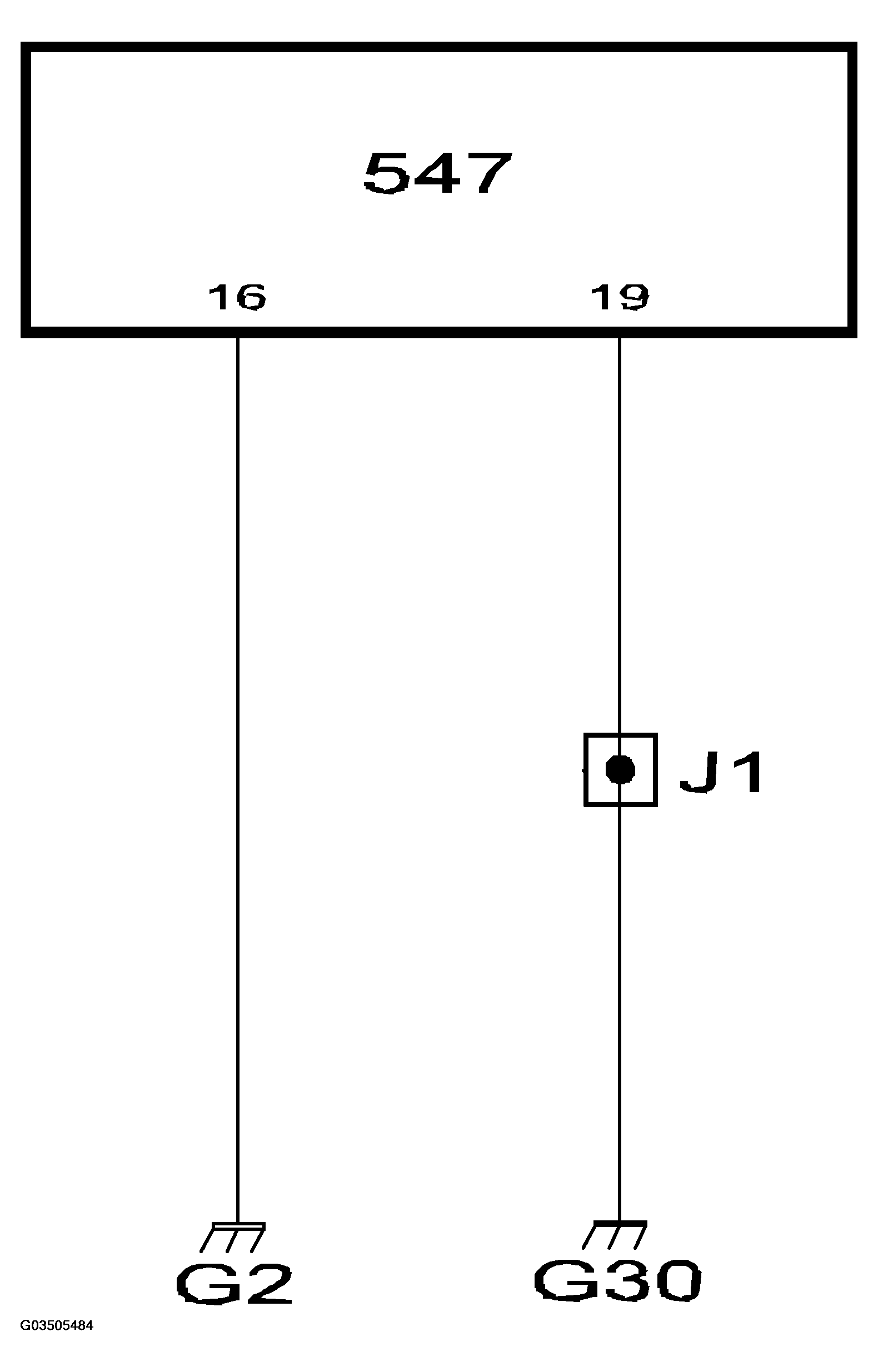

Fig 2: Control Module Ground Circuit Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.
