Home >> Saab >> 2001 >> 9-3 SE, 2D Convertible, Standard >> Repair and Diagnosis >> Body & Frame >> Windows >> Glass, Windows And Mirrors >> Component Location >> Control module, DICE (628) >> RHD

Control module, DICE (628): RHD

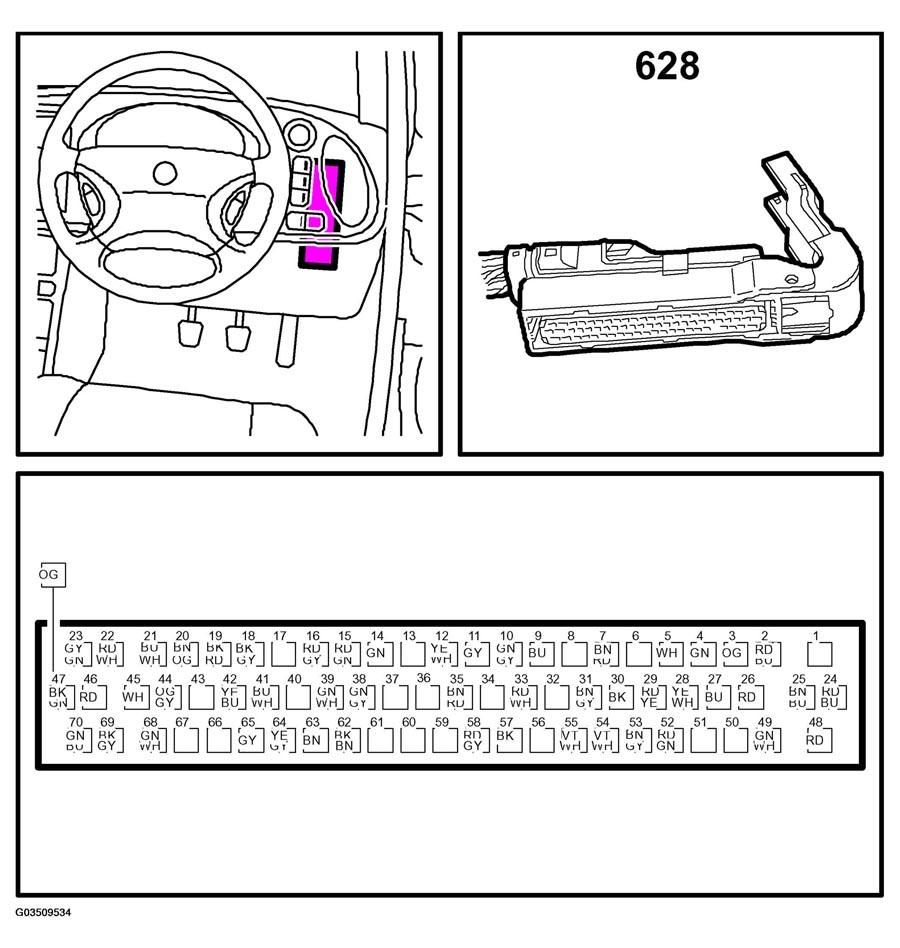

Fig 1: Identifying Control Module, DICE (628) - RHD - Connector Pinout

G03509534

Courtesy of SAAB-SCANIA OF AMERICA, INC.
